Modulo ricetrasmettitore SFP+ BlueOptics TN-10GSFP-SRM-BO 10000 Mbit/s

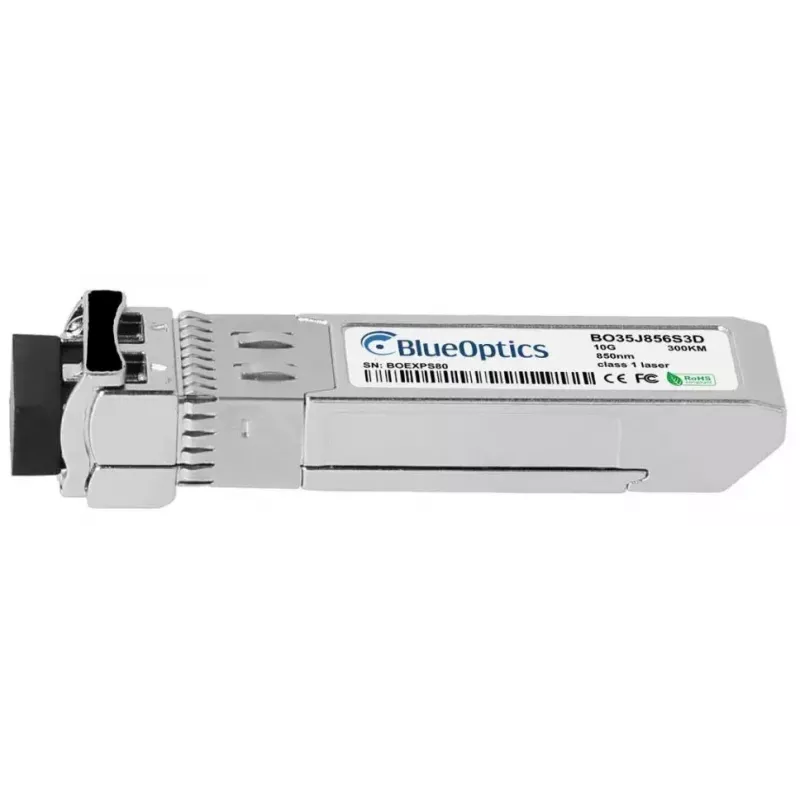

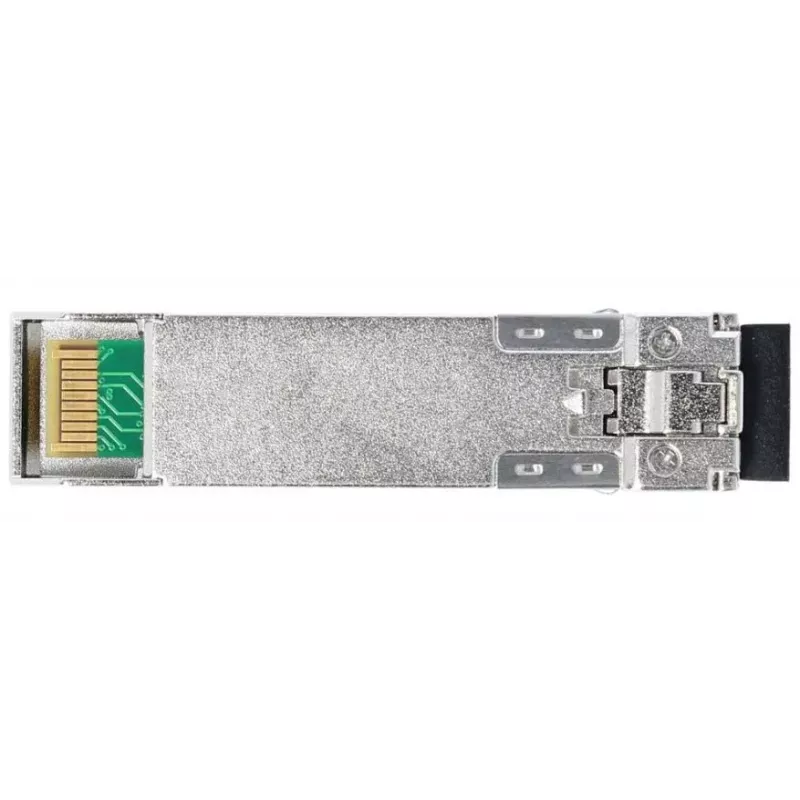

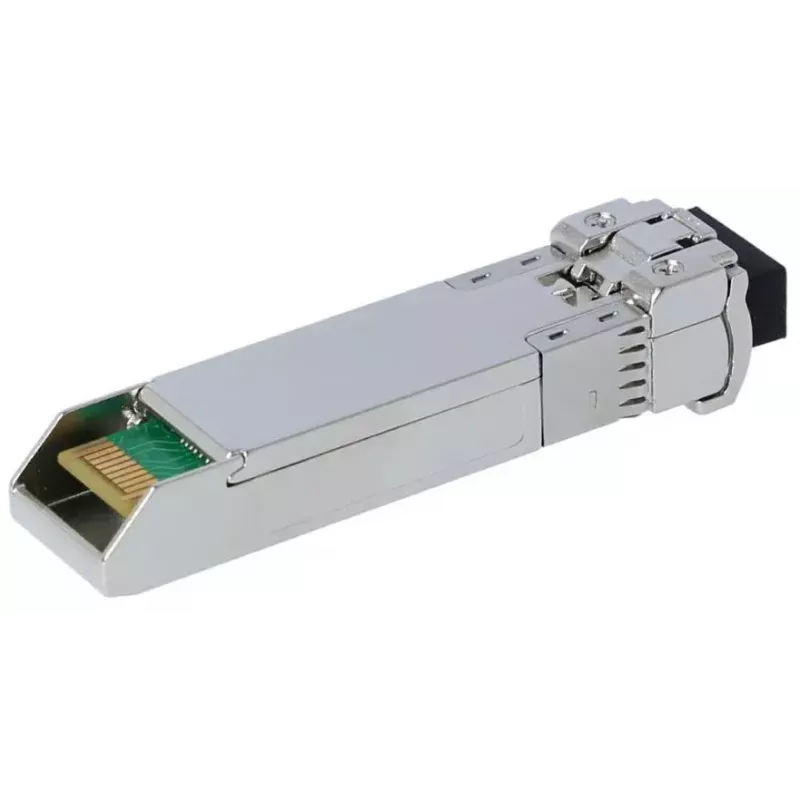

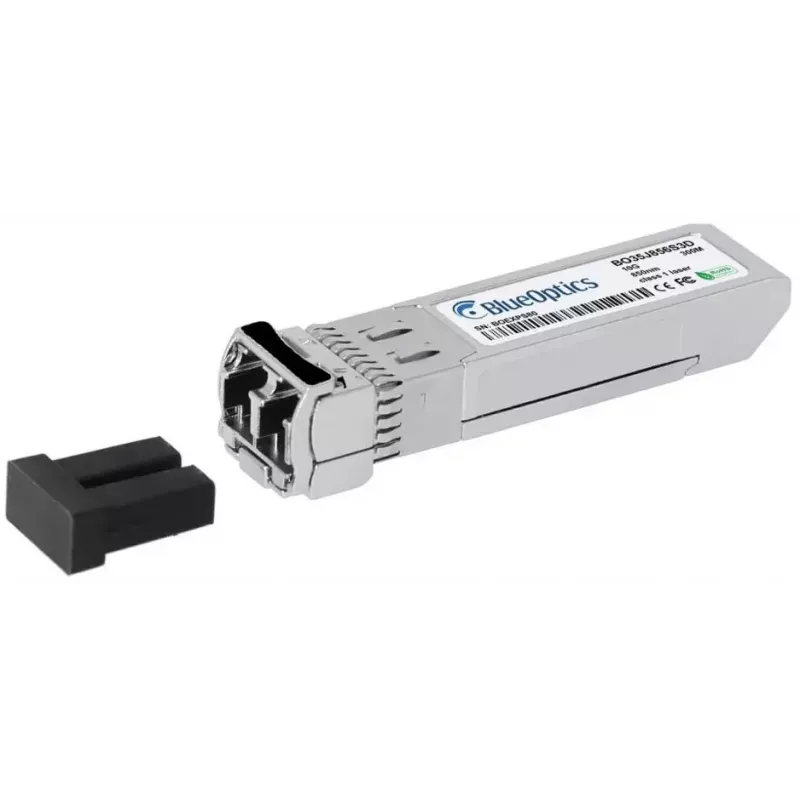

The BlueOptics TN-10GSFP-SRM-BO is an SFP+ fiber optic transceiver module designed for 10G networking links. It supports a maximum data transfer rate of 10000 Mbit/s and uses an LC duplex interface for multimode fiber connections. The module has a durable metal housing, a compact lightweight design (approximately 20 g) and an MTBF rating of 1,000,000 hours, making it suitable for high-availability network environments where space and reliability are important.

Advantages

The module conforms to SFP+ MSA mechanical and electrical specifications and supports 10GBASE-SR multimode optical transmission with 850 nm TX/RX wavelengths. Its metal enclosure provides mechanical protection and EMI shielding, while the low weight and standard SFP+ form factor enable easy hot-plug installation in compatible switches, routers and storage interfaces. Built-in digital diagnostics (DDM/DOM) support allows monitoring of supply voltage, temperature, laser bias, and optical power when supported by host hardware.

Suitable for

Key specifications

How to use

Install the transceiver into any compatible SFP+ port by gently inserting the module into the port until it clicks; ensure the host device is powered and supports third-party SFP+ modules. Connect LC duplex multimode fiber patch cords to the TX and RX ports, observing correct polarity. Configure the host interface for 10G operation according to the switch or router documentation. If DDM/DOM monitoring is needed, enable and read the diagnostics through the host management interface, provided the host supports these features.

Recommendations

Use OM3/OM4 multimode fiber and LC duplex patch cords for optimal short-range 10G performance, verify host compatibility for SFP+ third-party modules, and follow ESD precautions when handling the module. Keep dust caps on the optical ports when the transceiver is not connected and perform attenuation and link testing after installation to confirm signal quality.
