Modulo ricetrasmettitore SFP BlueOptics TOM-1G-LX-BO 1250 Mbit/s

The BlueOptics TOM-1G-LX-BO is an SFP fiber optic transceiver module designed for single-mode optical links with a maximum data transfer rate of 1250 Mbit/s. The module is housed in a durable metal enclosure finished in silver and weighs approximately 20 g. It is built to industry MSA form-factor standards and provides a reliable optical interface suitable for use in compatible network hardware.

Advantages

The module offers a compact SFP form factor that enables hot-pluggable installation in switches, routers and other network equipment that accept standard SFP transceivers. Its metal housing provides mechanical protection and thermal stability, while an MTBF rating of 1,000,000 hours indicates a design aimed at long-term availability and low maintenance. The BlueOptics TOM-1G-LX-BO supports common Ethernet and high-speed optical applications at up to 1.25 Gbit/s over single-mode fiber when used with appropriate cabling and interfaces.

Suitable for

Key specifications

How to use

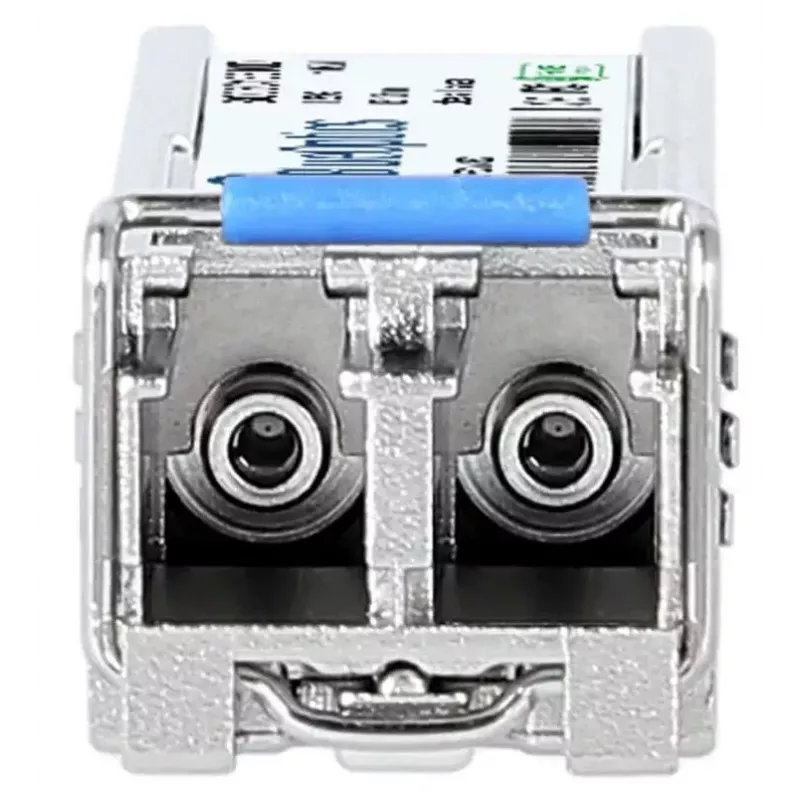

Install the BlueOptics TOM-1G-LX-BO into a compatible SFP slot while the host device is powered according to the equipment manufacturer’s guidelines, or follow hot-plug procedures supported by the hardware. Connect LC duplex single-mode patch cords to the module’s connector, ensuring correct transmit/receive orientation. Configure the host interface for the required protocol and link speed; the transceiver will present a standard SFP optical interface to the host. Verify link status and operational parameters through the host system management tools or Digital Diagnostics if supported by the host.

Recommendations

Use high-quality single-mode LC duplex patch cords and adhere to bend-radius and cleanliness best practices for fiber connectors to ensure optimal link performance. Confirm that the target network hardware supports the module’s SFP form factor and the intended optical functions before deployment.
