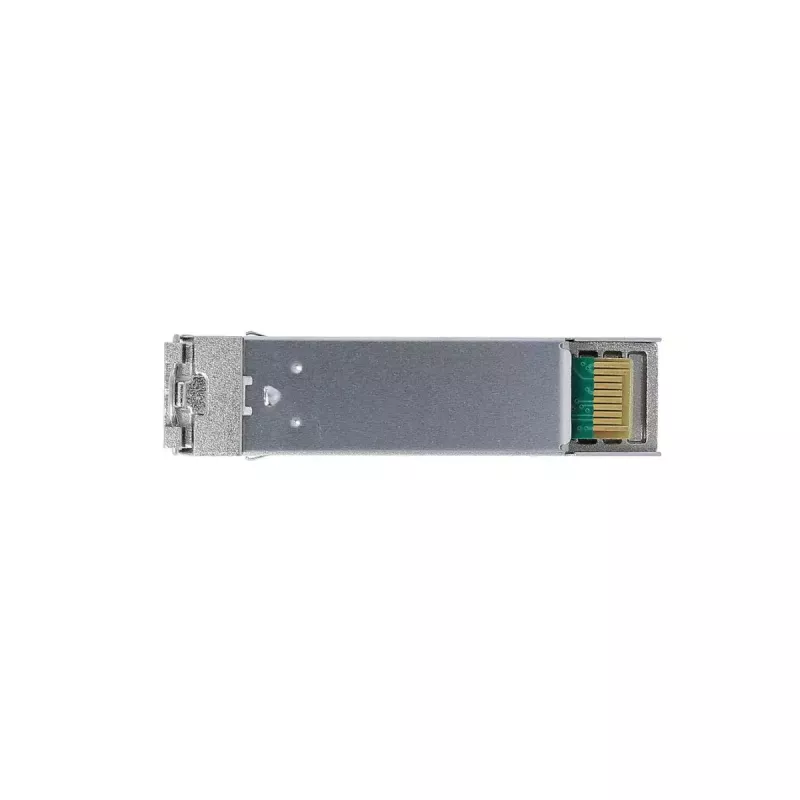

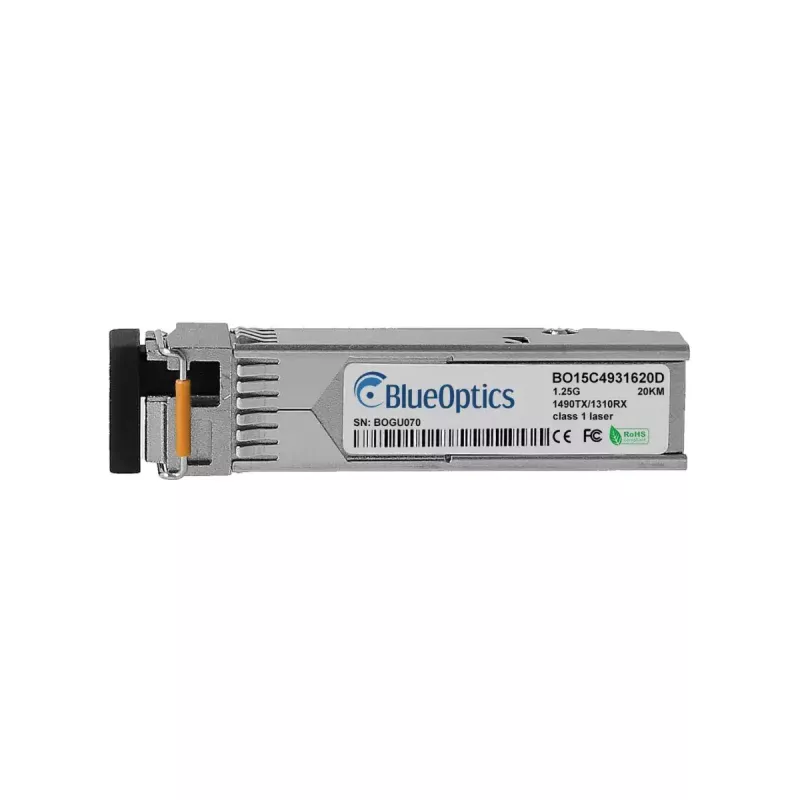

Modulo ricetrasmettitore SFP BlueOptics TRBUG1CBBC000E2G-BO 1250 Mbit/s 1490 nm

The BlueOptics TRBUG1CBBC000E2G-BO SFP transceiver module is designed for fiber optic point-to-point links and equipment ports that require a compact optical interface. It supports a maximum data transfer rate of 1250 Mbit/s and transmits at a wavelength of 1490 nm. The module uses an LC connector, comes in a metal housing finished in silver, and has a lightweight design of approximately 20 g. With an optical reach of up to 20,000 m, it is suitable for a variety of access and distribution network deployments.

Advantages

The module's compact SFP form factor allows easy hot-swappable installation in compatible network devices without interrupting system operation. The metal casing provides mechanical protection and thermal dissipation, while the LC connector ensures a standardized optical interface. Support for a 1250 Mbit/s data rate and 1490 nm wavelength makes this transceiver appropriate for many single-mode fiber applications requiring moderate bandwidth and long reach.

Suitable for

Key specifications

How to use

Insert the SFP transceiver into a compatible SFP slot on a switch, router or media converter until it clicks into place. Connect a single-mode fiber cable with LC connectors to the transceiver, observing correct transmit/receive orientation. Ensure the host device is powered and configured for the required data rate and optical settings. To remove the module, disengage any securing latch and pull the transceiver straight out while the system is powered down or following the host device's hot-swap instructions.

Recommendations

Use clean, undamaged single-mode fiber and perform connector cleaning before mating. Verify compatibility with the host device’s SFP specifications and configure link parameters as needed. For reliable long-distance operation, use appropriate fiber infrastructure and verify signal levels during commissioning.
