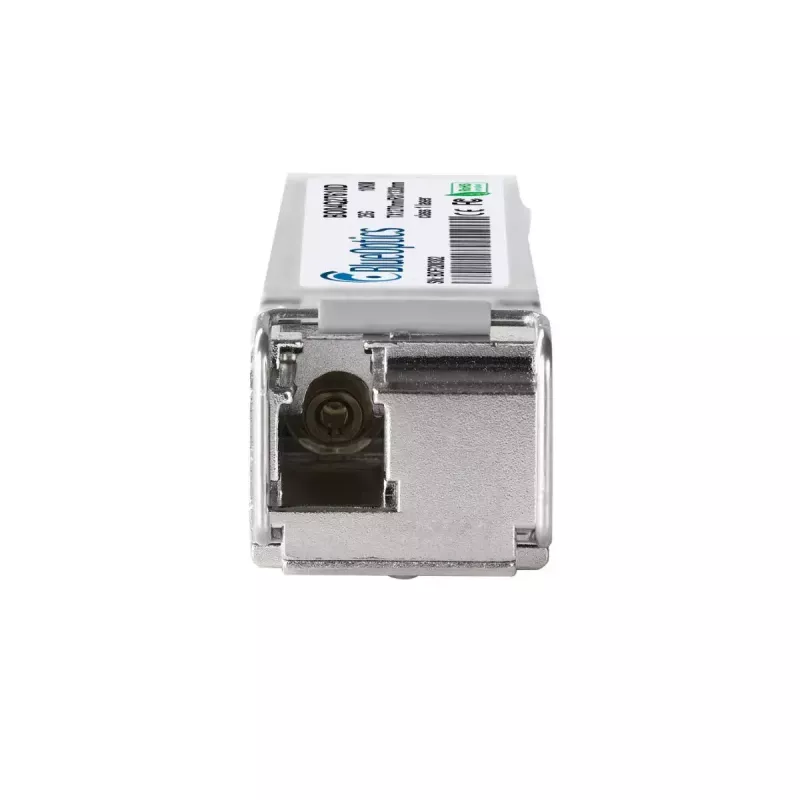

Modulo ricetrasmettitore SFP28 BlueOptics BO04Q27610D-BO 25000 Mbit/s

The BlueOptics BO04Q27610D-BO SFP28 transceiver module is a single-mode fiber optic module designed for high-speed data communication at up to 25,000 Mbit/s. Housed in a durable metal enclosure and weighing approximately 20 g, this SFP28 module follows MSA mechanical and electrical guidelines and provides support for LC Simplex connectivity. It is intended for use in networking equipment that accepts SFP28 form-factor transceivers and supports 25GBASE-BX-U links with reach up to 10 km when used with suitable single-mode fiber.

Advantages

This SFP28 transceiver delivers 25 Gbit/s performance in a compact, silver metal housing with an MTBF of around 1,000,000 hours, providing a balance of throughput and long operational life. The module supports Digital Diagnostics Monitoring (DDM/DOM) for real-time status of supply voltage, laser bias current, transmit power, receive power and temperature, simplifying remote monitoring and fault analysis. Compliance with common MSA standards ensures broad interoperability with switches, routers, storage systems and other network devices that accept SFP28 modules.

Suitable for

• 25G Ethernet links over single-mode fiber (up to 10 km)
• High-density switch and router uplinks supporting SFP28
• Data center interconnects and server-to-switch connections
• Storage area networks and Fibre Channel over Ethernet (FCoE) applications

Key specifications

• Interface type: SFP28 (25G form factor)
• Maximum data transfer rate: 25,000 Mbit/s
• Fiber type: single-mode fiber, LC Simplex connector
• Wavelengths: Bi-directional 1270 nm (RX) / 1330 nm (TX) suitable for BX-U operation
• Maximum reach: up to 10 km (with appropriate single-mode fiber)
• Digital Diagnostics Monitoring (DDM/DOM) support
• Housing: metal, silver color
• Weight: approx. 0.02 kg

How to use

Install the SFP28 module into the appropriate SFP28 port on a switch, router or host adapter while the device is powered according to your hardware vendor guidance. Connect an LC simplex single-mode patch cord between this transceiver and the remote transceiver or patch panel; for BX-U operation ensure correct pairing of transmit and receive wavelengths on each end. If your hardware supports Digital Diagnostics Monitoring, enable or query the DDM/DOM interface to monitor optical power levels, temperature and supply status. Verify link status and configure network settings on the connected devices as required by your network design.

Recommendations

Use high-quality single-mode fiber and LC simplex patch cords, maintain proper cleaning of optical connectors, and ensure the remote end uses a compatible 25GBASE-BX-U transceiver with matching wavelengths. Confirm that the host hardware supports SFP28 modules and DDM if remote diagnostics are required. For reliable long-term operation, follow vendor guidelines for insertion/removal and avoid exposing the transceiver to excessive mechanical stress or contamination.
