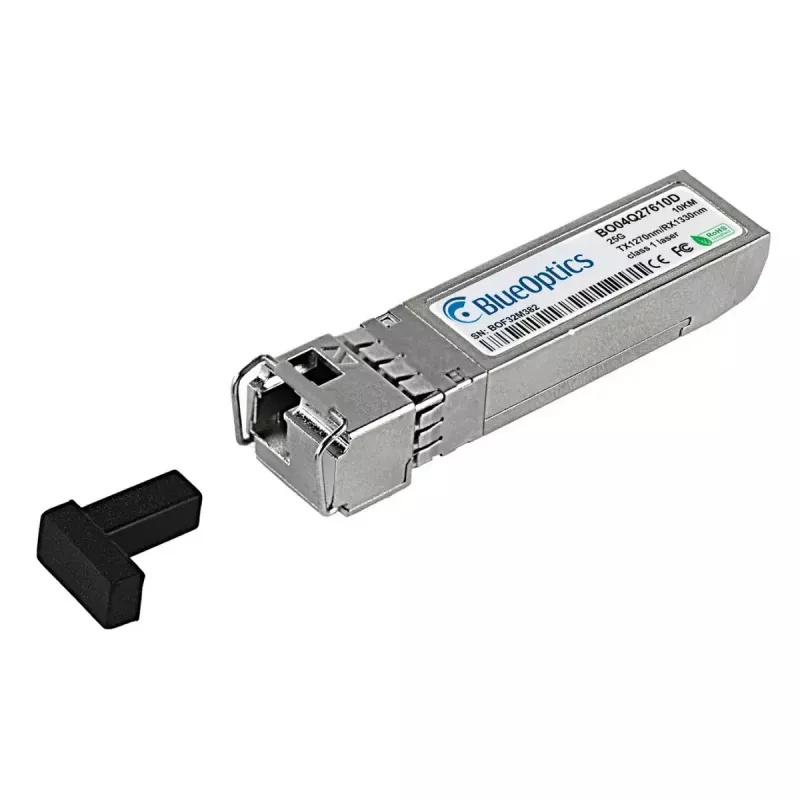

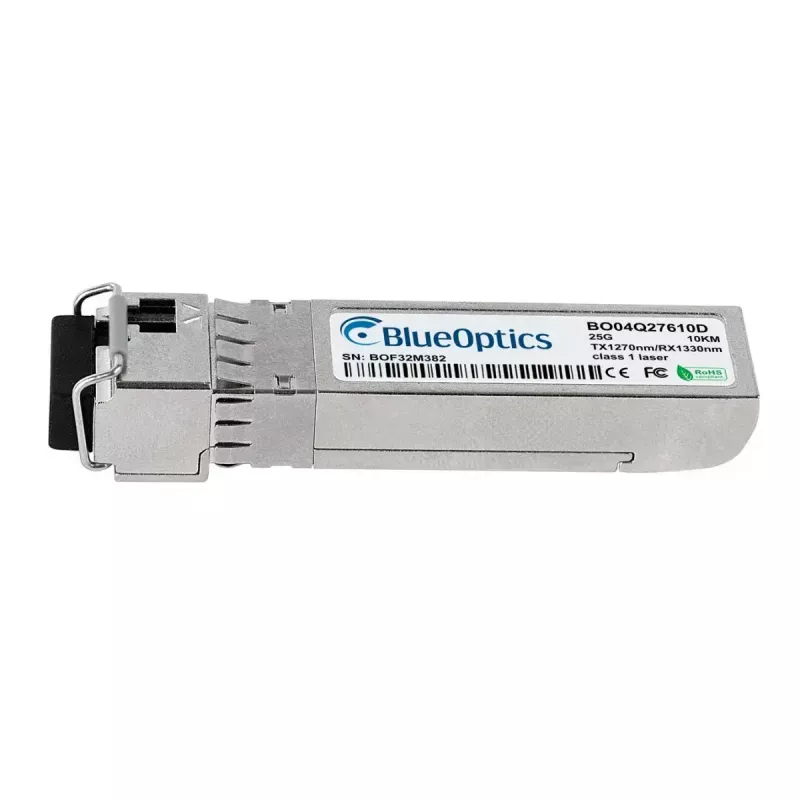

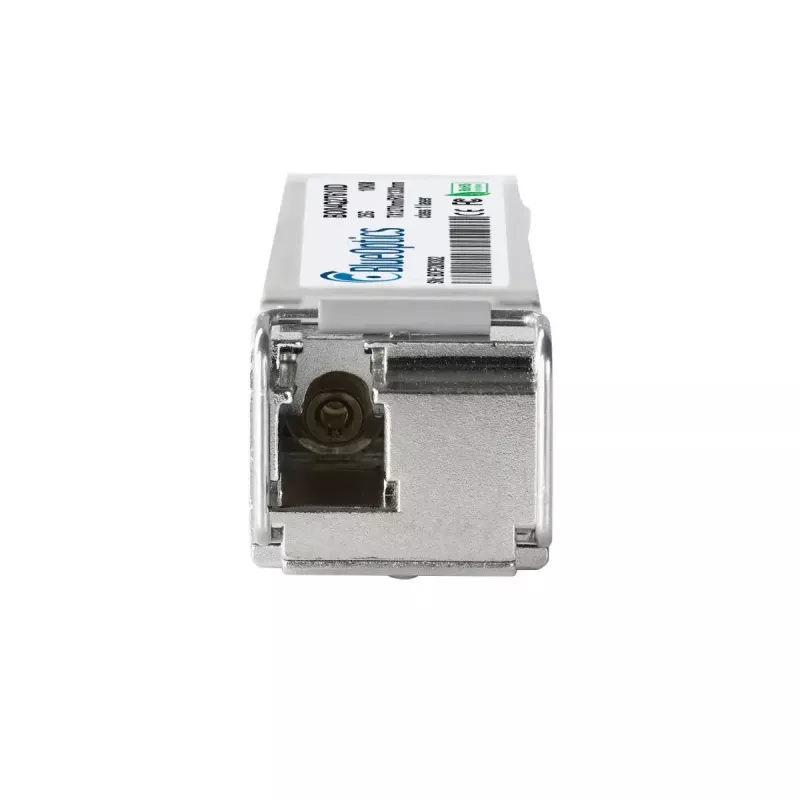

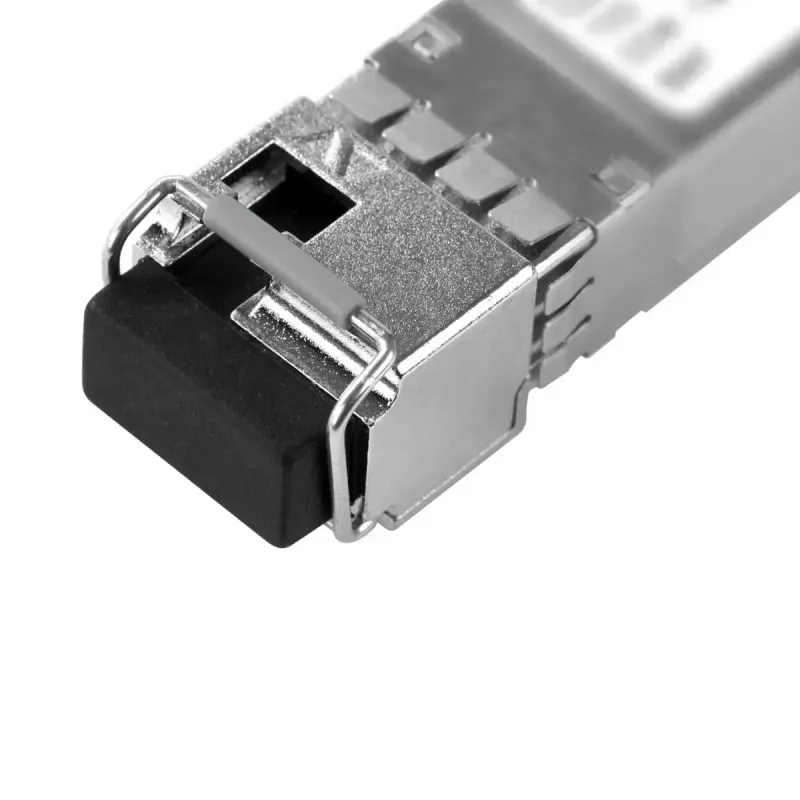

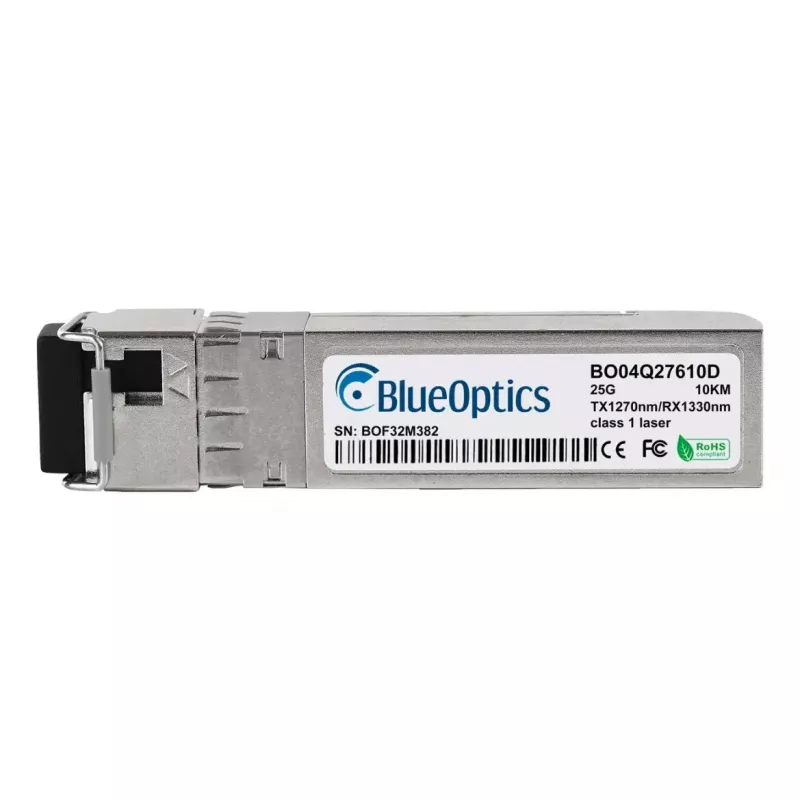

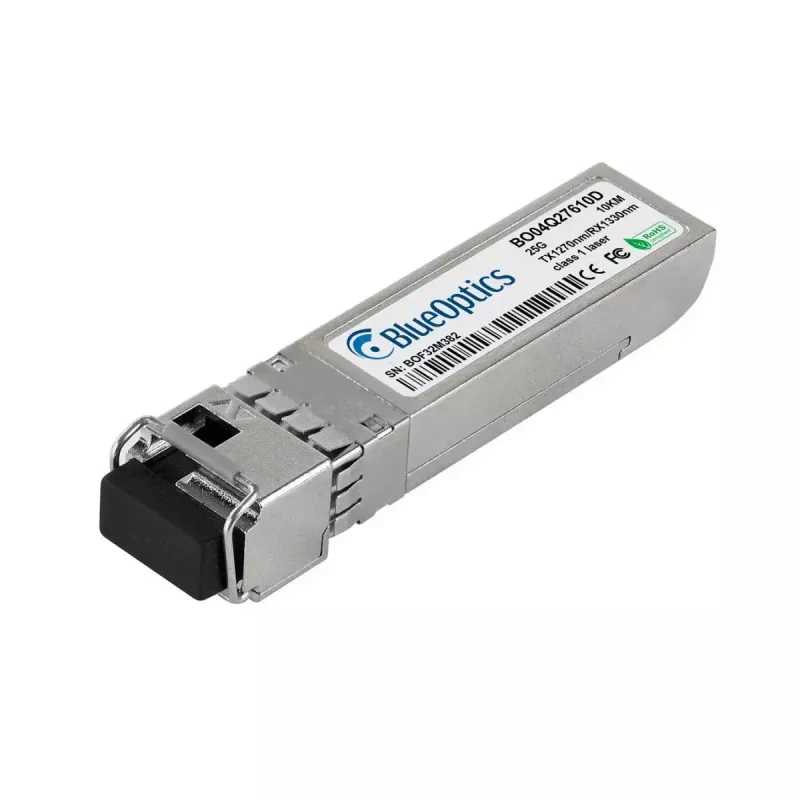

Modulo ricetrasmettitore SFP28 BlueOptics BO04Q27610DIN 25000 Mbit/s

The BlueOptics BO04Q27610DIN is an SFP28 transceiver module engineered for high-speed fiber optic connections. Supporting a maximum data transfer rate of 25000 Mbit/s and compatible with LC fiber connectors, this compact silver module is intended for use in network equipment that requires 25 Gbps links over multimode or single-mode fiber. The module is specified with a maximum transfer distance of up to 10000 m and a mean time between failures (MTBF) of 3,000,000 hours, and it complies with CE, FCC and RoHS standards.

Advantages

The module delivers 25 Gbit/s performance in an SFP28 form factor, enabling higher port density compared with larger optics. Its LC connector and support for long distances up to 10,000 m make it suitable for various network topologies. The silver housing and compact dimensions reduce space and weight constraints in rack or chassis installations. Compliance with common regulatory standards and a high MTBF support predictable operation and easier integration into existing infrastructure.

Suitable for

Key specifications

How to use

Install the BlueOptics BO04Q27610DIN into a compatible SFP28 port on a switch, router or media converter according to the host device's installation procedure. Ensure proper handling of the fiber connector: remove protective caps, align the LC connector with the transceiver receptacle, and insert until it locks. Configure the host device for the desired link speed and verify link status through device management tools. Use appropriate fiber cable type (single-mode or multimode) consistent with the module and the targeted reach.

Recommendations

Handle the transceiver by its housing, avoid touching the fiber endface, and keep protective caps on unused connectors. Verify compatibility with the host device's supported SFP28 modules and firmware, and perform link tests after installation. For long-distance links, use low-loss fiber and proper patching to maintain signal integrity.
