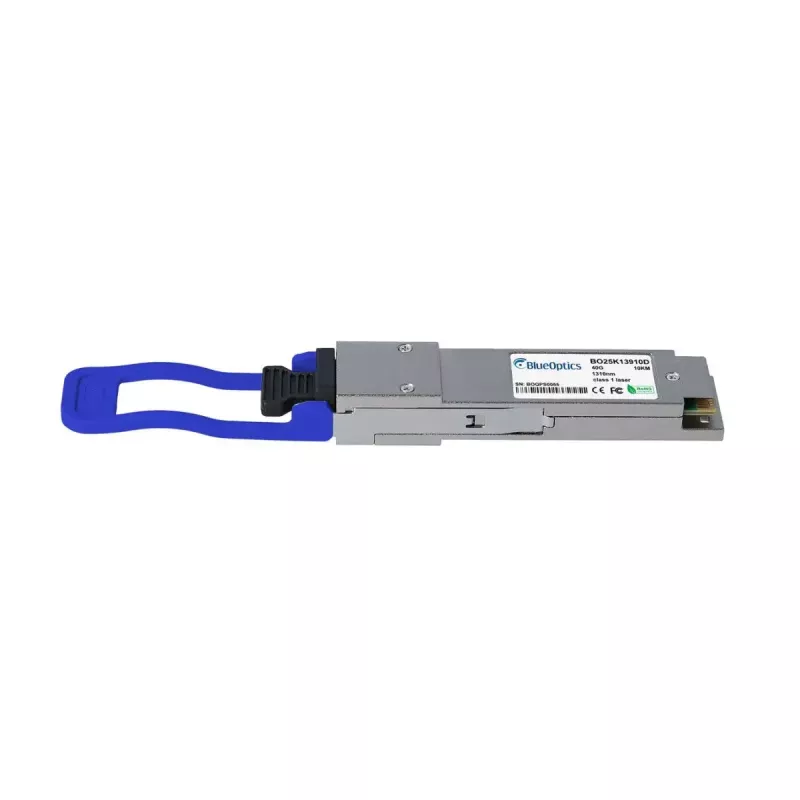

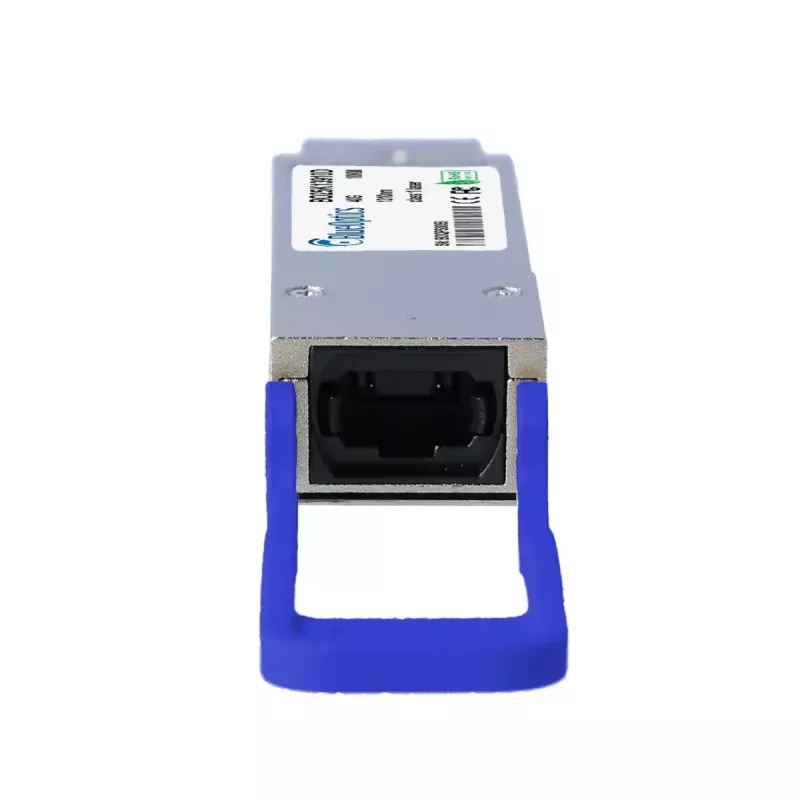

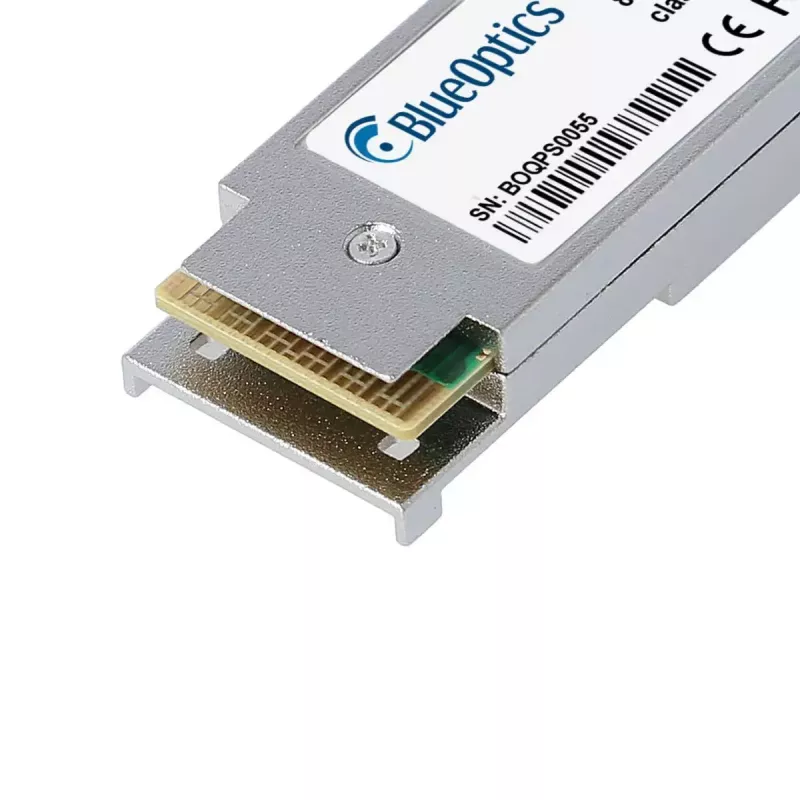

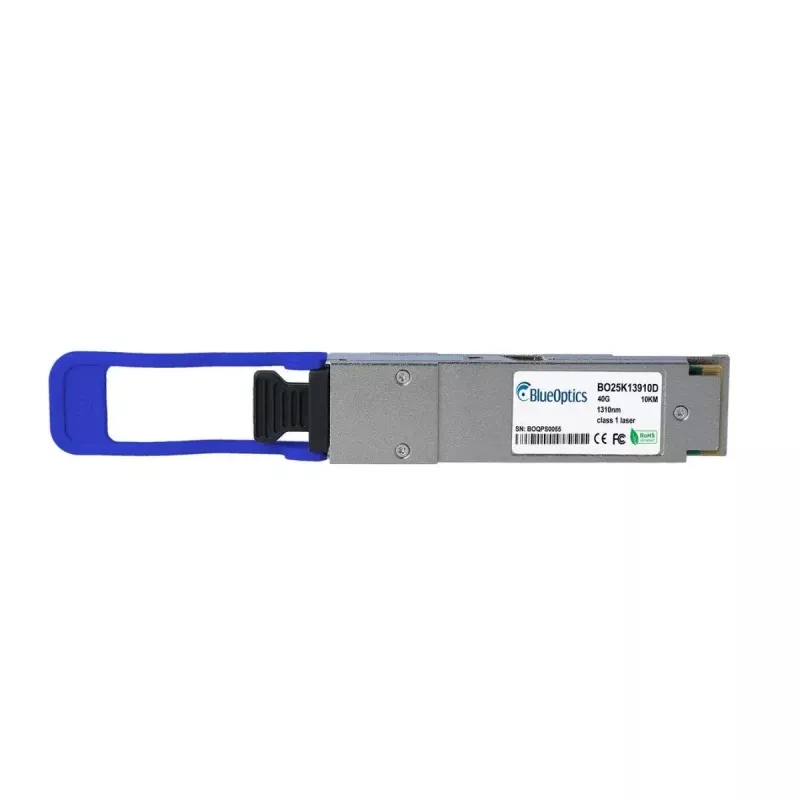

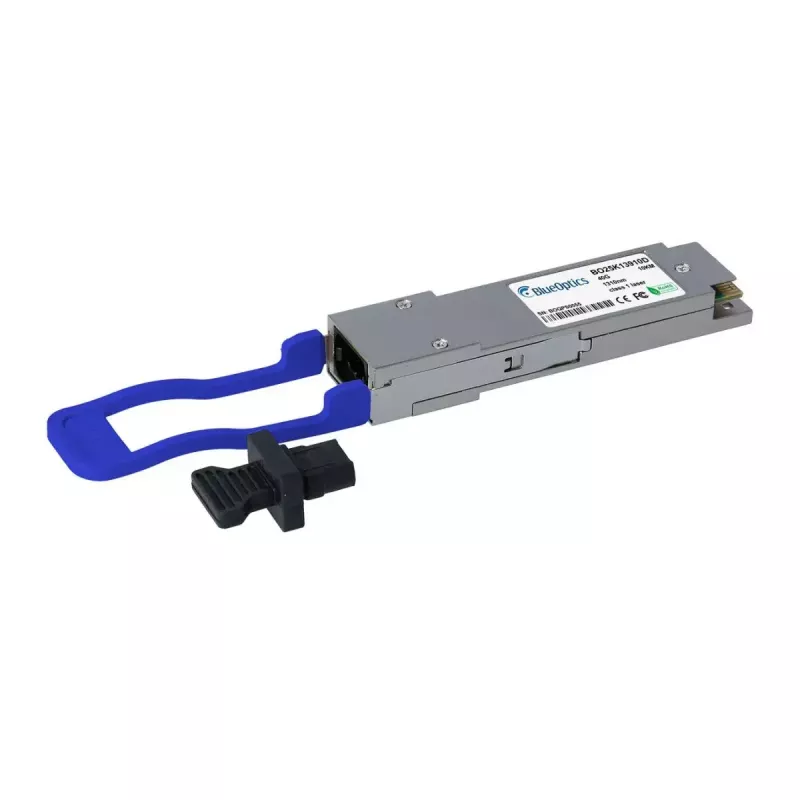

Modulo transceiver di rete BlueOptics BO25K13910D-BO 40 Mbit/s QSFP 1310 nm

The BlueOptics BO25K13910D-BO is a QSFP network transceiver module designed for optical data links at a wavelength of 1310 nm. Supporting a maximum data transfer rate of 40 Mbit/s and featuring an LC fiber optic connector, this compact module offers a standard interface for integration into compatible network equipment. The transceiver is supplied in blue and grey housing and weighs approximately 0.04 kg, providing a lightweight option for point-to-point and short-range fiber connections.

Advantages

The module uses a QSFP interface that simplifies installation into multi-port transceivers and switch line cards, enabling straightforward replacement or upgrade. Operating at 1310 nm provides compatibility with standard single-mode fiber segments while the LC connector ensures stable optical coupling. The compact, colour-coded housing supports easy identification in rack environments and the low weight reduces mechanical load on ports.

Suitable for

• Short-range single-mode fiber links
• Data centre connections and switch uplinks
• Network equipment requiring a QSFP form factor
• Applications where a 1310 nm wavelength is specified

Key specifications

• Interface type: QSFP
• Maximum data transfer rate: 40 Mbit/s
• Operating wavelength: 1310 nm
• Connector type: LC fiber optic
• Product colour: Blue, Grey
• Approximate weight: 0.04 kg

How to use

Install the BlueOptics QSFP module into a compatible QSFP port on network switches or transceiver cages following the host device manufacturer’s hot-plug and handling guidelines. Ensure the fiber cable with LC connector is clean and correctly aligned before making the optical connection. Verify link status and configure the host port if necessary to match the 40 Mbit/s link parameters and any required network settings.

Recommendations

Use this transceiver with single-mode fiber compliant with 1310 nm operation, keep fiber connectors clean, and follow ESD precautions when handling the module. Confirm compatibility with your switch or router vendor documentation and test links after installation to ensure stable operation at the specified data rate.
