Modulo transceiver in fibra ottica BlueOptics 1AB376350002-BO SFP 40000 m

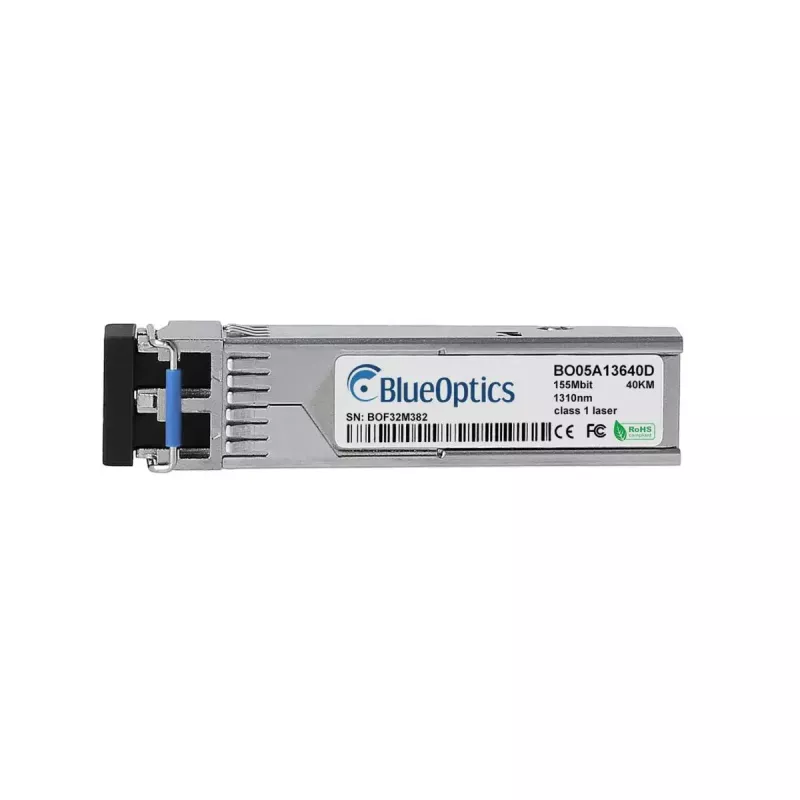

The BlueOptics 1AB376350002-BO SFP 40000 m is a single-mode fiber optic transceiver module designed for reliable high-speed data transmission over distances up to 40,000 meters. Built to MSA SFP form-factor standards with an aluminium housing and LC Duplex connector, this module supports optical communication using 1310 nm transmit and receive wavelengths and is suitable for Ethernet, Fibre Channel over Ethernet or SDH/SONET applications up to specified data rates and ranges. The compact, lightweight design makes it compatible with equipment that accepts standard SFP modules.

Advantages

This BlueOptics SFP module combines a standardized SFP interface and LC Duplex connectivity for easy integration into network switches, routers and storage systems. The aluminium enclosure provides mechanical stability while the single-mode optical design enables long-reach links up to 40 km. Modules are tested for compatibility with major hardware platforms and include components selected to meet industry MSA requirements, which supports predictable operation and long service life.

Suitable for

• Long-distance single-mode fiber links (up to 40 km)
• Network equipment with SFP slots such as switches, routers and storage systems
• Optical Ethernet, Fibre Channel over Ethernet and SDH/SONET environments

Key specifications

• Form factor: SFP (small form-factor pluggable)
• Wavelength: 1310 nm transmit and receive
• Maximum reach: 40,000 m (40 km) over single-mode fiber
• Connector type: LC Duplex
• Housing material: aluminium
• Weight: 0.02 kg

How to use

Insert the SFP transceiver into a compatible SFP slot on your network device until it clicks into place, then connect LC Duplex single-mode fiber patch cords to the transceiver ports following the transmit/receive orientation. Ensure the host device supports the required protocols and optical parameters and verify link status using the host interface. If the hardware supports digital diagnostics (DDM/DOM), enable it to monitor operating parameters such as supply voltage, laser bias current, output and input power, and temperature.

Recommendations

For optimal performance, use single-mode LC Duplex patch cords and, if possible, patch panels or direct transceiver-to-transceiver connections that match the module's specification. Confirm DDM/DOM support on the host device before relying on diagnostic monitoring. Handle the transceiver carefully to avoid contamination of fiber endfaces and follow standard electrostatic discharge (ESD) and fiber safety procedures during installation and maintenance.
