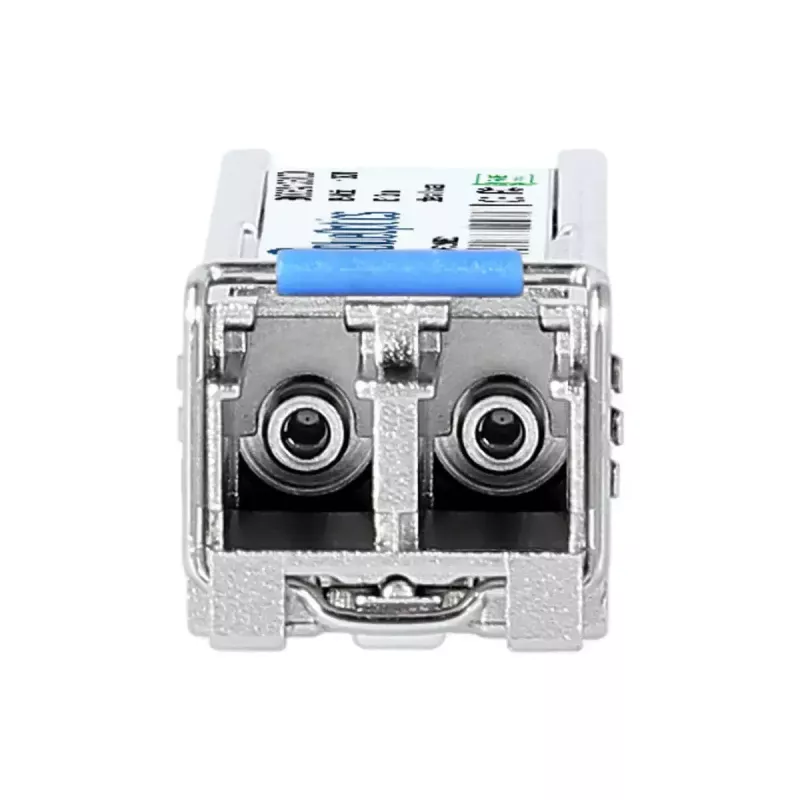

Modulo transceiver SFP BlueOptics 10-2213-01-BO 155 Mbit/s 1310 nm

The BlueOptics 10-2213-01-BO SFP transceiver module is a single-mode fiber optic interface designed for data links up to 155 Mbit/s. It operates at a wavelength of 1310 nm, uses an LC duplex connector and comes in a robust metal housing. The module adheres to MSA form factors and complies with RoHS, FCC and CE standards. With an MTBF of approximately 1,000,000 hours, it is intended for reliable long-distance optical connections in networking equipment that supports 100BASE-LX and similar protocols.

Advantages

The module provides a standardized SFP interface compatible with equipment that accepts 100BASE-LX transceivers, enabling interoperability across switches, routers and storage systems. Metal housing and a design following MSA guidelines ensure mechanical durability and predictable installation. Operating at 1310 nm over single-mode fiber supports distances up to several kilometers while remaining immune to electromagnetic interference. Compliance with common regulatory standards and an elevated MTBF contribute to dependable, low-maintenance operation.

Suitable for

• Point-to-point single-mode fiber links in campus and enterprise networks
• Upgrading or replacing 100BASE-LX SFP ports on switches and routers
• Interconnection of storage systems and network appliances that accept SFP transceivers
• Optical links requiring immunity to electromagnetic interference

Key specifications

• Interface type: SFP (MSA compliant)
• Maximum data transfer rate: 155 Mbit/s
• Wavelength: 1310 nm
• Connector type: LC duplex
• Optical fiber type: single-mode
• Housing: metal
• Typical MTBF: ~1,000,000 hours
• Color: silver
• Weight: ~0.02 kg

How to use

Install the BlueOptics SFP module into an empty SFP port of a compatible switch, router or other network device by gently inserting until it clicks into place. Connect an LC duplex single-mode fiber patch cord to the transceiver, ensuring correct transmit/receive orientation. Verify link status using the host device management interface and, if available, enable or check digital diagnostic monitoring (DDM/DOM) features to monitor optical parameters. When removing the module, power down or follow hot-swap procedures recommended by the host device and pull the transceiver out by its release mechanism.

Recommendations

Use single-mode LC duplex patch cords and clean connector endfaces before installation to maintain signal quality. Confirm that the host hardware and firmware accept third-party SFP modules and, if DDM/DOM monitoring is required, ensure the device supports that function. Avoid exposing the module to excessive mechanical stress or contaminants; store unused transceivers in protective caps when not inserted.
