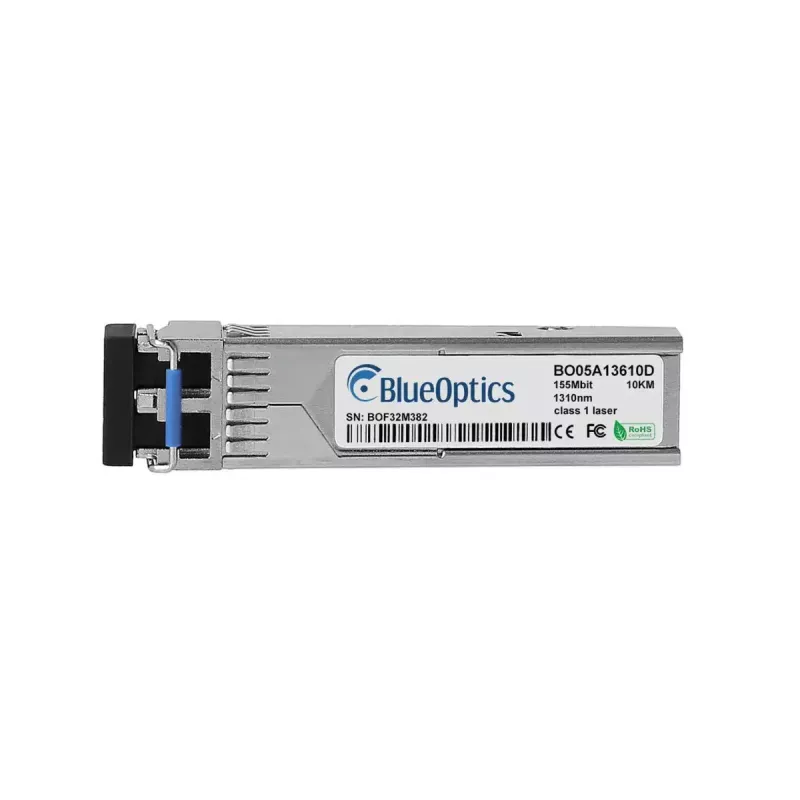

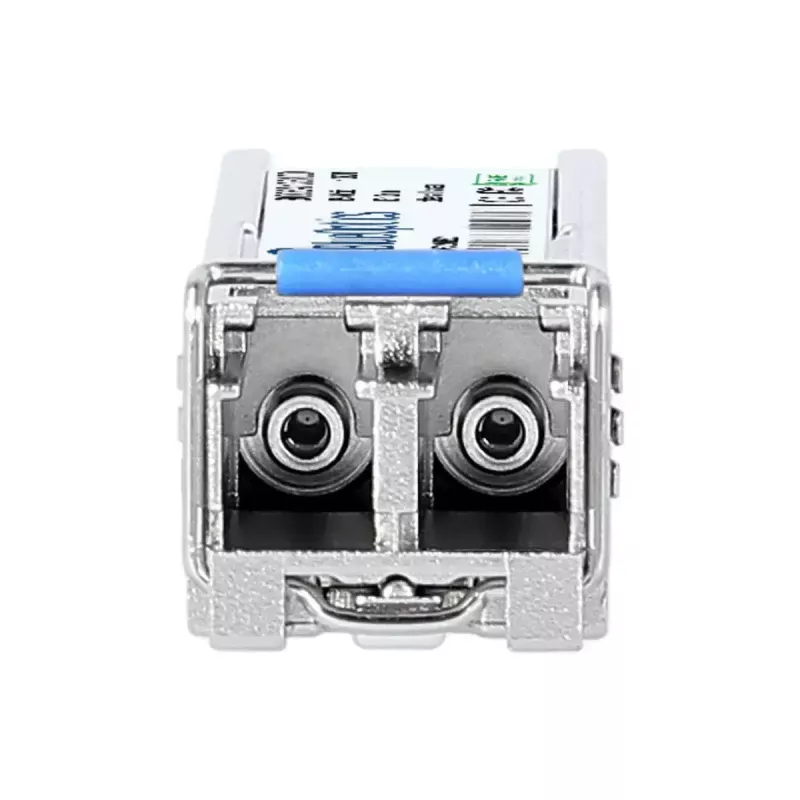

Modulo transceiver SFP BlueOptics 10-2294-01-BO 155 Mbit/s fibra ottica

The BlueOptics 10-2294-01-BO is an SFP fiber optic transceiver module designed for point-to-point and short-range fiber network links. Supporting a maximum data transfer rate of 155 Mbit/s and presented in a compact SFP form factor with a silver metal housing, this module provides a straightforward interface for compatible network devices. The product is compliant with CE, FCC and RoHS standards and is specified with a high MTBF of 1,000,000 hours, indicating long-term operational reliability.

Advantages

The SFP form factor enables hot-swappable installation in SFP-compatible switches and routers, allowing easy upgrades or replacements without powering down equipment. With a rated maximum throughput of 155 Mbit/s, the transceiver is suitable for legacy and specialized applications that require low to moderate bandwidth. The silver metal enclosure and lightweight design (approximately 0.02 kg) support compact deployments and rack-density installations. Certifications for CE, FCC and RoHS demonstrate conformity with common safety, electromagnetic compatibility and environmental standards.

Suitable for

• Legacy SDH/PDH or other low-rate fiber links requiring 155 Mbit/s
• Point-to-point fiber connections between switches, routers or media converters
• Network equipment in telecom, industrial or campus environments with SFP ports
• Hot-swap maintenance and incremental network expansion

Key specifications

• Interface type: SFP (small form-factor pluggable)
• Maximum data transfer rate: 155 Mbit/s
• Form factor: compact SFP module suitable for SFP slots
• Material and colour: silver metal housing
• Weight: approximately 0.02 kg
• Reliability: MTBF approx. 1,000,000 hours
• Standards compliance: CE, FCC, RoHS

How to use

Ensure the host device supports SFP fiber transceivers and is powered according to the manufacturer's instructions. Hold the module by the housing, align it with the SFP port on the switch or router, and insert it firmly until it clicks into place; the module is hot-swappable so insertion or removal can typically be performed without powering down equipment. Connect the appropriate fiber optic cable to the transceiver's optical interface, observing correct transmit/receive orientation and fiber type. Verify link status through the host device's management interface or LED indicators after installation.

Recommendations

Use this transceiver in clean environments and avoid touching the optical interfaces. Store spare modules in anti-static packaging and protect fiber ends with dust caps when not in use. Match fiber type and connector polish to the transceiver's requirements and verify compatibility with the host equipment's SFP specifications before deployment.
