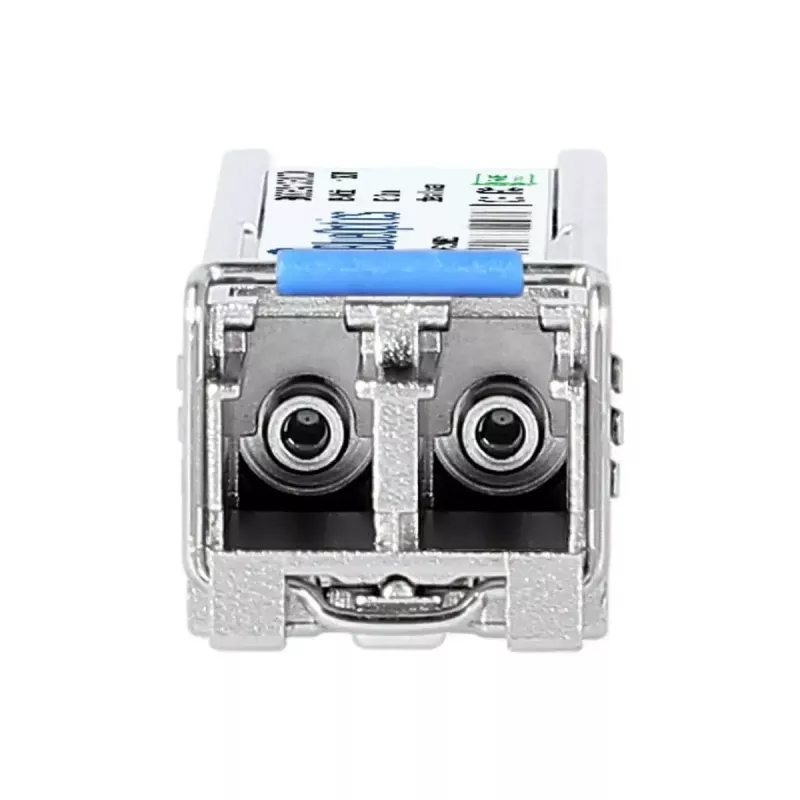

Modulo transceiver SFP BlueOptics 1AB376350001 155 Mbit/s 1310 nm

The BlueOptics 1AB376350001 155 Mbit/s 1310 nm is a compact SFP fiber optic transceiver module designed for single-mode network links. It supports a maximum data transfer rate of 155 Mbit/s and operates at a wavelength of 1310 nm, providing a balance of distance capability and compatibility with telecommunications and legacy networking equipment. The module fits into standard SFP cages and offers a hot-pluggable solution for adding or replacing fiber interfaces on switches, routers and media converters.

Advantages

This SFP transceiver provides stable optical transmission at 1310 nm with a defined 155 Mbit/s throughput, suitable for synchronous optical networking and similar applications. Its small form factor and hot-pluggable design simplify hardware changes and minimize downtime. The module is manufactured to be physically compatible with standard SFP ports and supports straightforward installation into existing infrastructure.

Suitable for

• Upgrading or expanding single-mode fiber links in enterprise or carrier networks
• Interfacing legacy equipment that requires 155 Mbit/s optical connections
• Use in switches, routers, media converters and other devices with SFP slots

Key specifications

• Form factor: SFP (small form-factor pluggable)
• Maximum data transfer rate: 155 Mbit/s
• Optical wavelength: 1310 nm
• Fiber type: single-mode
• Hot-pluggable functionality

How to use

Power down is not required for insertion in devices that support hot-pluggable SFP modules; carefully align the module with the SFP cage and slide it into place until it clicks. Connect a compatible single-mode fiber patch cable to the optical port, observing correct transmitter/receiver orientation. Configure the network device as necessary to enable the interface and set the appropriate link parameters for 155 Mbit/s operation. For removal, release the module retention mechanism and withdraw the module straight out to avoid damaging the cage or connector.

Recommendations

Store and handle the transceiver in a clean, dry environment; keep protective caps on the optical interfaces when not connected to prevent contamination. Use single-mode fiber rated for the application and verify connector cleanliness before mating. Ensure device compatibility with SFP modules and confirm link configuration for 155 Mbit/s to achieve reliable optical transmission.
