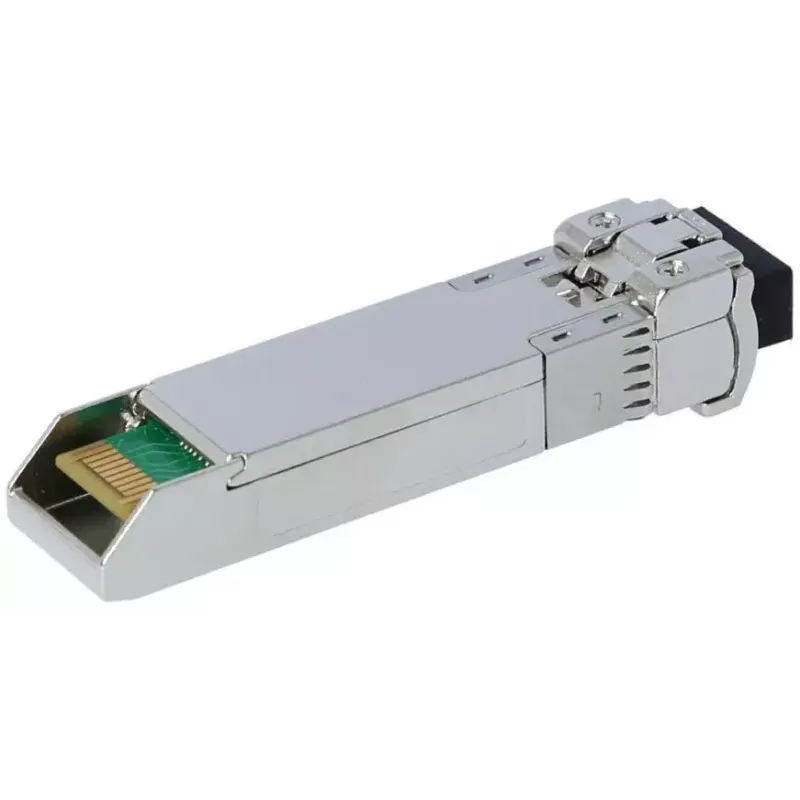

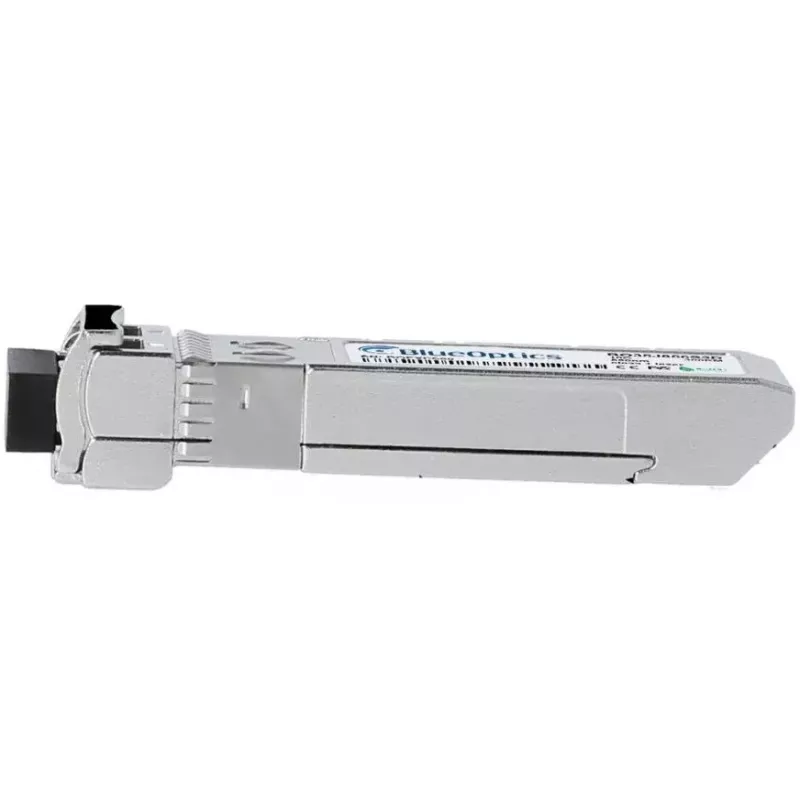

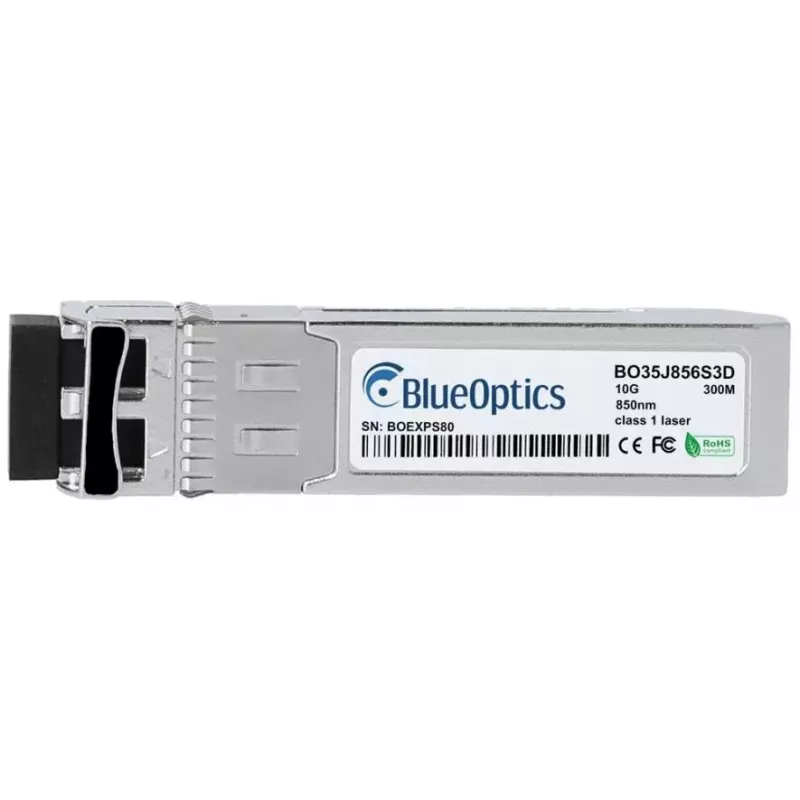

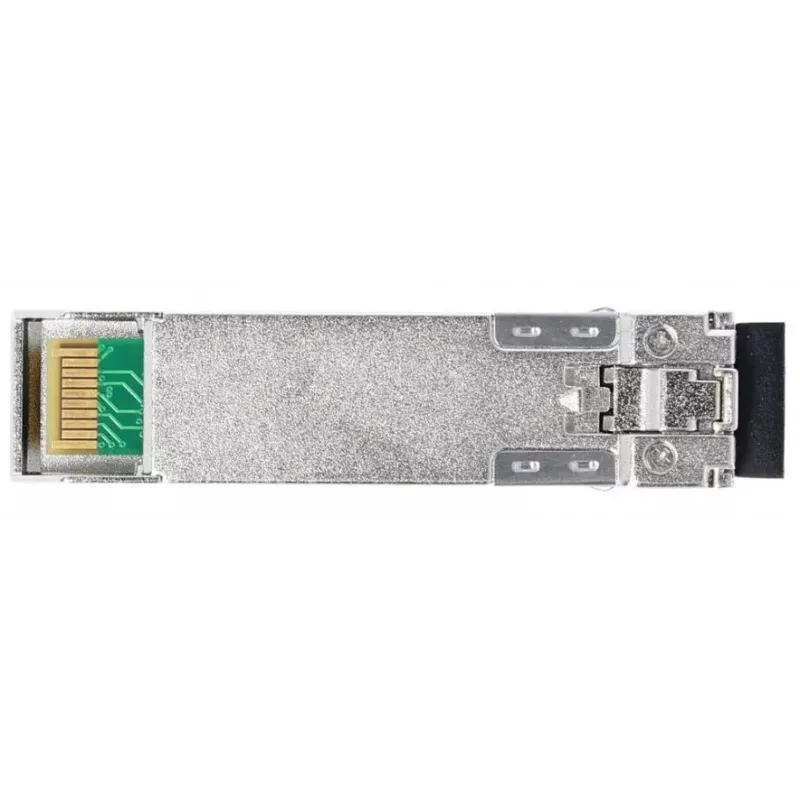

Modulo transceiver SFP BlueOptics SFP-SX-LC10-BO 1250 Mbit/s 850 nm

The BlueOptics SFP-SX-LC10-BO is a fiber-optic SFP+ transceiver module compatible with LANCOM equipment. It supports optical transmission over multimode fiber using 850 nm wavelength for both transmitter and receiver and follows MSA specifications. The module is intended for Ethernet, Fibre Channel over Ethernet or SDH/SONET applications up to 10 Gbit/s and a typical link distance of up to 300 meters when used with appropriate LC duplex cabling. It is certified to industrial standards such as CE, RoHS and FCC and is designed for long operational lifetime and high availability.

Advantages

The BlueOptics SFP-SX-LC10-BO provides MSA-compliant electrical and mechanical compatibility with systems that support the original LANCOM SFP-SX-LC10 module. It includes digital diagnostic monitoring (DDM/DOM) compliant with SFF-8472 for real-time status information (voltage, laser bias current, output power, received power and temperature). Components from established manufacturers are used to achieve a long mean time between failures (MTBF) and an expected service life above typical values for transceivers. The module is lightweight and has a stainless-steel housing for reliable installation in switches, routers and storage systems.

Suitable for

Key specifications

How to use

Install the BlueOptics SFP-SX-LC10-BO by inserting the module into an SFP+ slot of a compatible LANCOM-supported switch, router or storage device with the device powered according to the vendor instructions. Connect an LC duplex multimode fiber patch cable to the module and to the remote transceiver or patch panel. Verify that the host device recognizes the module and, if required, enable DDM/DOM on the host to monitor diagnostic parameters. Ensure firmware or software compatibility with the host platform if the vendor requires specific settings for third-party transceivers.

Recommendations

Use high-quality multimode LC duplex patch cords and, if available, patch panels to achieve the specified range and signal quality. Confirm that the host hardware supports DDM/DOM if you need remote diagnostics. For long-term availability, follow manufacturer handling guidelines for electrostatic discharge (ESD) and store spare modules in original packaging until installation.
