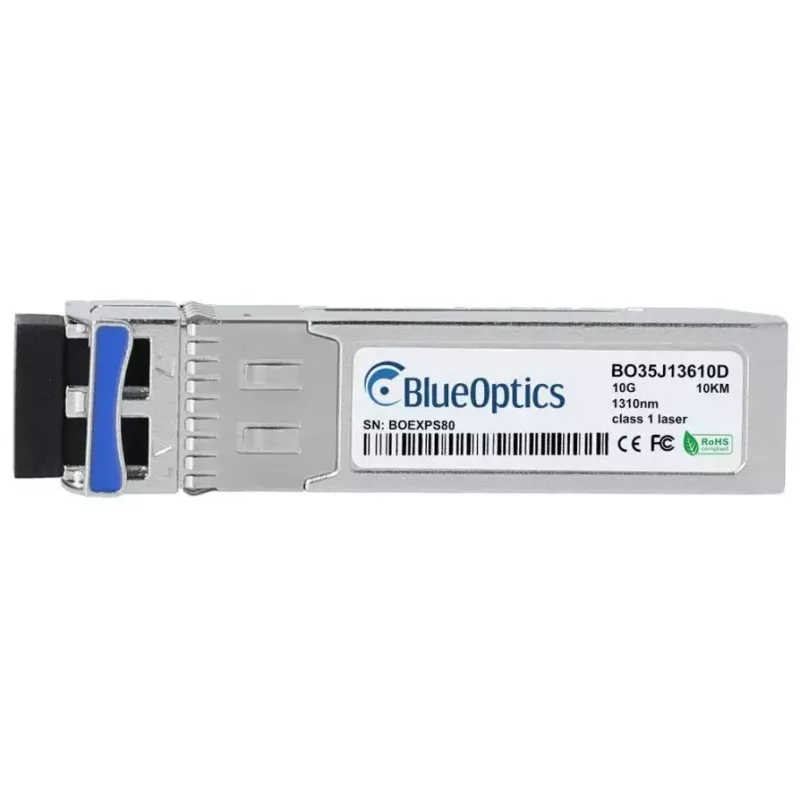

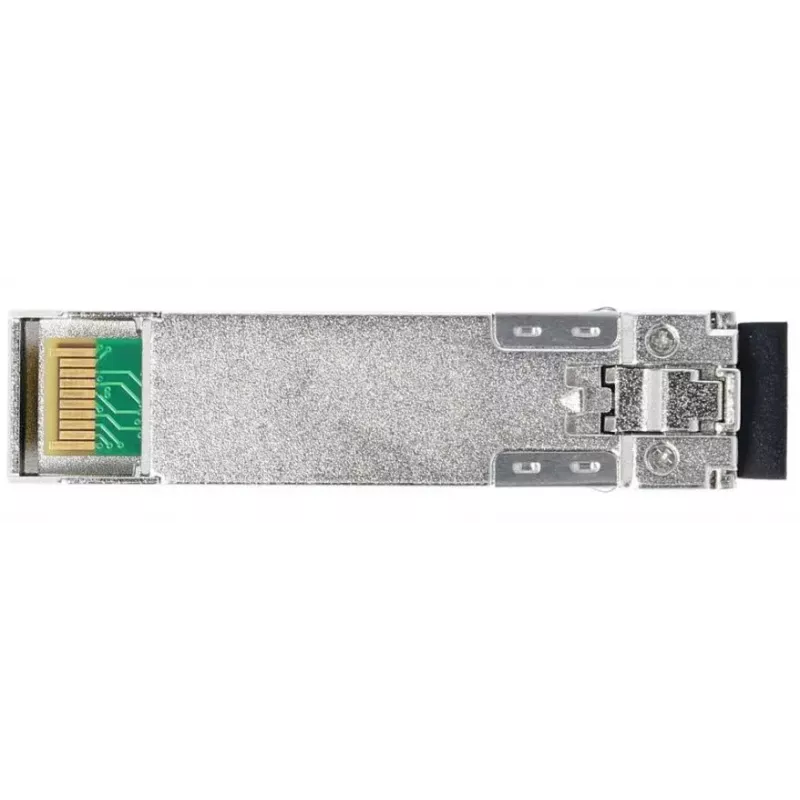

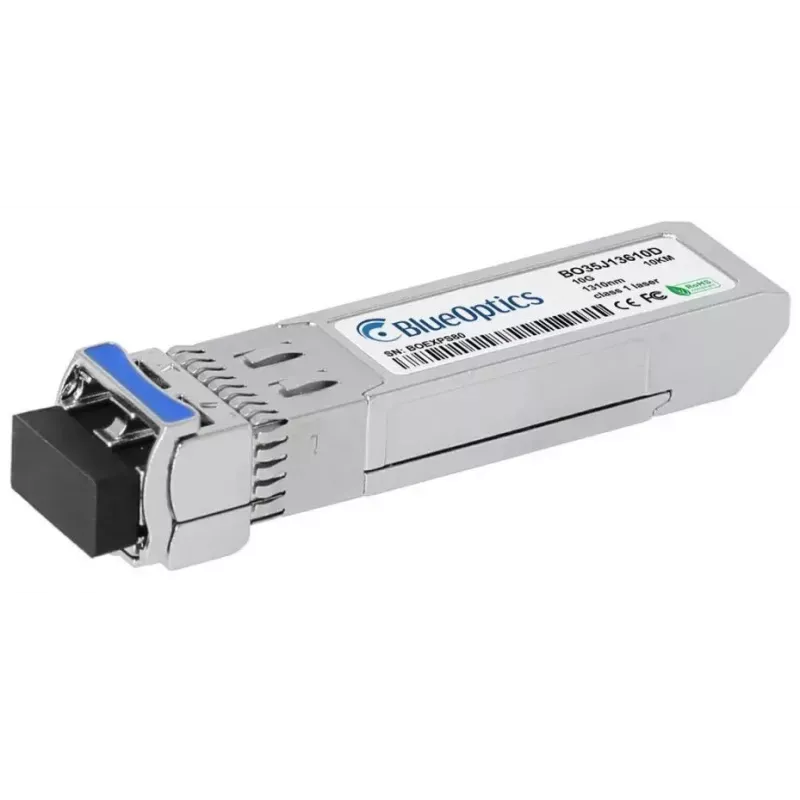

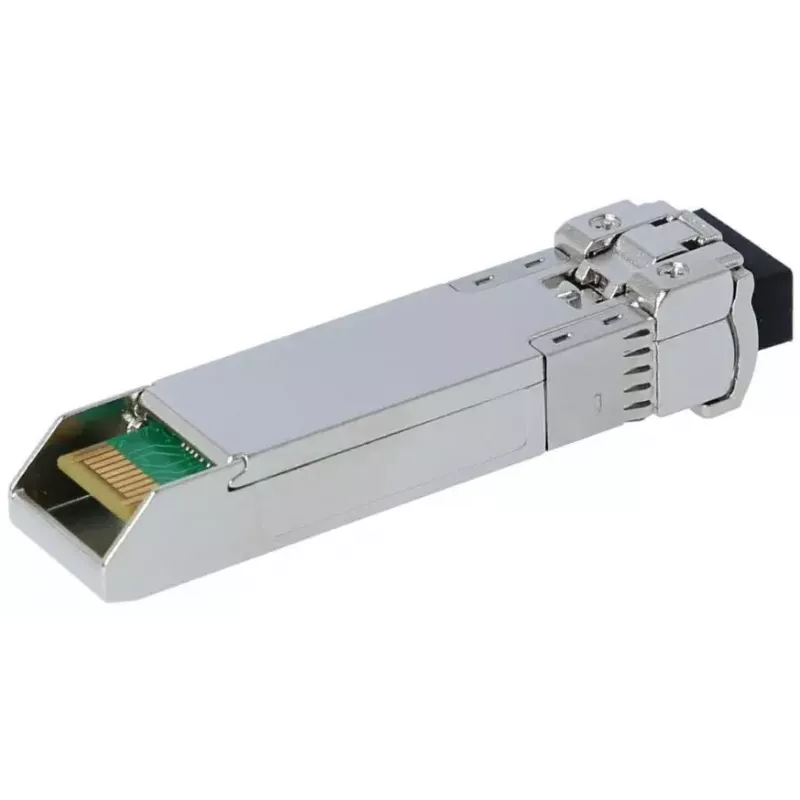

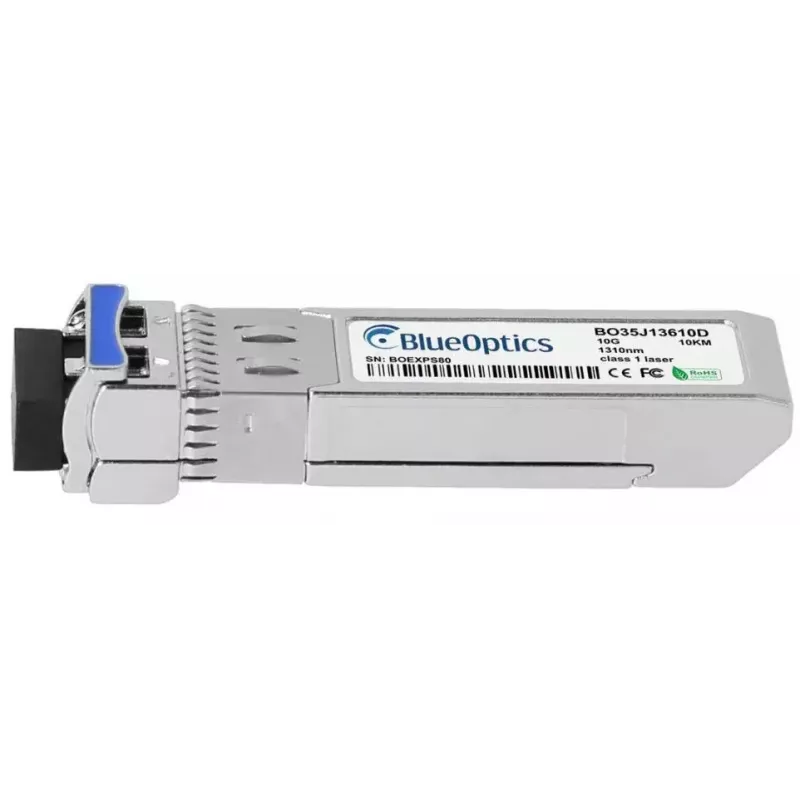

Modulo transceiver SFP+ BlueOptics SFPP-13-10-BO 10000 Mbit/s 1310 nm

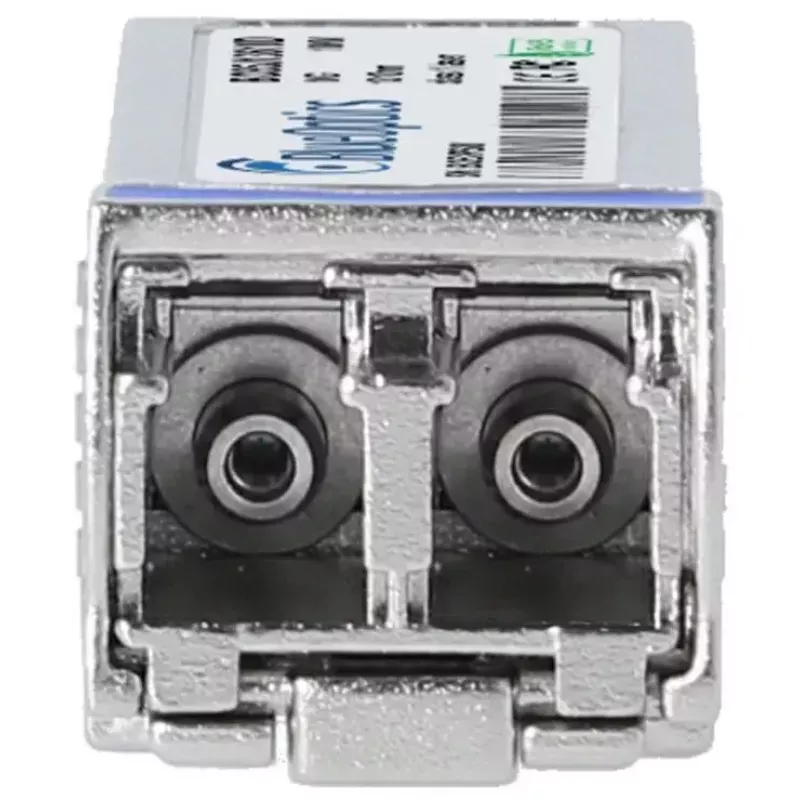

The BlueOptics SFPP-13-10-BO SFP+ transceiver module offers 10 Gbit/s optical data transmission over single-mode fiber using a 1310 nm wavelength. Housed in a durable metal enclosure with a compact and lightweight design, this module supports SFP+ interfaces and operates from a 3.3 V input. It provides an LC duplex optical connector and is engineered for use in networking devices that accept SFP+ 10GBASE-LR transceivers, delivering reliable point-to-point links up to several kilometers depending on system configuration.

Advantages

The transceiver combines a metal housing for mechanical robustness with a small form factor and a weight of approximately 3 g, simplifying installation and handling. It supports a maximum data rate of 10000 Mbit/s and conforms to SFP+ interface conventions, enabling interoperability with a wide range of compatible switches, routers and storage systems. Built to industry MSA standards, the module includes components chosen for long service life and stable optical performance, and it can support digital diagnostic functions where the host hardware provides DOM/DDM support.

Suitable for

Key specifications

How to use

Insert the BlueOptics SFPP-13-10-BO into a compatible SFP+ port on your switch, router or storage device while the host is powered down or following hot-pluggable procedures supported by your equipment. Connect LC duplex single-mode fiber patch cords matching transmit and receive fibers between modules. Verify link status in the host device interface and, if available, enable or query Digital Optical Monitoring (DOM/DDM) via the host to read supply voltage, temperature, transmit power and receive power. Ensure the host device firmware supports the module for full compatibility.

Recommendations

Use single-mode LC duplex fiber and quality patch cords to achieve optimal reach and signal integrity. Confirm that the target hardware supports SFP+ 10GBASE-LR transceivers and DOM/DDM if diagnostics are required. Follow static-safe handling procedures and clean fiber connectors before insertion to avoid contamination and maintain link performance.
