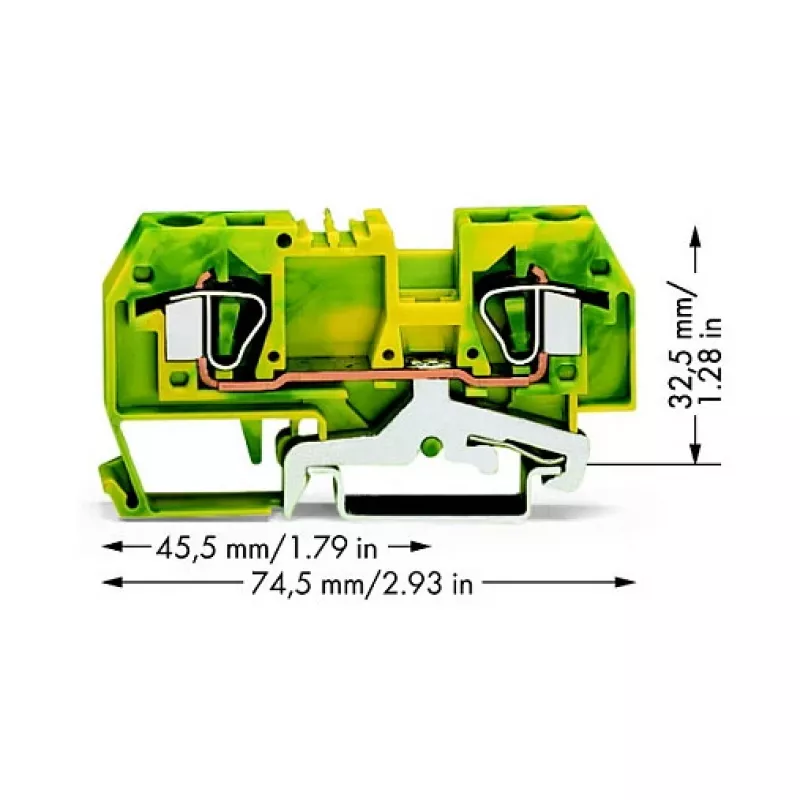

Morsetto di terra WAGO verde-giallo 0,2-6 mm² 282-907

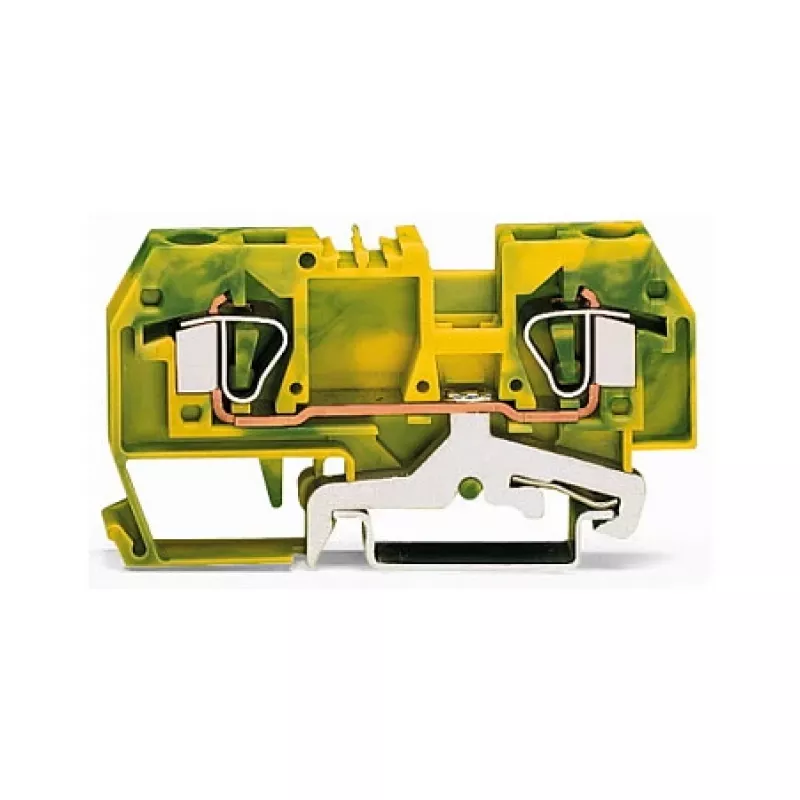

The WAGO 282-907 ground conductor terminal block is a high-quality component designed for secure and reliable grounding connections in electrical installations. With its green-yellow color coding, it clearly identifies the protective earth conductor, ensuring compliance with safety standards. This terminal block features WAGO's proven CAGE CLAMP® connection technology, providing a maintenance-free, vibration-proof, and gas-tight connection for solid and stranded conductors.

Advantages

Thanks to the CAGE CLAMP® connection, installation is quick and tool-free, saving time and effort. The compact design allows for high-density wiring on DIN-rail 35 mm, optimizing space in control cabinets. The transparent housing made of polyamide (PA 66) offers excellent insulation and a flammability rating of UL94 V0, ensuring safety in demanding environments.

Suitable for

• Grounding and bonding applications in industrial control panels
• Building electrical installations requiring protective earth connections
• Use in machinery, switchgear, and distribution boards

Key specifications

• Connection Technology: CAGE CLAMP®
• Number of Conductors: 3
• Conductor Cross-section (Solid): 0.2 - 6 mm² (24 - 10 AWG)
• Conductor Cross-section (Stranded): 0.2 - 4 mm² (24 - 12 AWG)
• Nominal Cross-section: 4 mm²
• Stripped Length: 9 - 10 mm
• Mounting Type: DIN-rail 35 mm
• Color: Green-yellow
• Insulating Material: Polyamide (PA 66)
• Rated Current: 32 A
• Number of Potentials: 1
• Wiring Type: Side-entry wiring
• Product Series: 282 Series
• Operating Temperature: -35 to +105 °C
• Flammability Rating: UL94 V0

Recommendations

For optimal performance, use with WAGO tools and accessories. Ensure proper conductor stripping length (9-10 mm) for reliable connection. This terminal block is ideal for new installations and retrofits where safety and efficiency are paramount.
