Multiplexer a divisione di lunghezza d'onda Ubiquiti UISP UACC-UF-WDM-XGS larghezza 212 mm altezza 221 mm

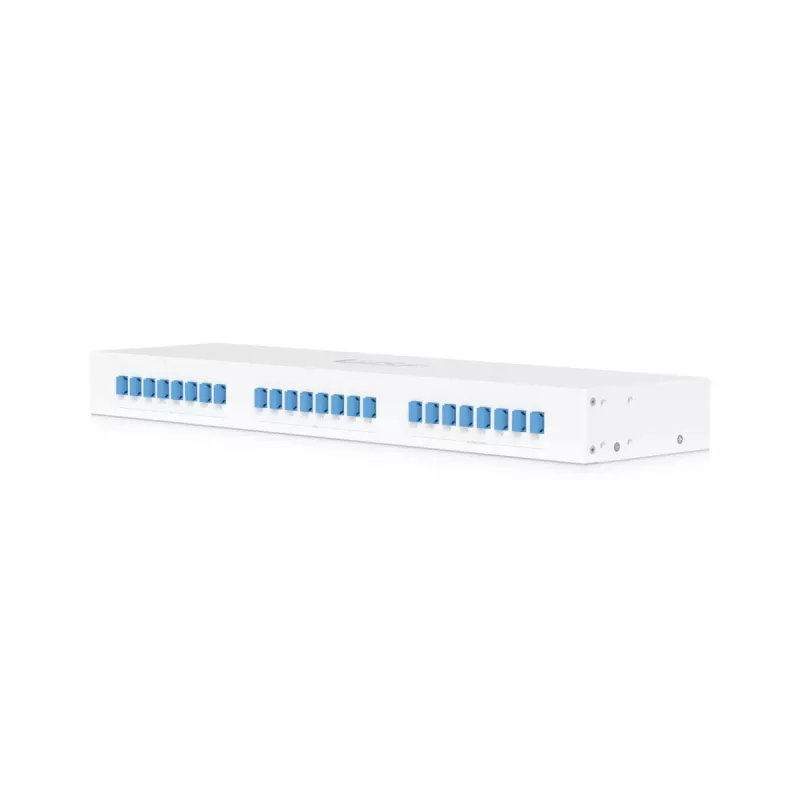

The Ubiquiti UISP UACC-UF-WDM-XGS is a wavelength division multiplexer that combines XGS/XG-PON and GPON services into a single fiber distribution system. With compact dimensions (212 mm width, 44 mm depth, 221 mm height) and a 1.8 kg weight, this WDM module is intended for integration into fiber access networks to consolidate multiple PON signals on one fiber.

Advantages

This wave division multiplexer supports simultaneous transmission of XGS/XG-PON and GPON over a single fiber, reducing fiber infrastructure needs and simplifying network management. Its compact enclosure and standardized form factor allow for easy mounting in access or distribution racks. The device is suitable for operator and enterprise environments that require efficient bandwidth utilization and coexistence of multiple PON generations.

Suitable for

• Combining XGS/XG-PON and GPON services on a single fiber
• Fiber access networks and subscriber aggregation
• Network operators upgrading mixed PON deployments
• Integration into fiber distribution panels and racks

Key specifications

• Manufacturer: Ubiquiti (UBIQUITI)
• Model / MPN: UACC-UF-WDM-XGS
• Product type: Wave Division Multiplexer (WDM) for PON
• Supported services: XGS/XG-PON and GPON
• Dimensions (W×D×H): 212 mm × 44 mm × 221 mm
• Weight: 1.8 kg

How to use

Install the WDM module in an appropriate rack or fiber distribution enclosure according to site layout. Connect XGS/XG-PON and GPON inputs on the module to the corresponding PON OLT or splitter outputs, and connect the multiplexed output to the single fiber distribution line. Ensure fiber connectors and patching follow the network plan and label ports to avoid confusion between PON generations.

Recommendations

Verify compatibility of optical power levels and connector types (SC/APC or as specified) before deployment. Perform end-to-end testing after installation to confirm that both XGS/XG-PON and GPON services operate correctly and that loss budgets remain within acceptable ranges.
