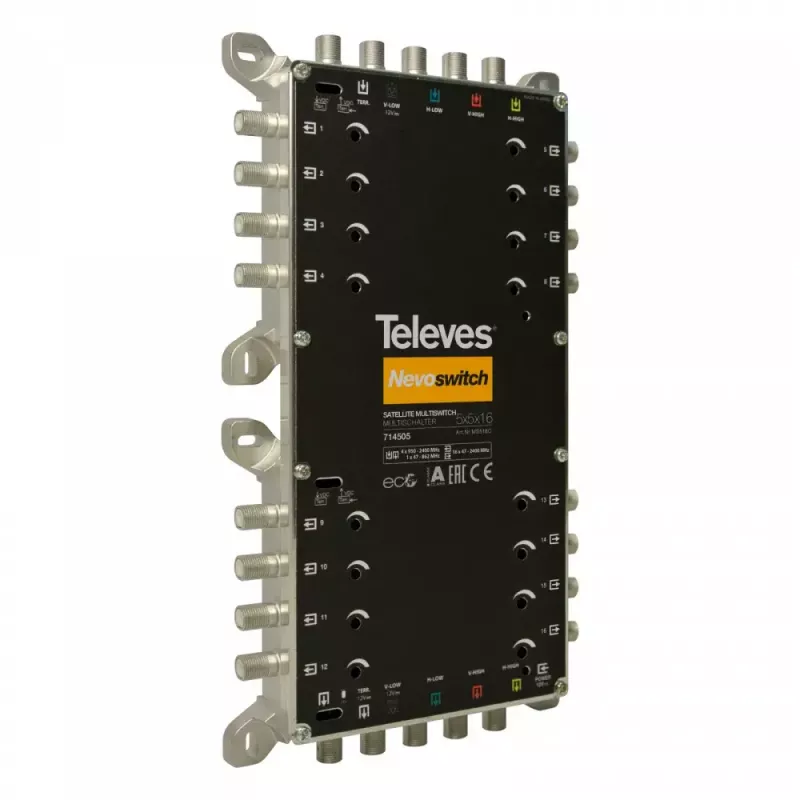

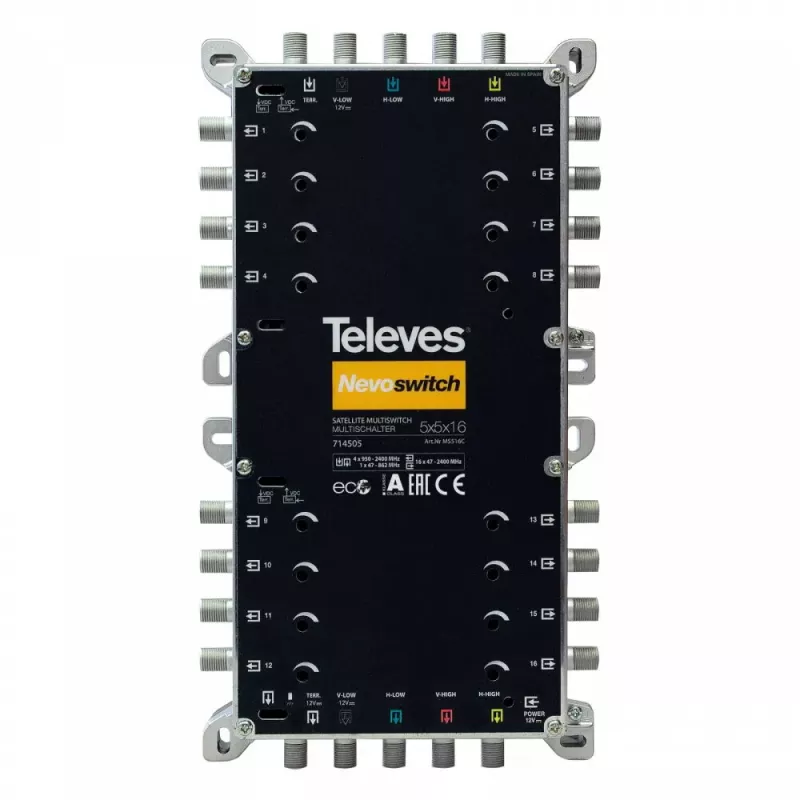

Multiswitch satellitare Televes 714505 5 ingressi 16 uscite

The Televes 714505 Satellite multiswitch provides five inputs — one terrestrial (VHF/UHF) and four satellite polarities — and 16 user outputs. It supports an input frequency range of 950–2400 MHz, accepts input signal levels between 92 and 105 dBµV, and draws 105 mA. Each user output includes an adjustable 12 dB potentiometer, and the device can be installed as a terminal (star topology) or used in cascade via a built-in switch.

Advantages

The multiswitch delivers stable distribution of satellite and terrestrial signals to multiple receivers while offering per-output attenuation control through 12 dB potentiometers. Its cascaded operation option increases installation flexibility for larger systems, and the specified frequency and input level ranges make it suitable for standard Ku-band satellite reception setups. Low current consumption simplifies power planning in installations.

Suitable for

• Apartment buildings or small commercial sites requiring up to 16 TV/satellite outputs
• Star-topology installations where the device acts as a terminal
• Cascaded multiswitch systems to expand the number of outputs
• Distributing Ku-band satellite signals and terrestrial broadcasts to multiple receivers

Key specifications

• Model: Televes 714505
• Inputs: 5 (1 terrestrial + 4 satellite polarities)
• Outputs: 16 user outputs
• Input frequency range: 950–2400 MHz
• Input level range: 92–105 dBµV
• Per-output attenuation: 12 dB potentiometer
• Power consumption: 105 mA
• MPN: 714505 · EAN: 8424450172827

How to use

Connect the terrestrial antenna to the terrestrial input and the satellite LNB outputs to the four satellite polarity inputs. Configure the device as a terminal in star topology by connecting each user output to a receiver, or switch it to cascade mode and connect to subsequent multiswitches to expand the system. Adjust each output’s 12 dB potentiometer to equalize signal levels at receivers, and ensure the system power supply meets the device’s requirements.

Recommendations

For reliable performance, verify incoming signal levels are within the 92–105 dBµV range before distribution, use quality coaxial cables and connectors, and perform per-output attenuation adjustments while monitoring receiver signal strength to avoid overload or insufficient level at endpoints.
