NEOMOUNTS BY NEWSTAR supporto a parete per videowall (estraibile, bloccabile, verticale e orizzontale, piede di sostegno)

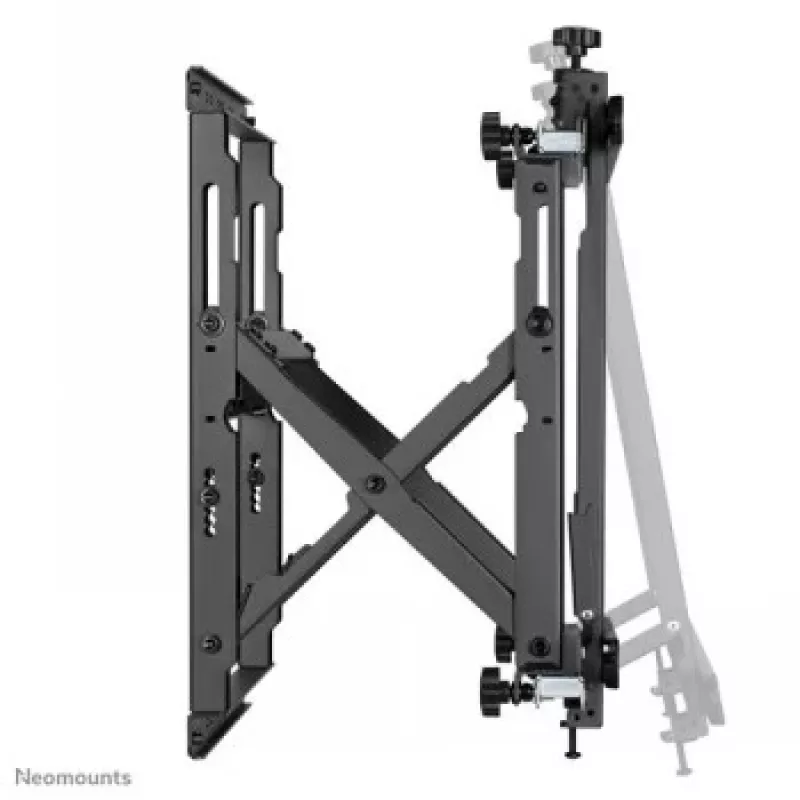

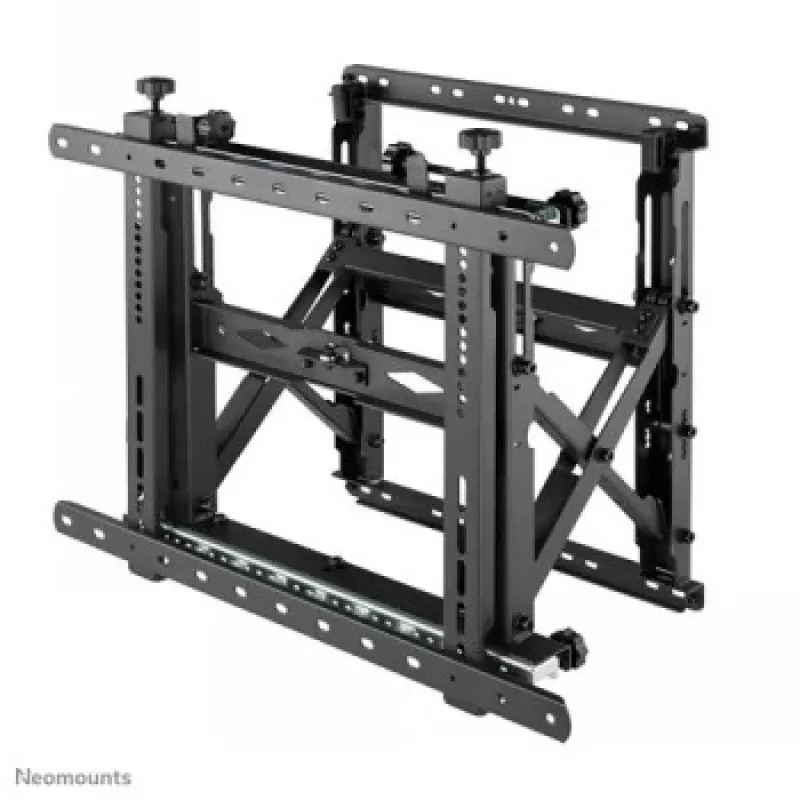

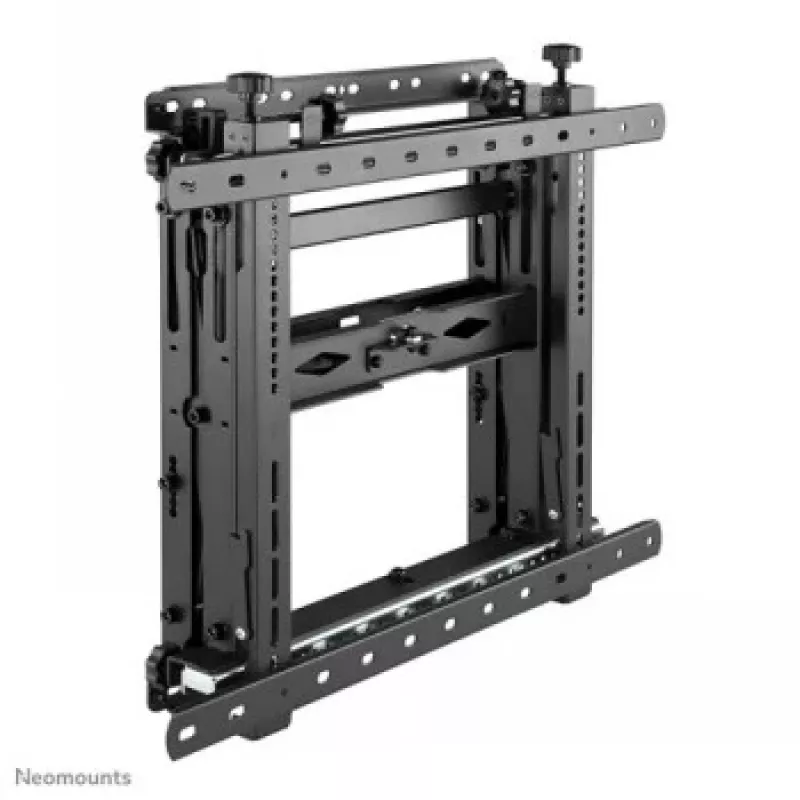

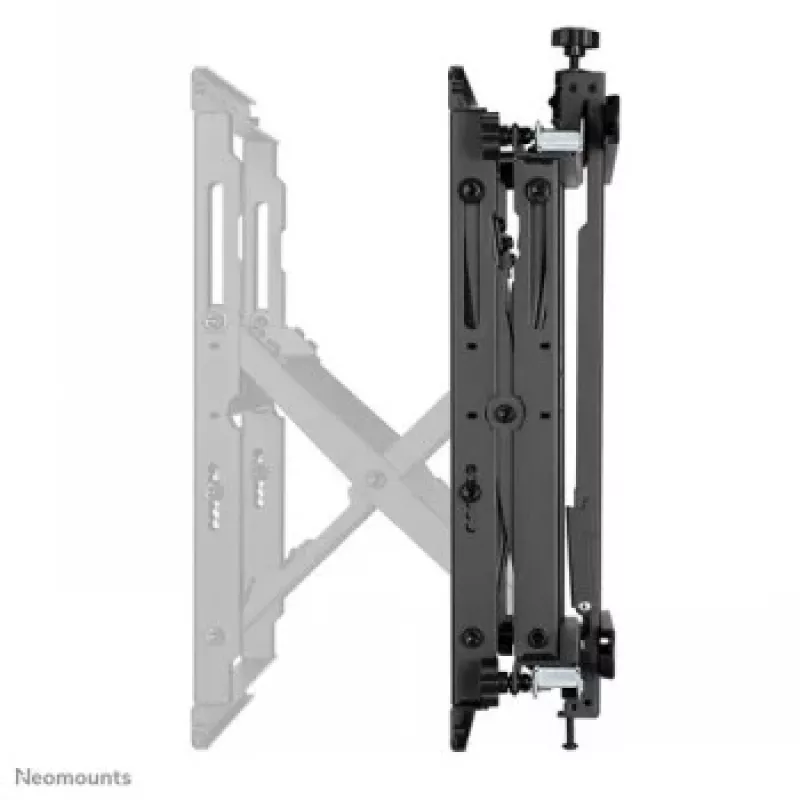

The NEOMOUNTS BY NEWSTAR Wall Mounted Video Wall Mount (WL95-900BL16) is a robust and versatile mounting solution designed for video wall installations. It supports screens from 45 to 70 inches and features a pop-out mechanism that extends up to 200 mm from the wall, making it ideal for maintenance and cable management. The mount is lockable for security and includes a kickstand for easy access to cables. It supports both portrait and landscape orientations, with micro-adjustments for perfect alignment.

Advantages

This mount offers exceptional flexibility with its pop-out and lockable design, ensuring your display is secure yet easily accessible. The kickstand provides convenient cable management, while the micro-adjustments allow for precise leveling and alignment. Its sturdy steel construction supports up to 45 kg, making it suitable for a wide range of professional displays.

Suitable for

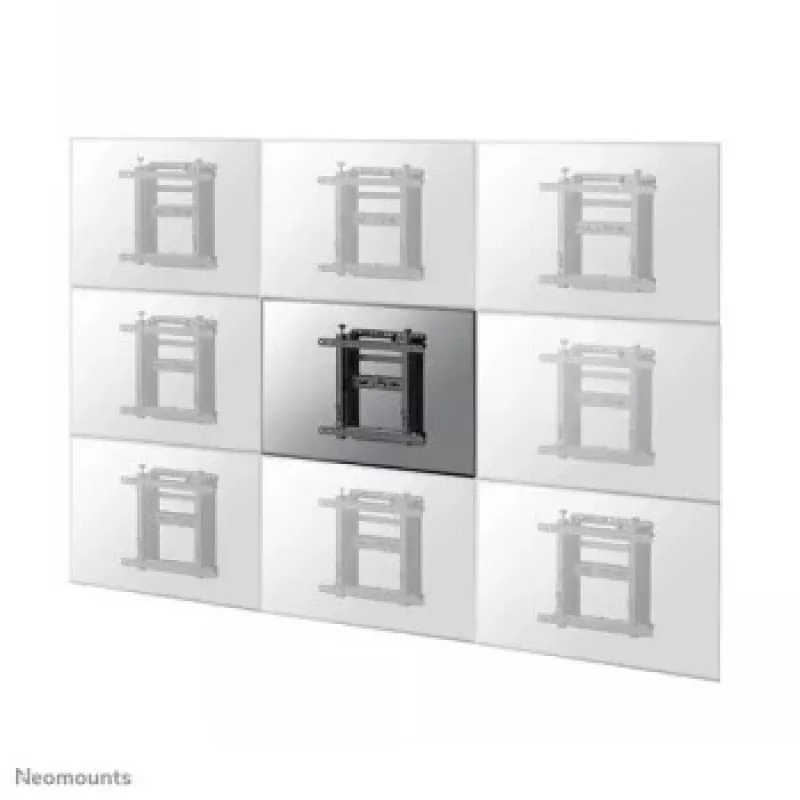

• Video wall installations in retail, corporate, and public spaces
• Digital signage requiring frequent maintenance or cable access
• Security-sensitive environments needing anti-theft features

Key specifications

• Mount Type: Video Wall Mount (Pop-Out)
• Screen Size Compatibility: 45 - 70 inches (114 - 178 cm)
• Maximum Weight Capacity: 45 kg (99 lbs)
• VESA Mounting Standard: 200x200 to 600x400 mm
• Minimum Wall Distance: 60 mm
• Maximum Wall Distance (Pop-Out): 200 mm
• Depth Adjustment: 60 - 200 mm
• Height Adjustment: ± 15 mm
• Tilt Adjustment: ± 3°
• Lateral Shift: Yes
• Material: Steel
• Colour: Black
• Anti-Theft Feature: Lockable (padlock not included)
• Cable Management: Kickstand for easy access
• Number of Screens Supported: 1 (per mount)

Recommendations

For optimal performance, ensure your wall can support the combined weight of the mount and display. Use appropriate hardware for installation. The lockable feature requires a padlock (not included) for full security.
