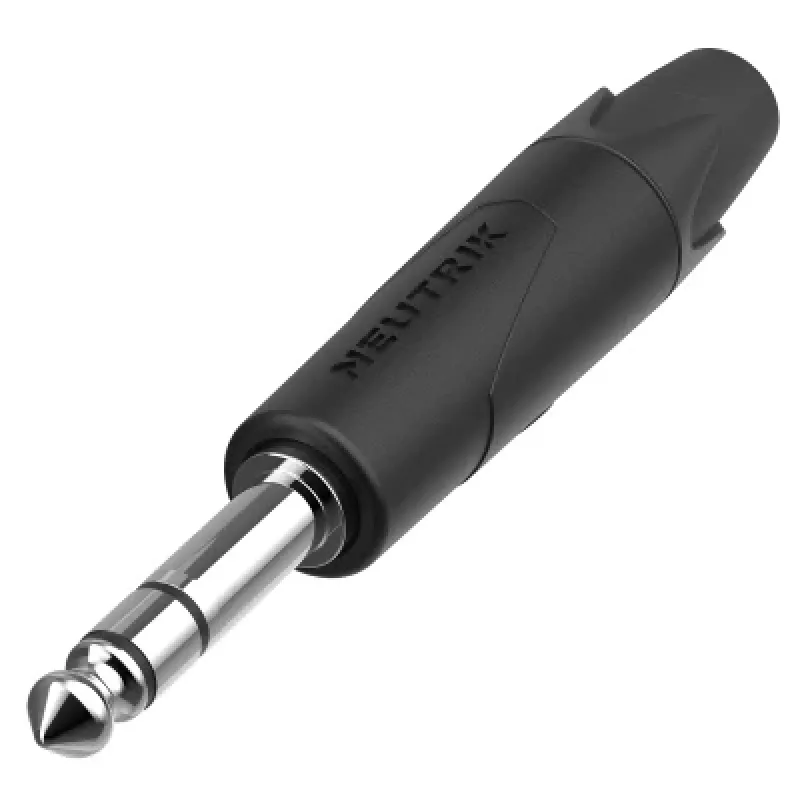

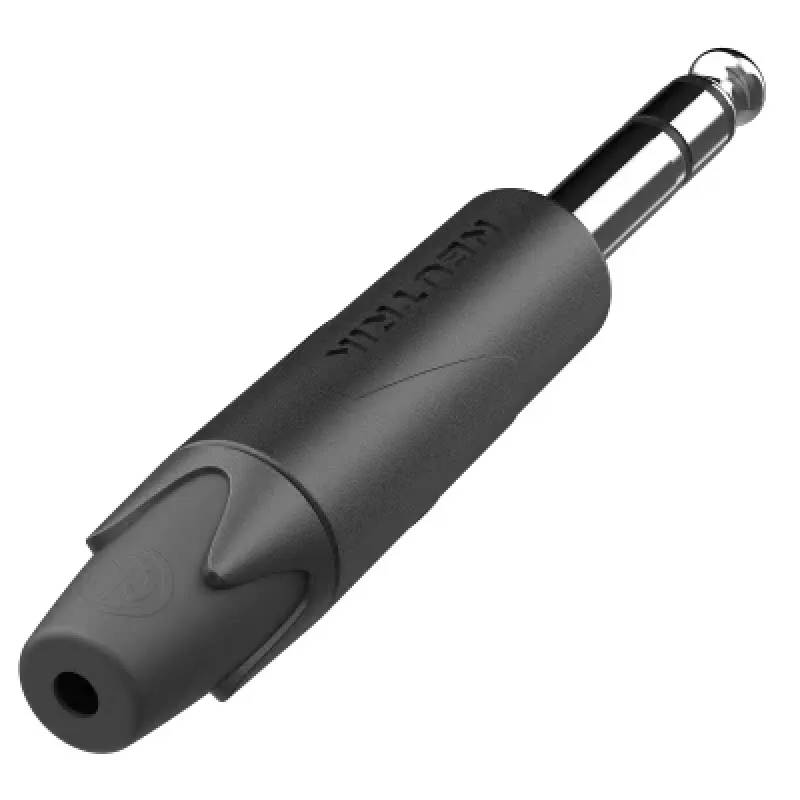

Neutrik NP3XX-NI-0 connettore jack 3 poli nichelato

The Neutrik NP3XX-NI-0 is a professional 3-pole phone plug connector engineered for reliable audio signal transmission in instrument and patch cable applications. Its robust zinc diecast housing with nickel plating ensures durability and excellent shielding, while the chuck-type strain relief accommodates cable diameters from 4.5 to 10 mm for secure termination.

Advantages

The NP3XX-NI-0 offers a high current rating of 15 A per contact and low contact resistance below 6 mΩ, guaranteeing minimal signal loss. With a lifetime exceeding 1000 mating cycles and an operating temperature range of -20 °C to +65 °C, this connector is built for demanding live and studio environments.

Suitable for

• Audio patch cables and instrument leads
• Professional sound reinforcement systems
• Recording studio and broadcast installations

Key specifications

• Connector type: 1/4 inch (6.35 mm) phone plug, 3-pole (TRS)
• Gender: Male
• Contact plating: Nickel
• Housing material: Zinc diecast, nickel plated
• Termination: Solder
• Cable O.D. range: 4.5 - 10 mm
• Rated current: 15 A per contact
• Contact resistance: < 6 mΩ
• Dielectric strength: 1 kVDC
• Insulation resistance: > 2 GΩ
• Lifetime: > 1000 mating cycles
• Temperature range: -20 °C to +65 °C
• Standard compliance: IEC 60603-11 / EIA RS-453

Recommendations

For optimal performance, pair with high-quality shielded audio cable and ensure proper soldering technique to maintain signal integrity.
