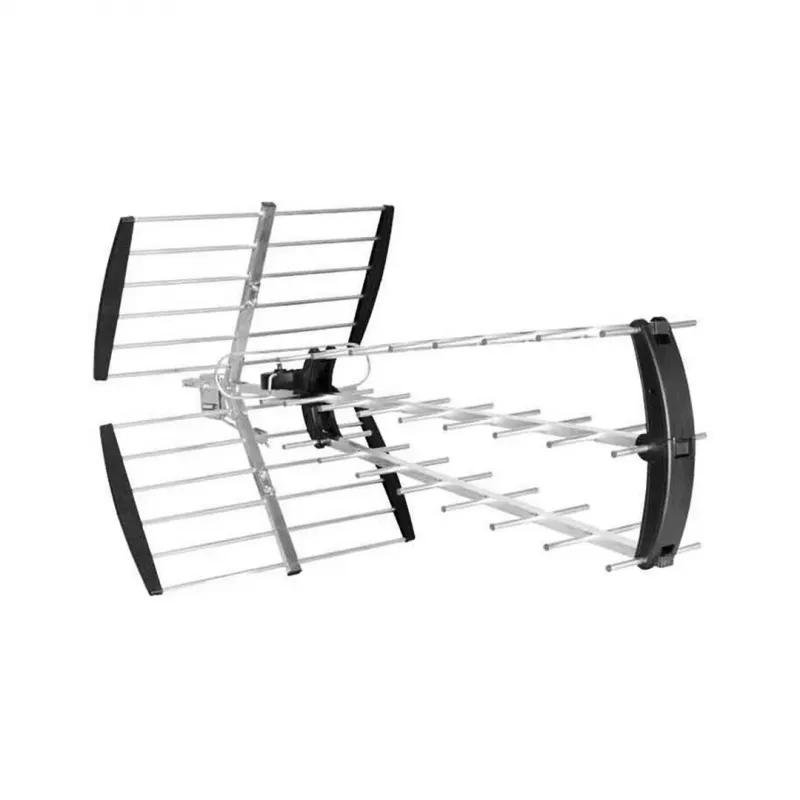

Antenna direttiva DVB-T / DVB-T2 DPM HN62NWZ con filtro LTE, 38 elementi, con amplificatore

Outdoor directional antenna engineered for DVB-T and DVB-T2 reception, delivering up to 40 dB total system gain with an integrated LTE filter to eliminate interference from mobile signals above 790 MHz. The 38-element Yagi design ensures high directivity and stable reception even in fringe areas.

Advantages

Built-in low-noise amplifier with 20–25 dB gain boosts weak signals while the passive antenna gain of 12–16 dB provides a solid foundation. The LTE/5G filter blocks unwanted frequencies, preserving signal clarity. Adjustable polarization (horizontal/vertical) and a rugged aluminum/UV-resistant plastic construction make it suitable for all weather conditions.

Suitable for

• DVB-T and DVB-T2 terrestrial TV reception
• HDTV broadcasts in UHF band (470–790 MHz, channels 21–60)
• Outdoor installations on masts or walls
• Areas with LTE/5G interference

Key specifications

• Type: Directional Yagi antenna, 38 elements
• Frequency range: 470–790 MHz (UHF)
• Amplifier gain: 20–25 dB, noise figure < 2.5 dB
• Passive gain: 12–16 dB, total system gain up to 40 dB
• LTE/5G filter: cuts frequencies above 790 MHz
• Output impedance: 75 Ohm, F-type connector
• Power supply: 5–12V DC via coaxial cable
• Material: aluminum, UV-resistant plastic
• Mounting: mast clamp included

Recommendations

Pair with a quality coaxial cable and a DVB-T2 receiver or TV with built-in tuner. For best results, aim the antenna toward the nearest transmitter and adjust polarization as needed. The included mast clamp allows secure installation on standard masts up to 50 mm diameter.
