Diffusore PA attivo a 2 vie Soundsation HYPER-PRO 12ACX 1600W

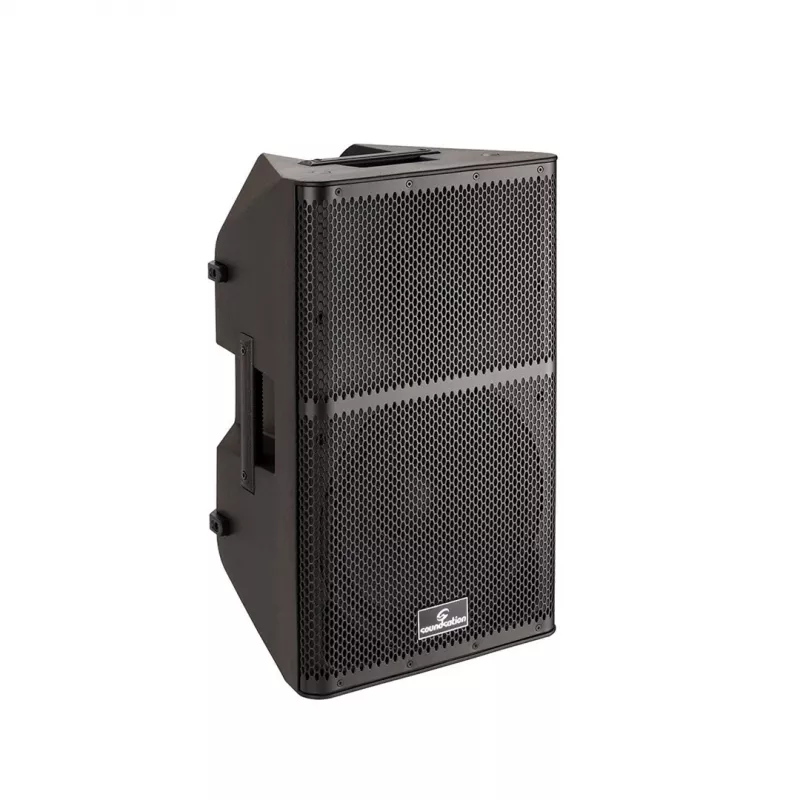

The HYPER-PRO 12ACX breaks away from typical portable PA speakers with its bi-amplified architecture, dedicating a Class D amplifier to the 12-inch woofer and a Class AB amplifier to the 1.35-inch compression driver. This active 2-way loudspeaker delivers 1600W peak power (800W RMS) and reaches a maximum SPL of 128 dB, ensuring articulate, high-impact sound for live performances, DJ sets, and fixed installations. Its rugged polypropylene enclosure and flexible mounting options make it equally at home on a speaker pole or flown via M8 rigging points.

Highlights

• 1600W peak / 800W RMS power output for high-impact sound
• Bi-amplified design: Class D for LF, Class AB for HF
• 12" woofer and 1.35" compression driver for wide frequency response (50 Hz – 20 kHz)
• Maximum SPL of 128 dB for demanding environments
• Four DSP presets: Music, Live, Speech, DJ
• Multiple input options: 2x XLR/TRS combo, 1x stereo RCA
• XLR link output for daisy-chaining multiple speakers
• Durable polypropylene enclosure with 35mm pole mount and M8 rigging points

In daily use

From small gigs to larger venues, the HYPER-PRO 12ACX adapts quickly. Connect a microphone, instrument, or line-level source via the combo jacks or RCA inputs, select the appropriate DSP preset, and adjust the volume. The speaker's built-in protection circuits guard against overload, overheating, DC, and short circuits, ensuring reliable operation even at high output levels. The lightweight yet robust cabinet is easy to transport and set up on a speaker stand or flown.

Full specifications

• Speaker type: Active 2-way PA speaker
• LF driver: 12" (305 mm) woofer
• HF driver: 1.35" (34 mm) compression driver
• Amplifier type: Bi-amplified (Class D LF, Class AB HF)
• Peak power: 1600 W
• RMS power: 800 W
• Frequency response: 50 Hz – 20 kHz (-10 dB)
• Maximum SPL: 128 dB
• Crossover frequency: 2.5 kHz
• Input connectors: 2x XLR/TRS combo, 1x stereo RCA
• Output connectors: 1x XLR link out
• DSP presets: Music, Live, Speech, DJ
• Enclosure material: Polypropylene
• Mounting: 35mm pole mount, M8 rigging points
• Power supply: 220-240V AC, 50/60Hz
• Protection: Overload, overheat, DC, short circuit

Final note

The HYPER-PRO 12ACX combines high output, versatile connectivity, and rugged construction, making it a dependable choice for professionals who need consistent performance night after night.
