Filiera per filettatura metrica M24x2 DIN 22568 6g HSS EL-CUT

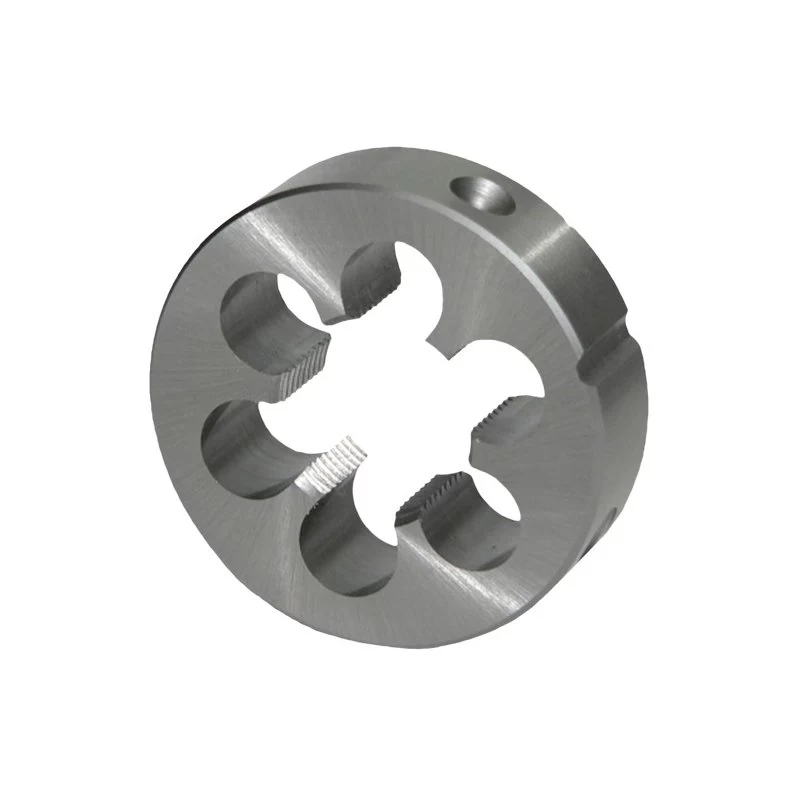

Round threading die for cutting external metric threads. The M24x2 die cuts a 24 mm nominal diameter thread with a 2 mm pitch, made from high-speed steel (HSS) with ground threads for durability and precision. It conforms to DIN 22568 and has a 6g tolerance class for standard external threads.

Advantages

HSS construction provides good wear resistance and cutting performance on steel, non-ferrous metals, and cast iron. Ground threads ensure accurate thread profile and smooth cutting. The 55 mm outer diameter and 16 mm thickness fit standard die stocks for manual or machine use.

Suitable for

• Creating M24x2 external threads on bolts, rods, and shafts
• Repairing damaged threads
• Use with a suitable die stock or holder for 55 mm round dies

Key specifications

• Thread type: Metric
• Nominal thread diameter: 24 mm
• Thread pitch: 2 mm
• Thread standard: ISO Metric Coarse (M)
• Thread tolerance class: 6g
• Die type: Round threading die
• Material: High-speed steel (HSS)
• Standard compliance: DIN 22568
• Cutting direction: Right-hand
• Outer diameter: 55 mm
• Thickness: 16 mm
• Finish: Bright (uncoated)

Recommendations

Use cutting oil to extend die life and achieve cleaner threads. Ensure the workpiece is chamfered before starting.
