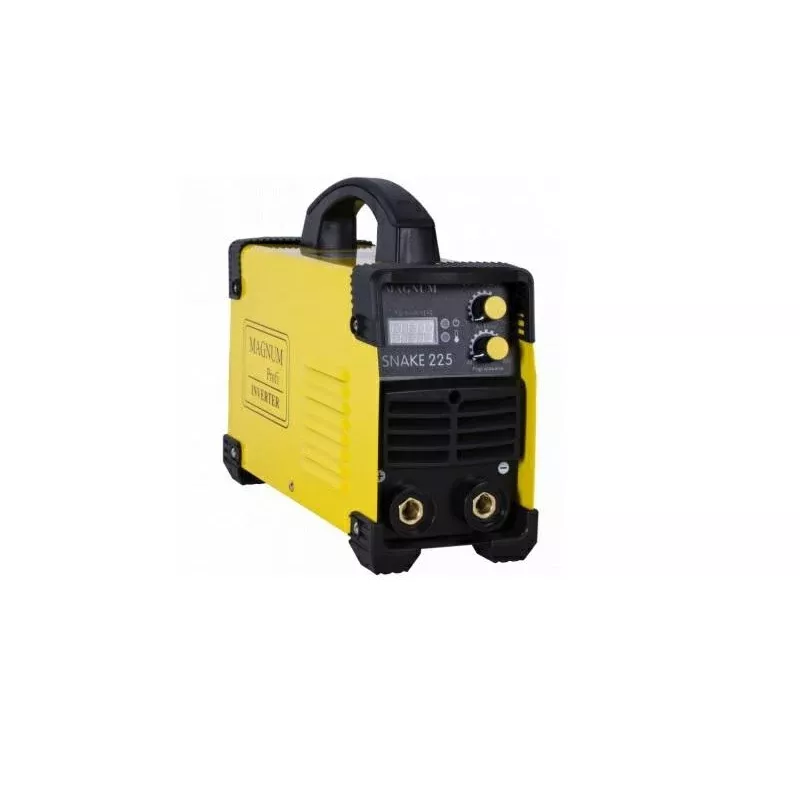

SNAKE 225 saldatrice inverter con display digitale MMA/TIG DC Lift 20-225A 230V

Deliver up to 225 amps of welding power with a 60% duty cycle — the SNAKE 225 inverter welder handles demanding MMA and TIG DC Lift jobs without breaking a sweat. Its IGBT inverter technology ensures a stable arc and efficient energy conversion, while the digital LCD display gives precise control over welding parameters.

Overview

Built for professional welders and serious hobbyists, the SNAKE 225 combines robust performance with user-friendly features. The welder supports both MMA (stick) and TIG DC Lift welding processes, covering a wide current range from 20 to 225 amps. The 230V / 50Hz power supply makes it compatible with standard mains outlets, and the fan cooling system keeps the unit running reliably during extended use.

What stands out

• IGBT inverter technology for high efficiency and stable arc
• Digital LCD display for precise current adjustment and monitoring
• Hot Start, Arc Force, and Anti-Stick functions for improved welding quality
• Wide electrode diameter range: 1.6 mm to 5.0 mm
• High duty cycle: 60% at 225A for continuous operation
• Protection class IP21S and insulation class H for durability

Technical details

• Welding methods: MMA, TIG DC Lift
• Welding current range: 20-225A (both MMA and TIG DC Lift)
• Duty cycle: 60% at 225A
• Open circuit voltage: 60V
• Max power consumption: 7.7 kVA
• Max input current: 33A
• Power factor: 0.73
• Electrode diameter range: 1.6 - 5.0 mm
• Cooling system: Fan
• Display type: Digital LCD
• Protection class: IP21S
• Insulation class: H

Our verdict

The SNAKE 225 is a reliable and powerful inverter welder that excels in both MMA and TIG DC Lift applications. Its advanced features and robust construction make it a top choice for professionals who demand performance and precision.
