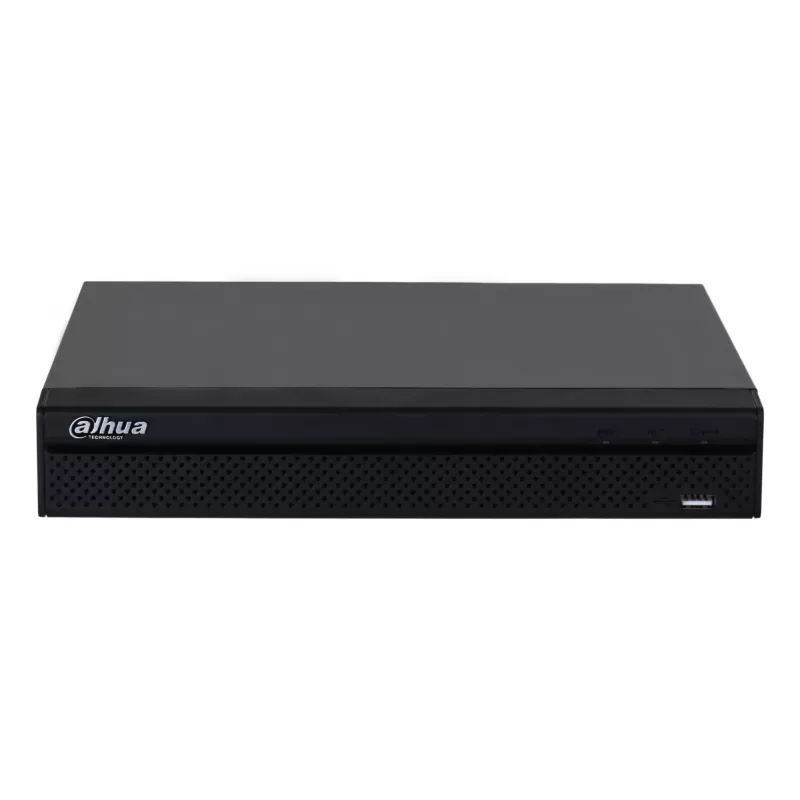

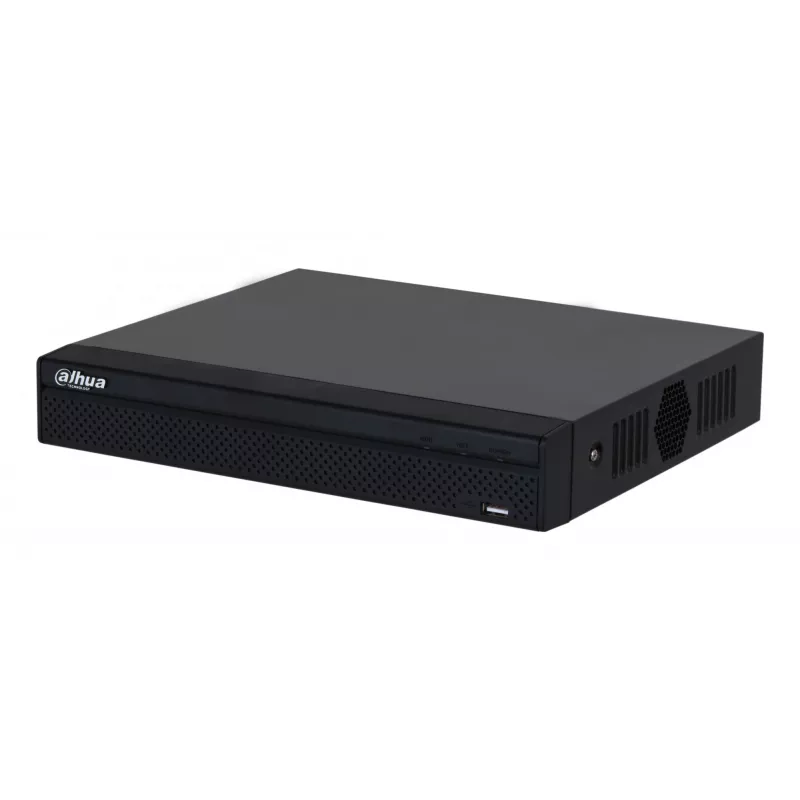

NVR Dahua Technology Lite NVR2104HS-4KS3 4 canali 4K nero

The NVR2000-4KS3 Lite Series network video recorder supports 4K resolution and is designed for use as edge, central, or backup storage. It provides an intuitive shortcut menu for remote management and includes Smart Motion Detection (SMD) by recorder to distinguish vehicles and humans in real time. The model is easy to install and cost-effective, suitable for villas, shops and other small to medium-sized scenes.

Advantages

The recorder offers 4K decoding capability and supports multiple video codecs including Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG. Built-in AI functions reduce false alarms by classifying moving targets and enabling perimeter protection at the camera level. The unit supports one-click arming/disarming and can be used as edge, central or backup storage for flexible deployment.

Key specifications

• Decoding formats: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
• Maximum decoding capability: 6 × 1080p@30 fps
• Bandwidth (incoming/recording/outgoing): up to 80/80/60 Mbps
• Maximum supported IP camera resolution: 12 MP
• AI by recorder: 4-channel Smart Motion Detection (SMD)
• AI by camera: perimeter protection and SMD
• One-click arming and disarming supported
• Video input channels: 4
• Output resolution: 3840 × 2160 pixels (4K)
• Input bandwidth: 80 Mbit/s; Output bandwidth: 60 Mbit/s
• Maximum storage capacity: 20 TB (SATA HDD)

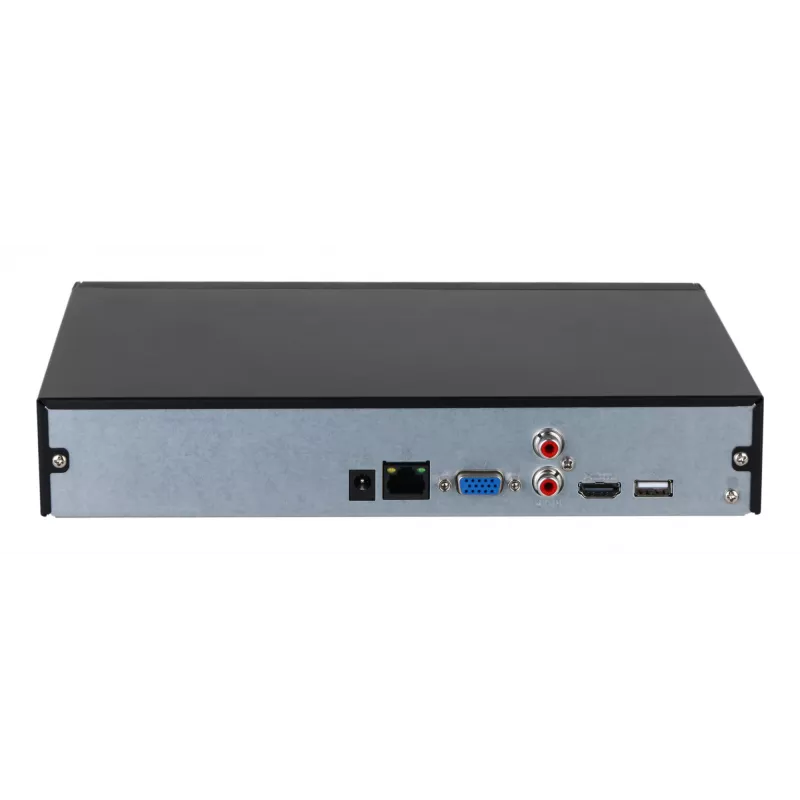

• Ethernet LAN (RJ-45) ports: 1
• Form factor: 1U rack mount
• Color: Black

How to use

Install the NVR in a suitable 1U rack space or on a stable surface and connect to the network via the RJ-45 port. Attach compatible IP cameras (up to 12 MP) to the NVR and configure recording channels through the shortcut menu for remote management. Enable AI features such as SMD or camera-based perimeter protection in the recorder settings to reduce false alarms. Configure storage by installing a SATA HDD (up to 20 TB) and set recording schedules, encoding formats and bandwidth limits as required.

Recommendations

For accurate motion detection, calibrate SMD settings and perimeter zones after camera installation and maintain firmware updates. Use quality CAT5e/CAT6 cabling and a stable network switch to ensure reliable 4K streaming and recording.
