OBO Bettermann DSK47F distanziale 80x47x40 mm acciaio zincato a caldo 6416504

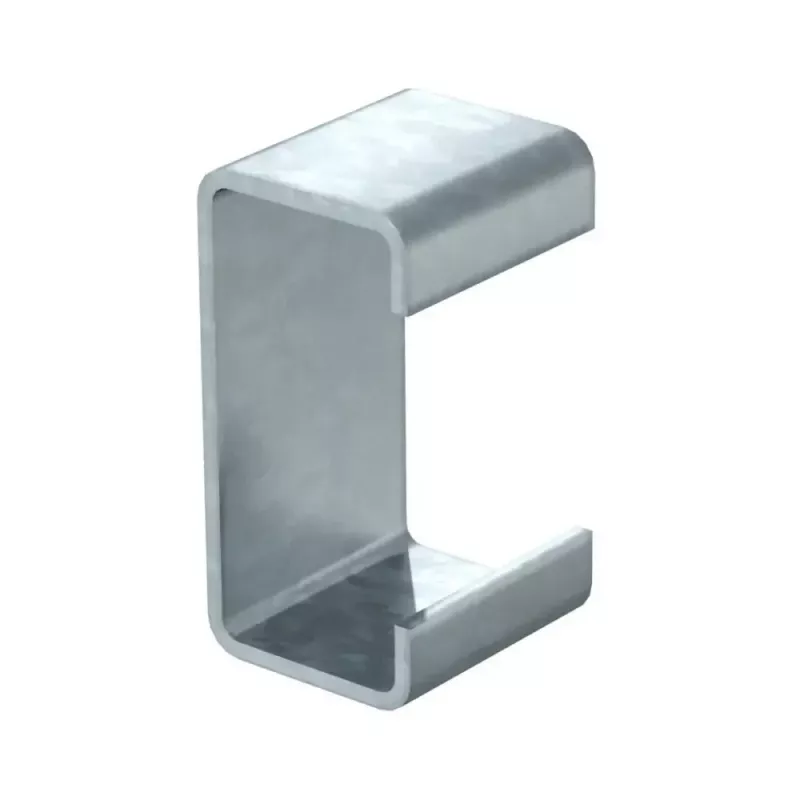

The DSK47F spacer from OBO Bettermann creates a fixed 40 mm clearance between cable trays, mesh trays or ladders and the mounting surface. Its hot-dip galvanized steel body provides high corrosion resistance, making it suitable for both indoor and outdoor electrical installations. The part measures 80 mm long, 47 mm wide and 40 mm high, with four 7 mm mounting holes: two for the surface and two for the tray.

Highlights

• Creates a defined distance for cable support systems
• Hot-dip galvanized steel for long service life
• Four 7 mm holes for secure screw-on mounting
• Compatible with cable trays, mesh trays and cable ladders

Full specifications

• Product type: Spacer / Distance Piece
• Material: Steel
• Surface finish: Hot-dip galvanized (tZn)
• Overall length: 80 mm
• Overall width: 47 mm
• Overall height: 40 mm
• Mounting method: Screw-on
• Number of mounting holes: 4
• Hole diameter: 7 mm
• Colour: Metallic Grey
• Application: Indoor and outdoor

Final note

A reliable spacing solution for professional cable management installations.
