OBO Bettermann LK4 30025 Canalina di cablaggio, fessurata, 30x25 mm, 2 m, grigia 6178005

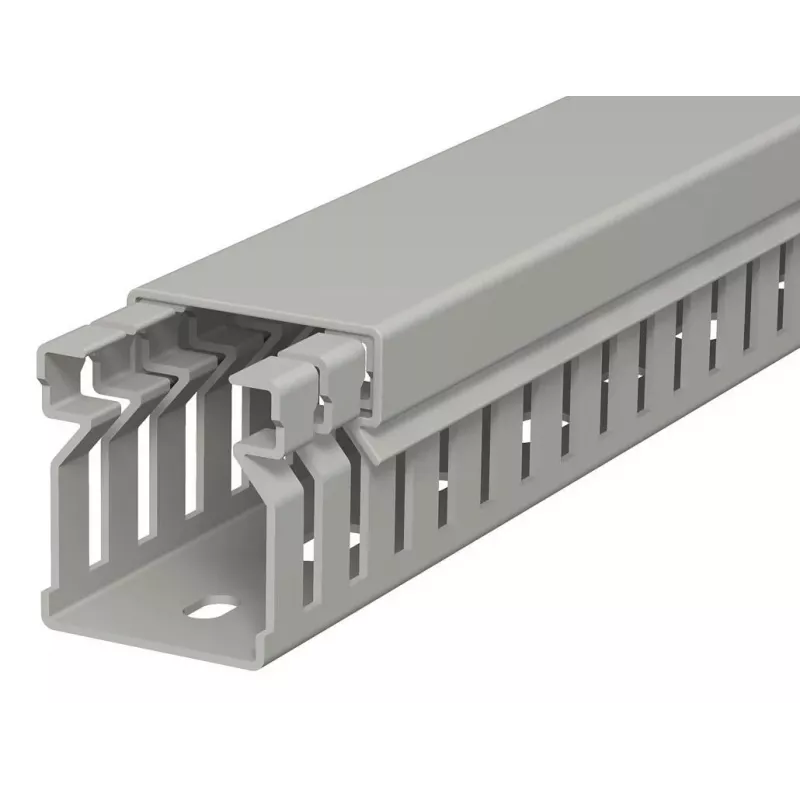

The LK4 30025 from OBO Bettermann is a slotted wiring duct engineered for efficient cable routing in control cabinets and electrical installations. Its 30 mm width and 25 mm height provide a compact profile, while the finger-type slots allow cables to be branched off at any point without cutting the duct. Made from grey PVC (RAL 7035), it blends into standard cabinet interiors and withstands temperatures from -5 to +60 °C.

Highlights

• Slotted design with 4.5 mm slot width and 6.5 mm spacing for flexible cable entry
• Pre-punched base for quick screw or rivet mounting
• UL94 V-0 flammability rating for enhanced fire safety
• Compatible with standard covers (cover included)

In daily use

Installers appreciate the LK4 30025 for its clean appearance and ease of modification. The PVC material is easy to cut to length, and the slots allow wires to exit at any point, reducing installation time. The grey colour matches most enclosures, and the duct can be mounted directly to panels or rails.

Full specifications

• Product type: Wiring duct
• Material: PVC
• Colour: Grey (RAL 7035)
• Dimensions (W x H): 30 x 25 mm
• Length: 2000 mm
• Slot width: 4.5 mm
• Slot spacing: 6.5 mm
• Temperature range: -5 to +60 °C
• Flammability rating: UL94 V-0
• Mounting type: Base perforation
• Cover included: Yes

Final note

Choose the OBO Bettermann LK4 30025 for a reliable, standards-compliant wiring duct that keeps your cabinet wiring organized and accessible.
