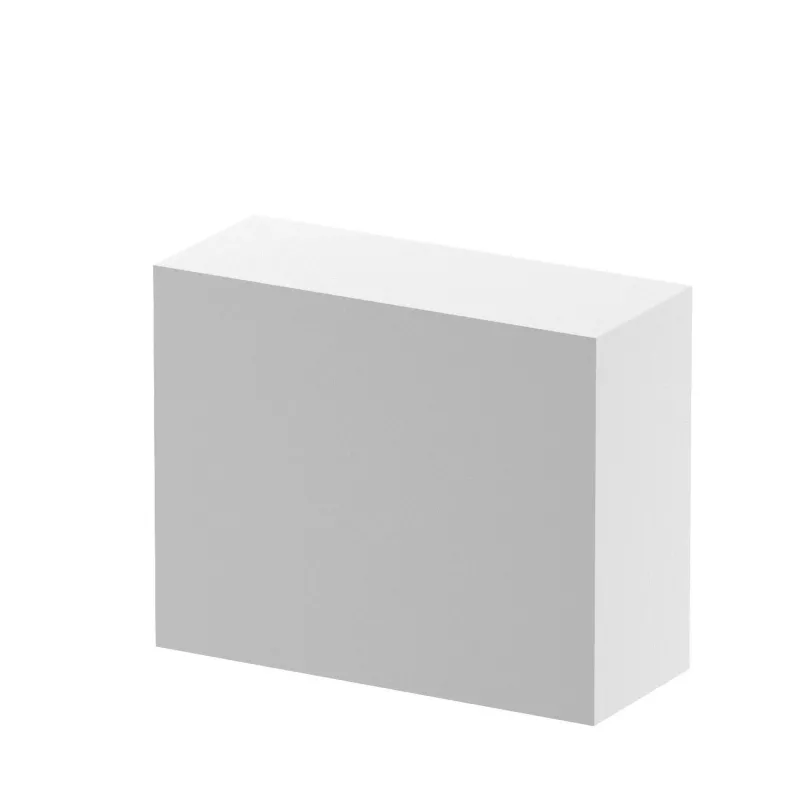

OBO Bettermann PLM CO 0810 Guarnizione in schiuma per uscita cavi, 80x100x10 mm, grigio 7218160

Installers and panel builders working with OBO Bettermann PLM series enclosures use this foam seal to close cable outlets cleanly and protect against dust and splash water. The seal is inserted into the cable outlet opening, where it compresses around cables to maintain the enclosure's protection level.

Key specifications

• Material: Polyurethane (PU) foam
• Dimensions: 80 mm width, 100 mm height, 10 mm thickness
• Colour: Grey
• Compatibility: OBO Bettermann PLM series enclosures
• Protection class achievable: IP55 when installed correctly
• Operating temperature range: -20 to +80 °C
• Halogen-free and silicone-free

Why choose it

The foam seal is a simple, push-in solution for cable management in enclosures. It provides reliable sealing without the need for additional tools or adhesives, and its polyurethane foam offers good resistance to temperature extremes and environmental factors.

Ideal use cases

• Sealing cable outlets in industrial control panels
• Maintaining IP55 protection in PLM enclosures
• Retrofitting existing installations with improved cable sealing

Good to know

The seal is halogen-free and silicone-free, making it suitable for applications where these substances are restricted. It is RoHS and REACH compliant.
