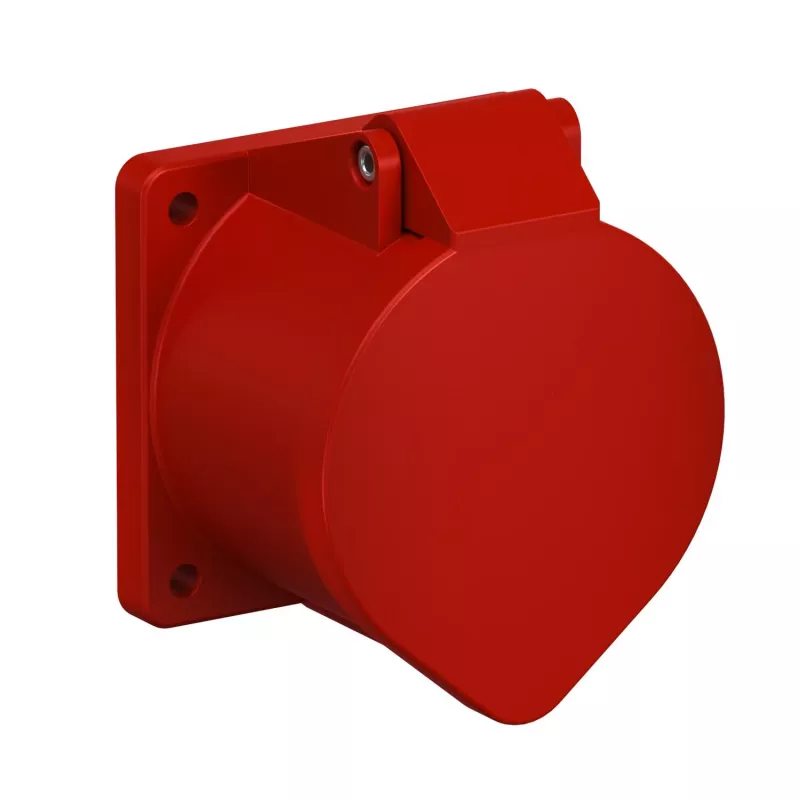

OBO Bettermann presa CEE da incasso 400V 32A 5 poli 6h IP44 rossa 6109876

In industrial workshops and commercial facilities, a reliable power connection is essential for heavy machinery. The OBO Bettermann CEE panel-mounted socket provides a robust 400 V, 32 A connection with 5 poles (3P+N+PE) and a 6h earth contact position, making it ideal for three-phase equipment.

Key specifications

• Socket type: CEE panel-mounted socket
• Number of poles: 5 (3P+N+PE)
• Rated voltage: 400 V
• Rated current: 32 A
• Frequency: 50/60 Hz
• Earth contact position: 6h
• Protection degree: IP44
• Mounting flange dimension: 60 mm
• Connection type: Screw terminals
• Housing material: Polyamide (PA)
• Colour: Red
• Standard: IEC 60309-1, IEC 60309-2
• Application area: Industrial, Commercial
• Temperature range: -25°C to +40°C
• Flange shape: Square

Why choose it

This socket is built for demanding environments, with a polyamide housing that withstands mechanical stress and an IP44 rating for protection against splashing water. The screw terminals ensure a secure and durable connection.

Ideal use cases

• Connecting three-phase machinery in workshops
• Power distribution in commercial buildings
• Outdoor installations where splash protection is needed

Good to know

The 60 mm mounting flange allows for easy installation on standard panels. The red colour indicates a voltage of 400 V according to IEC 60309 standards.
