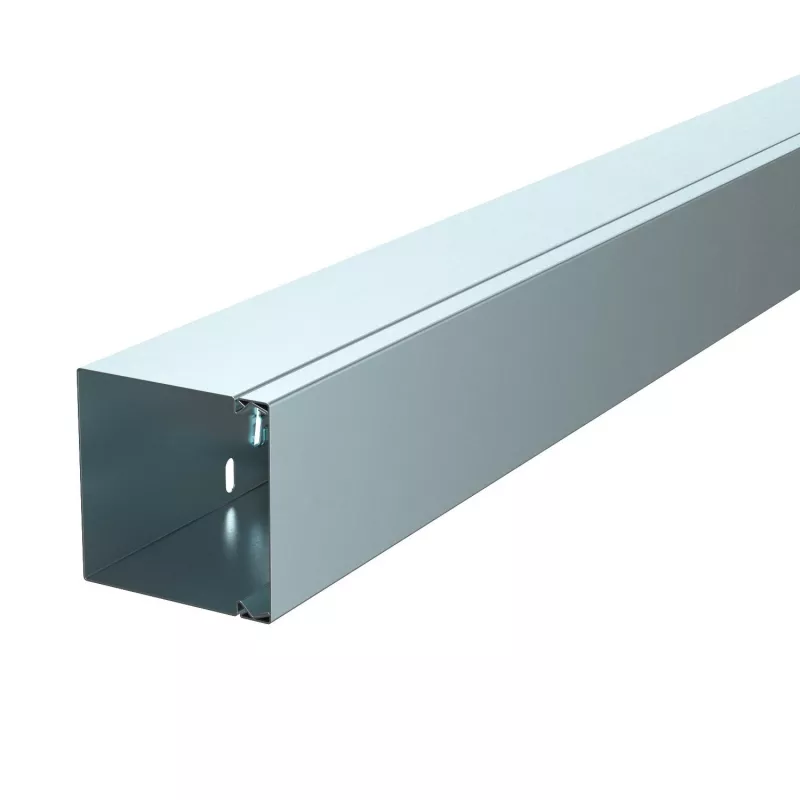

OBO BETTERMANN Vertr canale portacavi 80x80x2000 lamiera d'acciaio zincata a nastro coperchio a scatto 6247194

Electricians and facility managers routing power or data cables along walls or ceilings in commercial and industrial buildings will find this OBO BETTERMANN cable duct a dependable solution. The 80x80x2000 mm steel duct provides a clean, protected pathway for cables, with a snap-on lid for quick access during installation and maintenance.

Key specifications

• Material: Steel, strip galvanised
• Dimensions: 80 mm width, 80 mm height, 2000 mm length
• Single compartment with solid side walls
• Snap-on lid
• Perforated base for mounting
• Halogen-free
• IP20 protection rating
• Operating temperature: -5 °C to +60 °C
• Compliant with DIN EN 50085-1 and DIN EN 50085-2-1

Why choose it

The strip-galvanised steel construction offers robust mechanical protection for cables in indoor environments. The snap-on lid allows for fast installation and re-entry when adding or servicing cables. The perforated base simplifies fixing to walls or ceilings, reducing installation time.

Ideal use cases

• Routing power cables in workshops and production areas
• Organising data and communication cables in offices
• Protecting cables along walls in warehouses
• Ceiling-mounted cable runs in commercial buildings

Good to know

The duct is halogen-free, which means it does not emit corrosive gases in the event of fire. It is suitable for wall and ceiling mounting. The metallic finish provides a neutral appearance that blends with industrial interiors.
