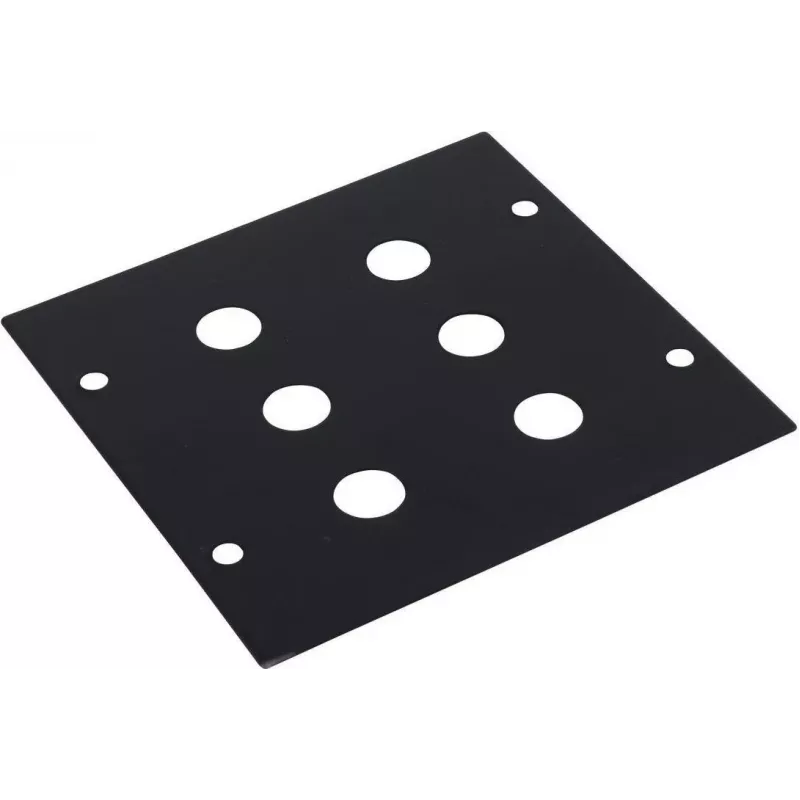

Omnitronic Modul 2HE pannello con 6x connettori femmina jack, 88×88 mm

The Omnitronic module 2U panel with 6x jack connectors, 88×88 mm is a compact rack-mountable audio module designed to provide six front-access jack connections in a standard 2U format. The 88×88 mm front panel fits into modular rack frames and offers tidy, easily reachable jack routing for studio, live sound, and AV installations where space efficiency and orderly cabling are required.

Advantages

This Omnitronic 2U module consolidates multiple jack connections into a small footprint, simplifying front-panel access without occupying excessive rack space. Its standardized 88×88 mm panel dimensions ensure compatibility with common modular mounting systems. The device reduces cable clutter by centralizing connections and supports straightforward replacement or reconfiguration of connected equipment.

Suitable for

Key specifications

How to use

Install the module into a compatible modular rack frame or mounting plate sized for an 88×88 mm 2U module, ensuring secure fastening with appropriate screws or mounting clips. Route audio cables to the rear or internal connection points as required by your rack system and connect instruments or line-level devices to the six front jack connectors. Verify signal routing and continuity before applying full system power, and label connected channels for easier identification during operation.

Recommendations

For reliable operation, use quality shielded cables and avoid excessive mechanical strain on jack connectors by securing cable runs. Regularly inspect front jacks for wear and ensure mounting hardware remains tight to prevent panel movement in mobile or high-vibration environments.
