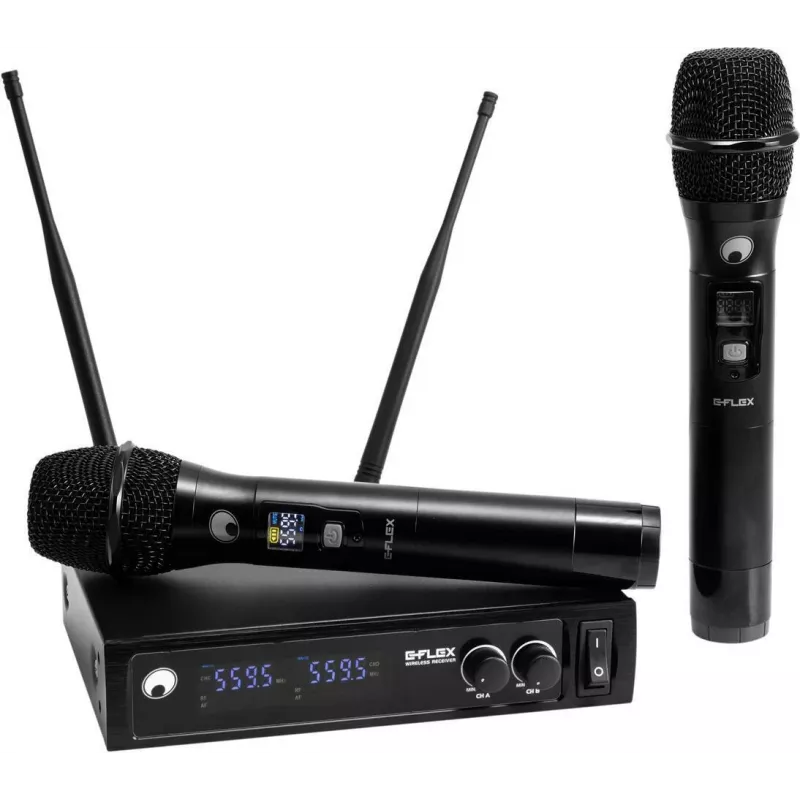

OMNITRONIC UHF E-FLEX 2 sistema microfonico wireless 559-575 MHz 13063371

Wireless microphone systems often suffer from interference, limited range, and poor audio quality, especially in venues with multiple RF devices. The OMNITRONIC UHF E-FLEX 2 solves these issues by operating in the UHF band (559-575 MHz) with 16 selectable channels and FM modulation, delivering clear, reliable audio for live performances, presentations, and events.

Who is it for

This system is ideal for musicians, DJs, presenters, and houses of worship who need a dependable wireless handheld microphone without the complexity of high-end multi-channel setups. It is also suitable for small to medium venues, conference rooms, and mobile entertainers.

Main features

• UHF wireless operation with 16 selectable channels for flexible frequency management
• FM modulation ensures stable signal transmission with low noise
• Frequency response of 40 Hz - 18 kHz captures full vocal range with clarity
• Signal-to-noise ratio >105 dB and THD <0.5% for pristine audio
• Dynamic range >96 dB handles loud and soft passages without distortion
• Handheld transmitter with 10 mW RF output and LCD display for easy monitoring
• Receiver with balanced XLR and unbalanced 6.3 mm jack outputs for versatile connectivity
• Metal receiver housing with rack-mount option (1U half-rack) for professional installation
• Up to 50 meters operating range (line of sight) for freedom of movement
• Supports up to 8 simultaneous systems (recommended) for multi-microphone setups

Specifications

• System type: UHF wireless microphone system
• Operating frequency range: 559-575 MHz
• Number of selectable channels: 16
• Modulation type: FM
• Frequency response: 40 Hz - 18 kHz
• Signal-to-noise ratio: >105 dB
• Total harmonic distortion: <0.5%
• Dynamic range: >96 dB
• Receiver audio outputs: 1x XLR balanced, 1x 6.3 mm jack unbalanced
• Transmitter type: Handheld microphone
• Transmitter RF output power: 10 mW
• Transmitter power supply: 2x 1.5 V AA batteries
• Receiver power supply: 12 V DC, 500 mA (via included AC adapter)
• Operating range: Up to 50 meters (line of sight)
• Display: LCD (receiver and transmitter)
• Simultaneous systems: Up to 8 (recommended)
• Receiver antenna connector: 2x BNC
• Receiver housing material: Metal
• Rack mountable: Yes (with optional rack kit, 1U half-rack size)

Tips

For optimal performance, position the receiver antennas in a V-shape and keep line of sight between transmitter and receiver. When using multiple systems, select channels that are at least 2 MHz apart to avoid intermodulation. Always use fresh alkaline batteries in the transmitter for consistent performance.
