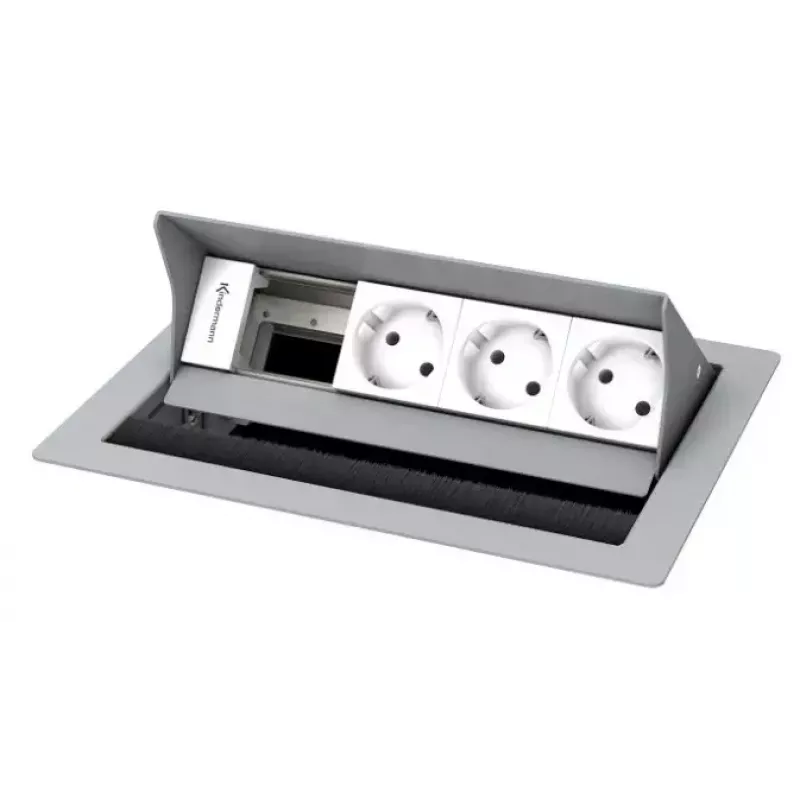

Outlet box Kindermann CablePort standard² Type F argento bianco

The Kindermann CablePort standard² Type F outlet box is a desktop casing designed for four inset modules. It is made from powder-coated steel in RAL 9006 silver and comes pre-fitted with three Schuko mains sockets and one empty module for individual configuration using Konnect flex 45 adapter plates. The unit measures 250 mm wide by 190 mm deep, has an installation depth of 65 mm and is suitable for desktops up to 40 mm thick.

Advantages

Quick mounting is enabled by a click mechanism, and the level-mounted interfaces create a homogeneous appearance. The design is compatible with media control modules and USB chargers, and the device allows easier mounting into desktop surfaces for integrated installation. Power input uses a 3-pin GST 18 plug.

Suitable for

Key specifications

How to use

Cut a hole in the desktop sized to the product specifications and place the CablePort into the opening. Configure the empty module with Konnect flex 45 adapter plates as required for power, data or media modules. Secure the unit using the built-in click mechanism and connect mains power with the 3-pin GST 18 plug. Ensure the desktop thickness does not exceed 40 mm and that the installation depth of 65 mm is observed.

Recommendations

Install the outlet box in compliance with local electrical regulations and, if necessary, have the mains connection carried out by a qualified electrician. Verify compatibility of any inserted modules (media control, USB chargers) with the Konnect flex 45 adapter system before final installation.
