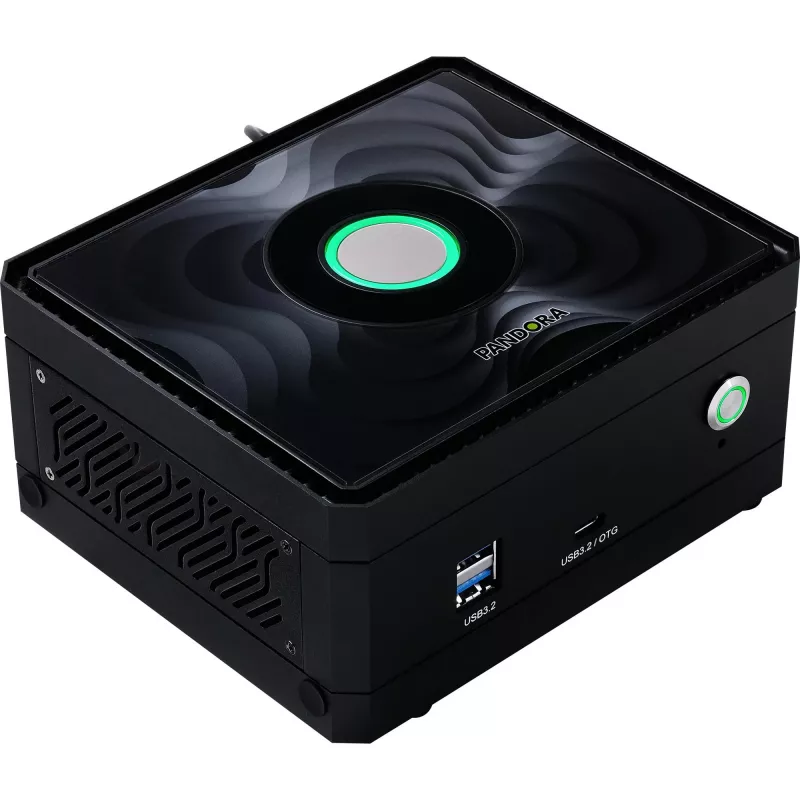

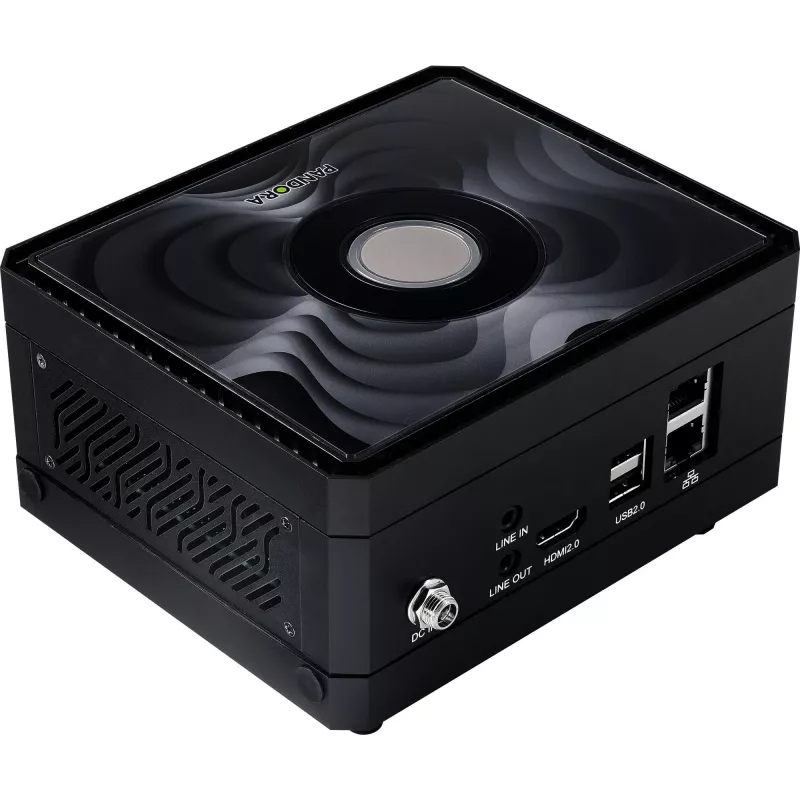

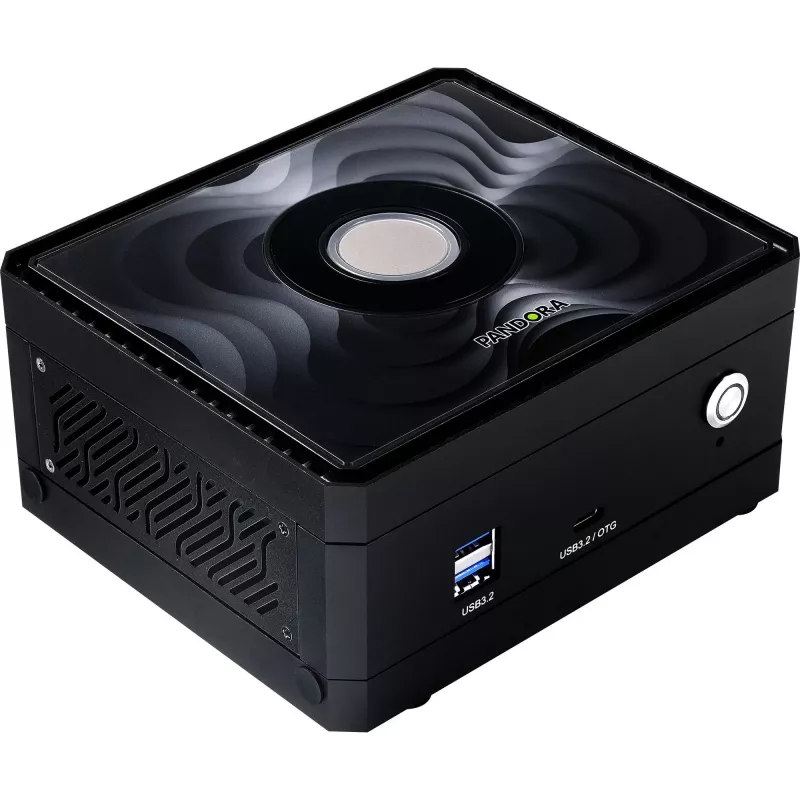

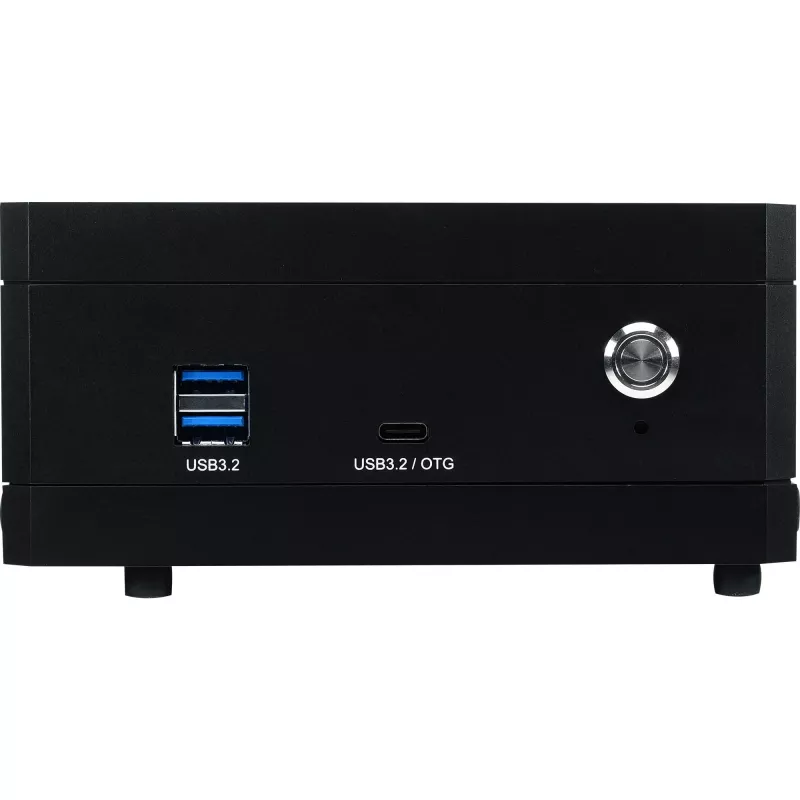

Palit Pandora NVIDIA Jetson Orin NX Super 16GB (nero, Linux)

The Palit Pandora NVIDIA Jetson Orin NX Super 16GB is a compact, fanless AI edge computing device powered by the NVIDIA Jetson Orin NX module. It delivers up to 100 TOPS of AI performance, making it ideal for robotics, industrial automation, and intelligent vision applications.

Advantages

High AI performance in a rugged, fanless design. Wide input voltage range (9-36V DC) and extended operating temperature (-25°C to 80°C) ensure reliable operation in harsh environments. Rich I/O including dual Gigabit Ethernet, HDMI 2.0, USB 3.2 Gen 2, serial ports, CAN bus, and digital I/O. Expandable via M.2 Key M (NVMe), M.2 Key E (Wi-Fi/BT), and Mini PCIe (4G/5G) slots.

Suitable for

• AI edge computing and inference
• Autonomous robots and drones
• Industrial machine vision
• Smart retail and surveillance
• Medical imaging devices

Key specifications

• AI Accelerator: NVIDIA Jetson Orin NX 16GB Module
• AI Performance: Up to 100 TOPS (INT8)
• GPU: NVIDIA Ampere with 1024 CUDA Cores, 32 Tensor Cores
• CPU: 8-core ARM Cortex-A78AE v8.2 64-bit @ 2.0 GHz
• System Memory: 16GB 128-bit LPDDR5 @ 68 GB/s
• Onboard Storage: 64GB eMMC 5.1
• Storage Expansion: 1x M.2 Key M 2280 (NVMe)
• Video Output: 1x HDMI 2.0
• USB: 2x USB 3.2 Gen 2 Type-A, 2x USB 2.0 Type-A
• Ethernet: 2x Gigabit RJ45
• Serial: 1x RS-232/422/485 (DB9), 1x RS-232 (pin header)
• CAN Bus: 1x CAN Bus (pin header)
• Digital I/O: 4x DI, 4x DO
• Wireless Expansion: 1x M.2 Key E 2230 (Wi-Fi/BT)
• Cellular Expansion: 1x Mini PCIe (4G/5G) with SIM slot
• Operating System: Linux (NVIDIA JetPack SDK)
• Power Input: DC 9-36V
• Cooling: Fanless
• Operating Temperature: -25°C to 80°C
• Chassis: Aluminum Alloy

Recommendations

For optimal performance, pair with an NVMe SSD and a compatible Wi-Fi/BT module. Use a regulated DC power supply within 9-36V range.
