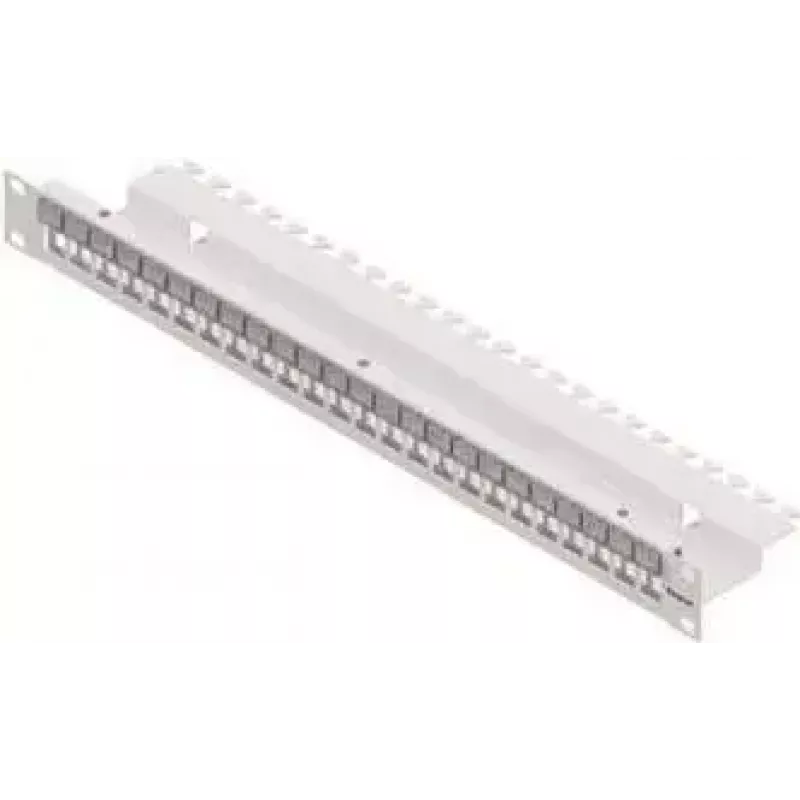

Pannello di montaggio 19" zvk gmbh CKVPL0B01E per 24 moduli Keystone

The 19" mounting panel by zvk gmbh is designed to hold 24 Keystone modules in a standard rack environment. It provides a compact and standardized solution for organizing network and telecommunication connectors in data cabinets, server rooms and communication racks. The panel's form factor is compatible with 19-inch racks and allows front-access mounting of Keystone jacks for streamlined patching and maintenance.

Advantages

This mounting panel offers a space-efficient layout for 24 Keystone modules, simplifying cable management and reducing clutter at patching points. The standardized 19" format ensures compatibility with common racks and enclosures, while the front-facing module openings allow quick access for insertion, replacement or reconfiguration of Keystone jacks. The panel supports tidy labelling and grouping of ports to facilitate troubleshooting and organized infrastructure deployment.

Suitable for

• Rack-mounted network switches and patch panels in data centers
• Server rooms and telecommunications closets
• Structured cabling installations requiring Keystone jacks
• Small to medium business network racks and wall-mounted cabinets

Key specifications

• Form factor: 19-inch rack-mount panel compatible with standard rack units
• Module capacity: 24 Keystone module openings
• Mounting position: front-access panel for easy patching and module replacement
• Material characteristics: rigid panel construction suitable for installed jacks and cabling
• Finish and colour: rack-compatible finish for integration with network equipment

How to use

Install the panel in a standard 19" rack or cabinet using appropriate rack screws and mounting hardware. Insert Keystone modules into the panel openings from the front until they click or lock into place according to the module design. Terminate cabling on the back side of the installed Keystone jacks following the connector manufacturer's wiring scheme, then route and secure cables to reduce strain. Use clear labelling at each port to indicate function or destination for efficient management.

Recommendations

Ensure compatibility between the panel's Keystone openings and the chosen Keystone jacks before installation. Use cable management accessories to prevent strain on connectors and maintain signal integrity. When installing in high-density racks, plan port labelling and grouping to simplify future changes and maintenance.
