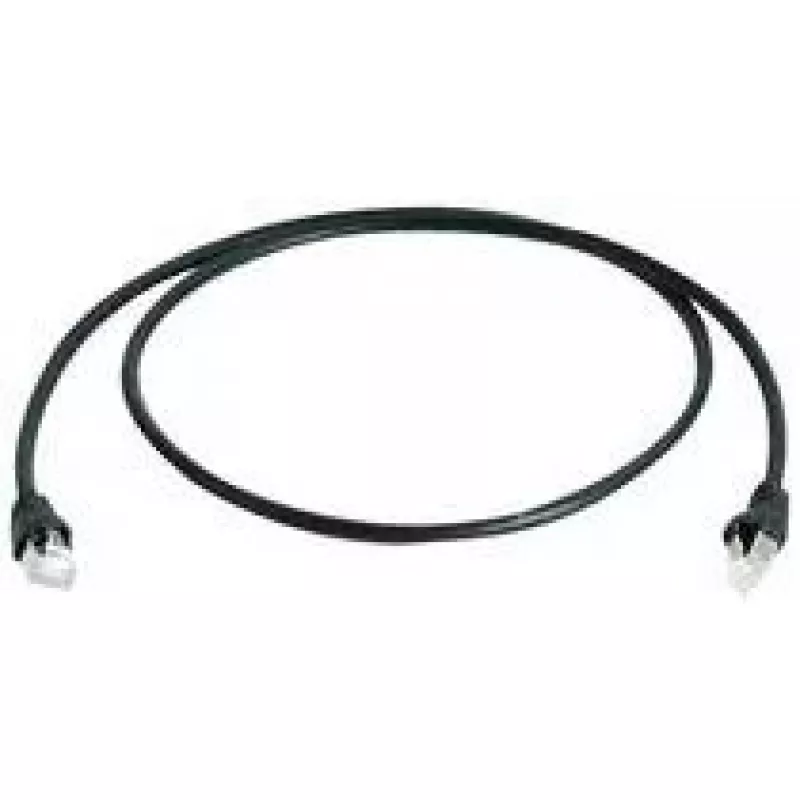

Patch cable Telegärtner MP8 FS 600 LSZH 7,5 m nero

The Telegärtner Patch Cord MP8 FS 600 LSZH 7.5m Black is a 7.5-metre network patch cable designed for reliable data transmission in office and data centre environments. The cable uses Li02YSCH 4x2xAWG 27/7 paired, internally parallel mixed-filled (PiMF) structure with AWG 27 (7x0.14 mm) stranded conductors, PE insulation (Ø 1.04 ±0.05 mm) and LSZH outer jacket (Ø 5.7 ±0.2 mm). It includes an overall Al-foil shield with an external conducting layer and a tin-plated copper braid, and is colour-coded according to ISO/IEC 11801.

Advantages

The cable construction provides durable mechanical performance with mating cycle durability greater than 750. LSZH jacket reduces toxic smoke and halogen release in case of fire. Combined foil and tin-plated braid shielding improve electromagnetic compatibility and help maintain signal integrity over the 7.5 m length. The stranded AWG 27 conductors and PiMF structure support stable, low-loss connections for patching applications.

Suitable for

• Permanent and temporary patching in data centres
• Office network patch panels and switches
• Cabling runs requiring LSZH materials for safety

Key specifications

• Length: 7.5 m
• Colour: Black
• Cable structure: Li02YSCH 4x2xAWG 27/7 PiMF
• Stranded wire: AWG 27 (7x0.14 mm)
• Insulation: PE; Ø 1.04 ±0.05 mm
• Overall shielding: Al-foil (outside conducting) + tin-plated copper braid
• Outer jacket diameter: 5.7 ±0.2 mm
• Colour code: ISO/IEC 11801
• Durability (mating cycles): > 750
• Brand: Telegärtner
• MPN: L00004A0060
• EAN: 4018359288204

How to use

Connect one end of the patch cord to the device or switch port and the other end to the patch panel or network device. Ensure connectors are fully inserted and that cable routing avoids sharp bends and strong mechanical stress. For best performance keep the cable length within intended 7.5 m and maintain proper cable management to prevent kinks or tight bends.

Recommendations

Use the patch cord in indoor environments where LSZH is required; avoid exposure to direct sunlight, oil, or solvents. When installing in rack or cabinet environments, secure slack and avoid exceeding the minimum bend radius to preserve shielding and signal quality.
