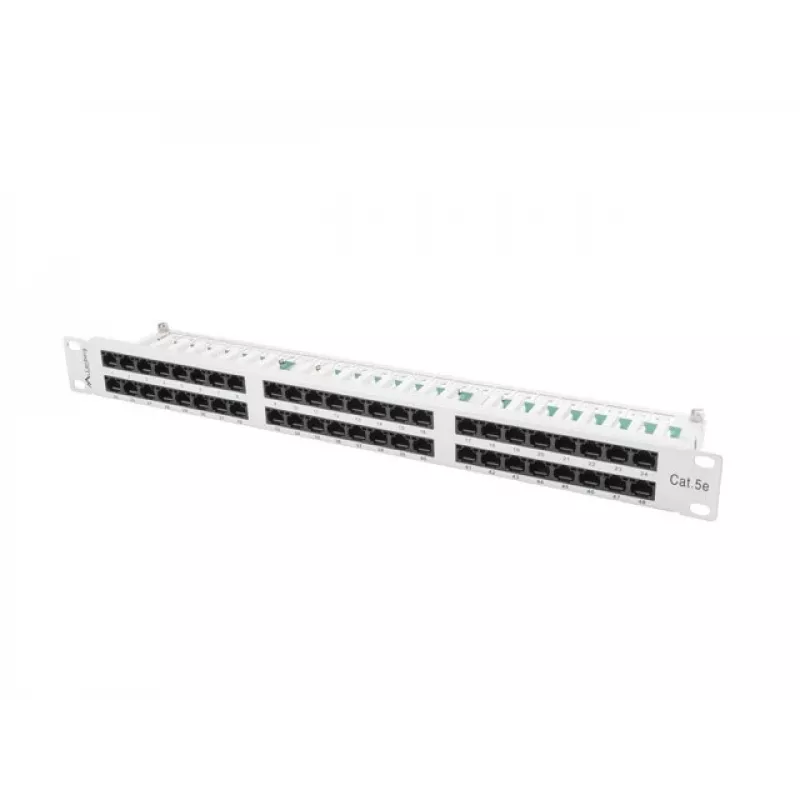

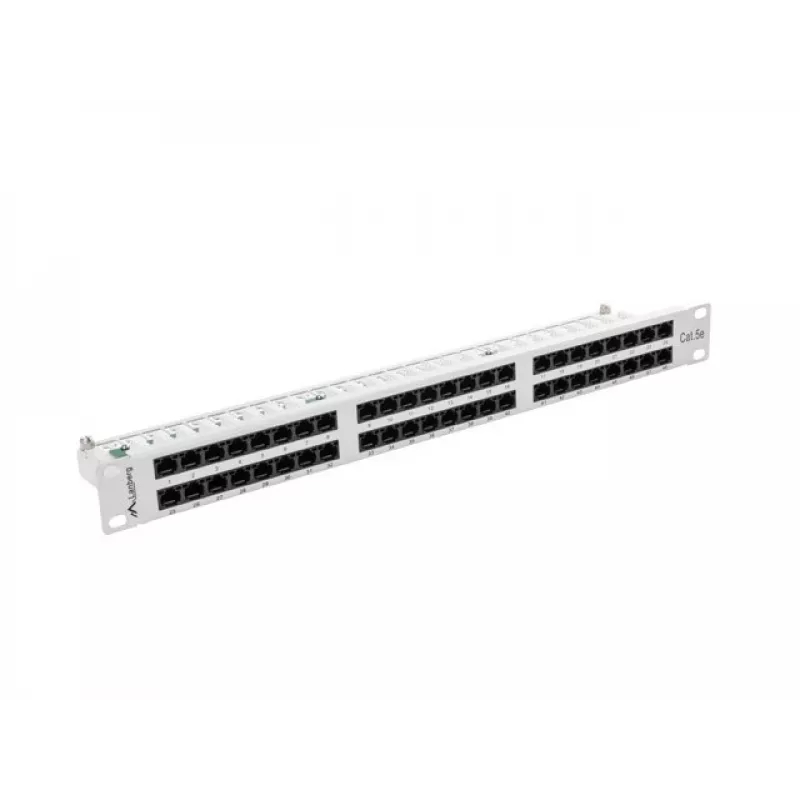

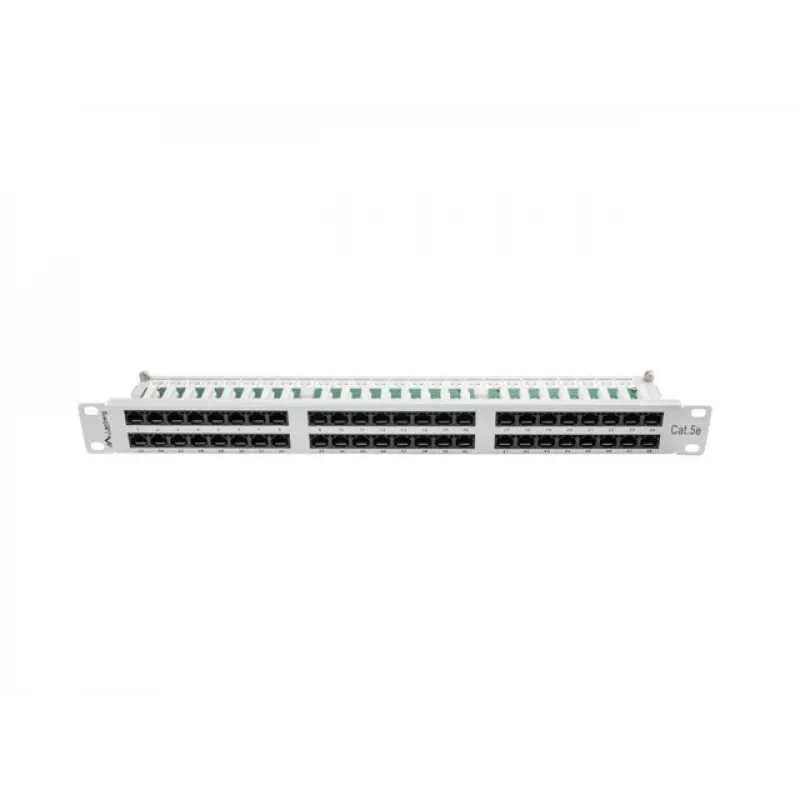

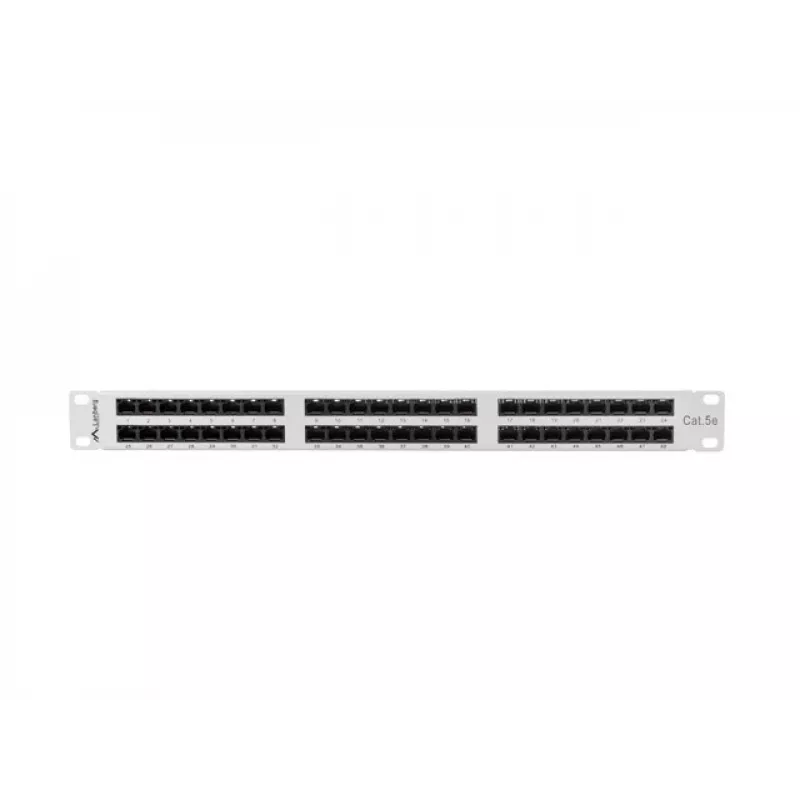

Patch Panel 1U Lanberg PPU5-1048-S

The Lanberg PPU5-1048-S is a 1U rack-mounted patch panel for structured cabling systems. It provides 48 unshielded RJ-45 ports compliant with category 5e and is intended for termination and organization of twisted-pair cables in 19" rack cabinets and distribution points of telecommunications networks. The panel is a passive element designed to work with Cat5/Cat5e installations and includes a cable management shelf and handles for stable assembly.

Advantages

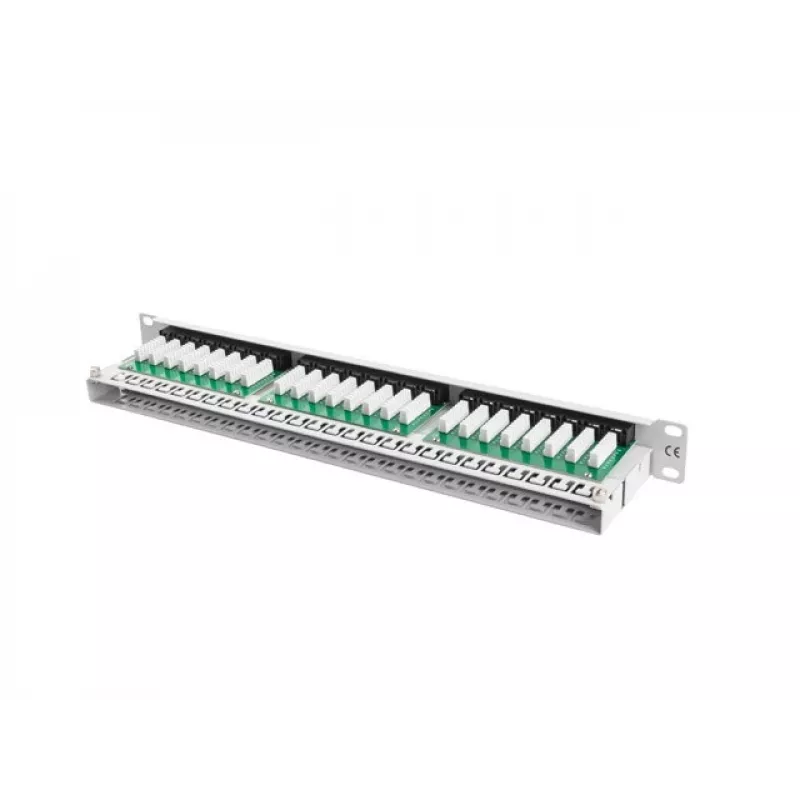

The patch panel uses IDC/LSA-style connectors to enable fast and reliable cable termination without special tooling. Its 1U compact format (445 mm width, 44.5 mm height, 102 mm depth) and grey finish help maintain a tidy and space-efficient rack layout while supporting 48 ports. A stiffened cable management shelf with handles improves cable routing and mechanical stability of the assembly.

Suitable for

• Termination and organization of Cat5/Cat5e twisted-pair cabling in server rooms
• Main and secondary distribution points in local area networks
• 19" rack installations requiring 48-port patching

Key specifications

• Model: Lanberg PPU5-1048-S
• Ports quantity: 48 RJ-45 (unshielded), Category 5e
• Form factor: 1U rack-mounted
• Dimensions (W×H×D): 445 mm × 44.5 mm × 102 mm
• Product colour: Grey
• Weight: 1.35 kg

How to use

Mount the patch panel in a standard 19" rack and secure it with appropriate screws. Terminate twisted-pair cables into the IDC/LSA connectors according to the chosen wiring standard (T568A or T568B). Route cables using the attached cable management shelf and handles to reduce strain and maintain orderly cabling. Connect patch cords to the front RJ-45 ports to link equipment to the structured cabling.

Recommendations

For reliable performance, use compatible Cat5 or Cat5e cables and follow proper termination procedures. Ensure correct cable labeling and maintain bend radius limits when routing cables through the management shelf.
