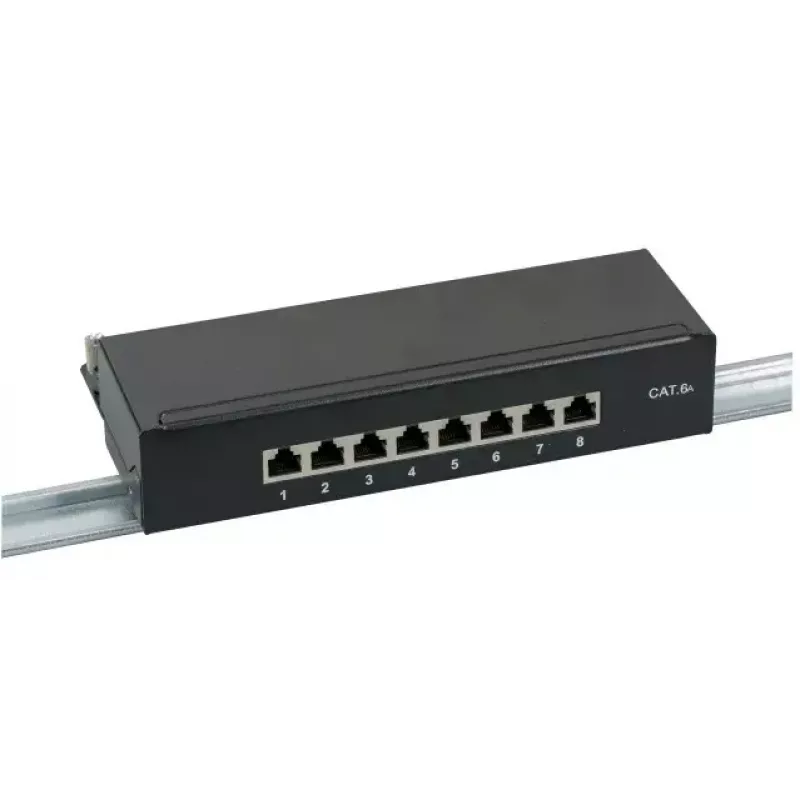

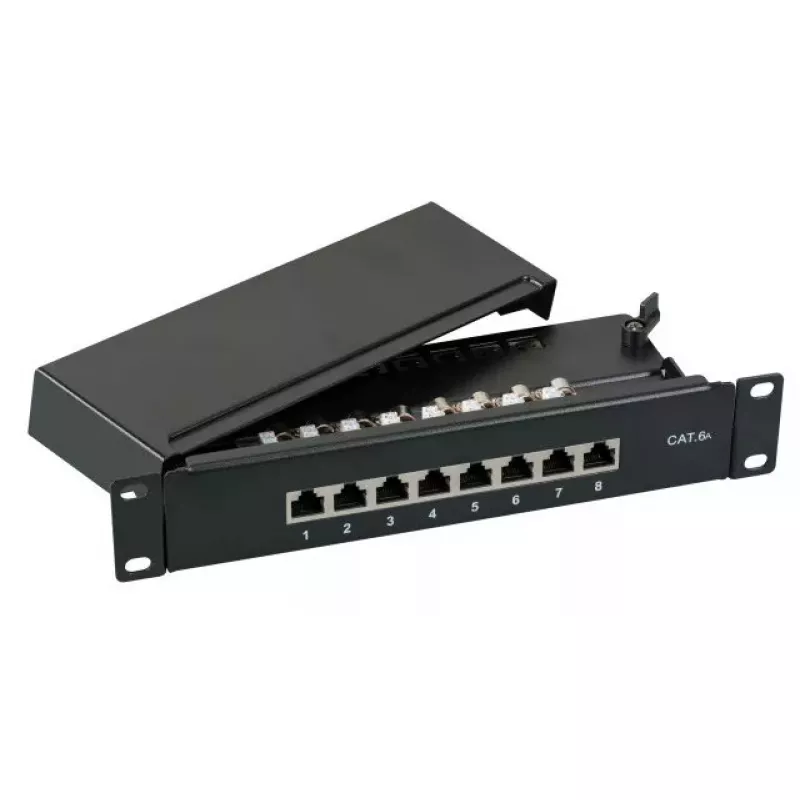

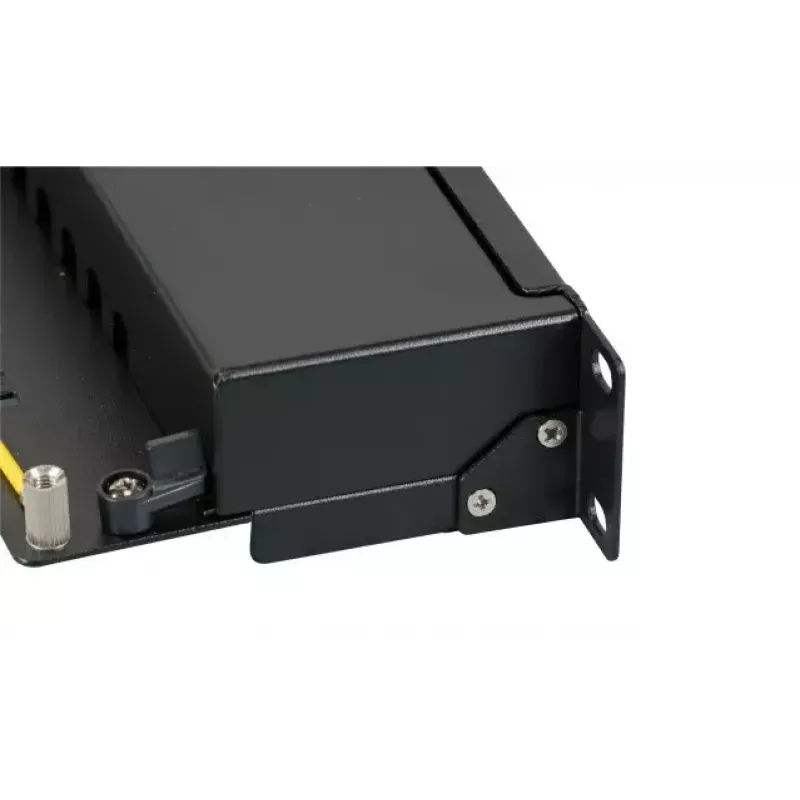

Patch panel EFB Elektronik 37737SW.8 RJ-45 10000 Mbit/s nero 1U

The EFB Elektronik 37737SW.8 patch panel is a 1U rack-mount panel designed to organize and terminate copper Ethernet cabling in network racks and cabinets. It provides RJ-45 ports with gold-plated contacts and supports data transmission up to 10000 Mbit/s. The panel's black finish and compact 1U height make it suitable for dense installations where space and orderly cable management are important.

Advantages

This patch panel uses RJ-45 connectors with gold-plated contacts to ensure reliable electrical connection and reduce corrosion over time. Its 1U rack form factor allows efficient use of rack space while providing a tidy front-facing interface for cable management. The black finish integrates with standard rack equipment and the panel is built to accommodate high-speed Ethernet links up to 10 Gbit/s, offering compatibility with modern network infrastructures.

Suitable for

• Data center patching and rack cable organization
• Enterprise and office network installations
• Server rooms and telecom cabinets
• Upgrading copper-based LANs to support 10 Gbit/s links

Key specifications

• Connector type: RJ-45
• Maximum data rate: 10000 Mbit/s (10 Gbit/s)
• Form factor: 1U rack-mount
• Contact finish: gold-plated contacts
• Colour: black

How to use

Install the panel into a standard 19-inch equipment rack using the mounting points provided, aligning it with adjacent rack units. Terminate horizontal copper cabling to the rear termination points according to the chosen wiring standard (T568A or T568B). Plug patch cords into the front RJ-45 ports to connect network devices, switches, or patch panels. Ensure cabling is routed and secured with appropriate cable management accessories to maintain signal integrity and prevent strain on terminations.

Recommendations

Use compatible Cat6a or higher-rated cabling and quality patch cords to achieve and maintain the panel's 10 Gbit/s performance. Follow recommended bending radii and secure cables with ties or trays to avoid mechanical stress on connectors. When terminating, verify wiring continuity and performance with a cable tester before putting links into production.
