Patch panel Lanview LVO231544 1U

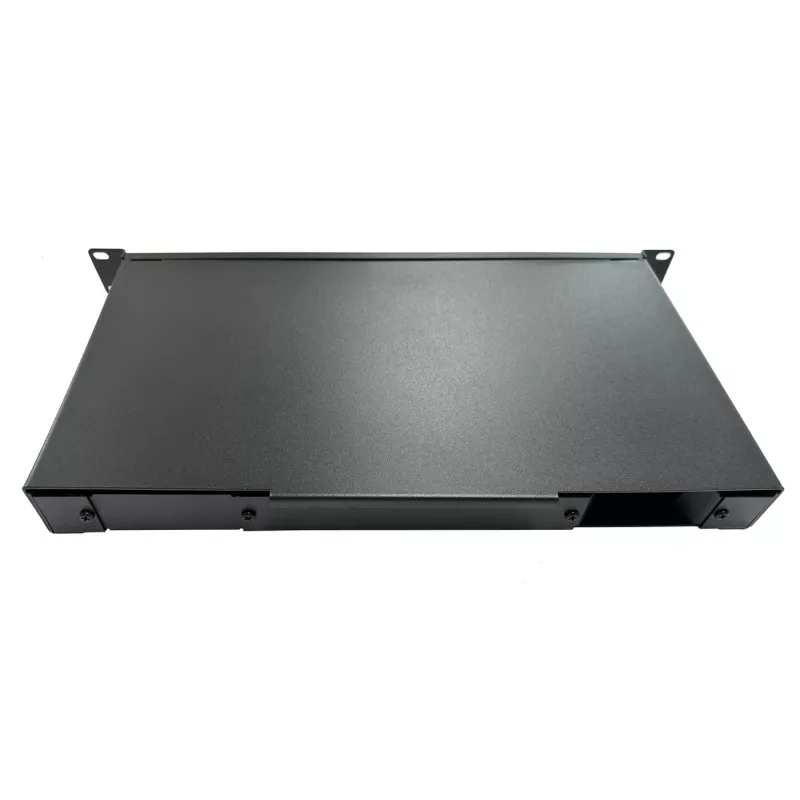

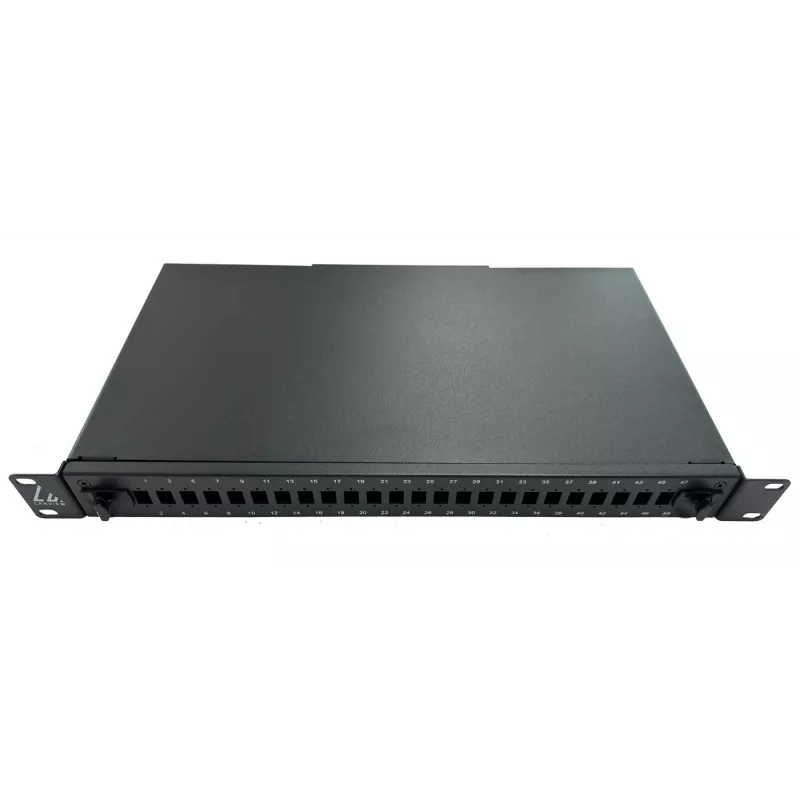

Lanview LVO231544 is a 19" 1U steel fibre patch panel for up to 24 SC Simplex or LC Duplex adapters. The unit is rack-mountable and finished in black, with a back side featuring four Ø20 mm inlets suitable for PG screw connections and two rectangular inlets (80 x 34 mm) supplied with blank plates. The panel includes rubber-coated strain relief compatible with blown-fibre and fixtures for splice cassettes to facilitate organized fibre management.

Advantages

The patch panel provides a compact 1U footprint to manage up to 24 fibre connectors and offers integrated cable stress relief and cable management cutouts for securing fibres with cable ties or velcro straps. Built from durable steel and finished in black, it supports orderly installation of splice cassettes and standard SC/LC adapters, making it suitable for structured fibre installations.

Suitable for

• 19" rack installations requiring up to 24 SC Simplex or LC Duplex connections
• Data centers and telecommunications cabinets for organized fibre termination
• Splice cassette-based fibre splicing and management
• Indoor blown-fibre or duct-installed fibre systems

Key specifications

• Form factor: 19" 1U rack-mount panel
• Adapter capacity: up to 24 SC Simplex or LC Duplex
• Material: steel
• Colour: black
• Back inlets: 4 × Ø20 mm (PG screw compatible) + 2 × 80 × 34 mm rectangular inlets with blank plates
• Strain relief: rubber-coated, suitable for blown-fibre

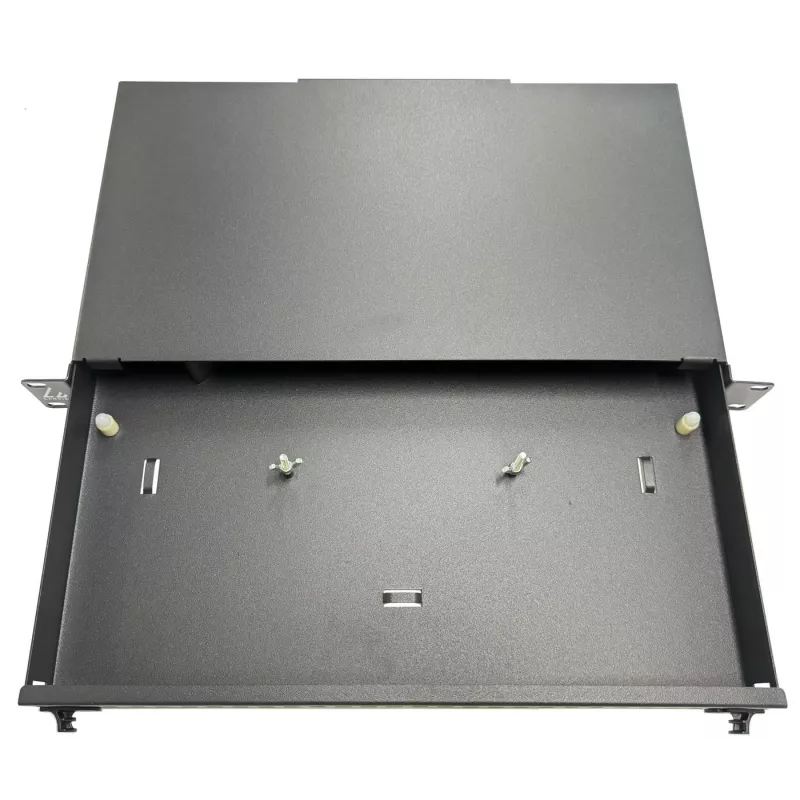

• Fixtures: for splice cassettes and cable management cutouts for cable ties/velcro
• Weight: 3.29 kg (product), package weight 3.7 kg

How to use

Mount the Lanview LVO231544 in a standard 19" rack occupying 1U of rack space. Install SC or LC adapters in the front panel up to the specified capacity, route incoming fibre through the provided back inlets, and secure cables using the rubber-coated strain relief and the cable management cutouts. If using splice cassettes, fit them into the fixtures and organize splices inside the cassette before closing the panel.

Recommendations

For best performance, ensure fibres are routed without tight bends and secured with cable ties or velcro at the cutouts to relieve stress. Use appropriate PG connectors for the Ø20 mm inlets and keep the rectangular inlet blank plates in place if not used to maintain dust protection.
