Phanteks D30-120 12 cm bianco 250–2000 U/min cuscinetto fluidodinamico

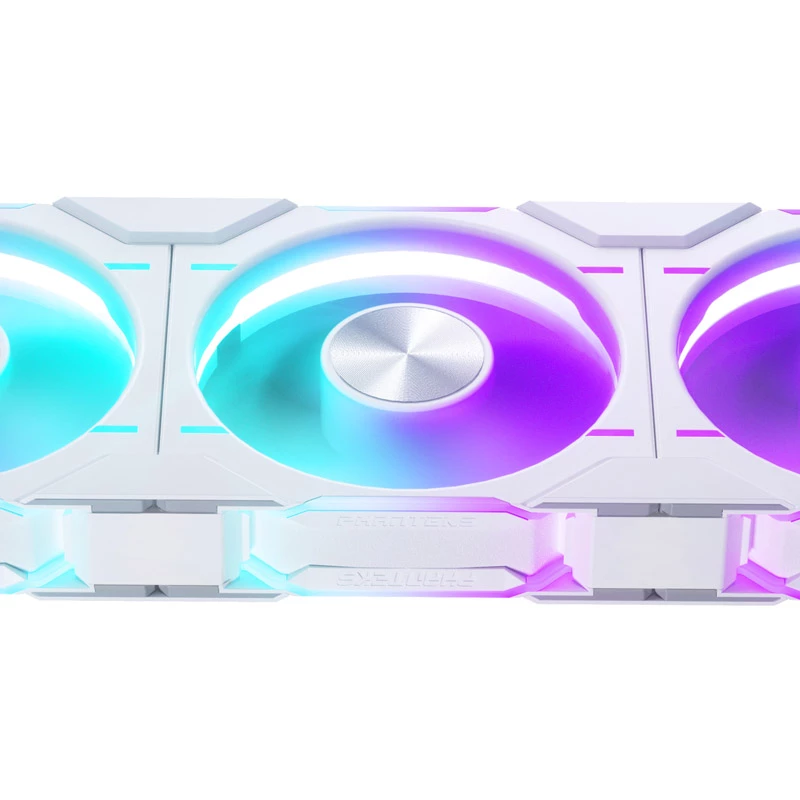

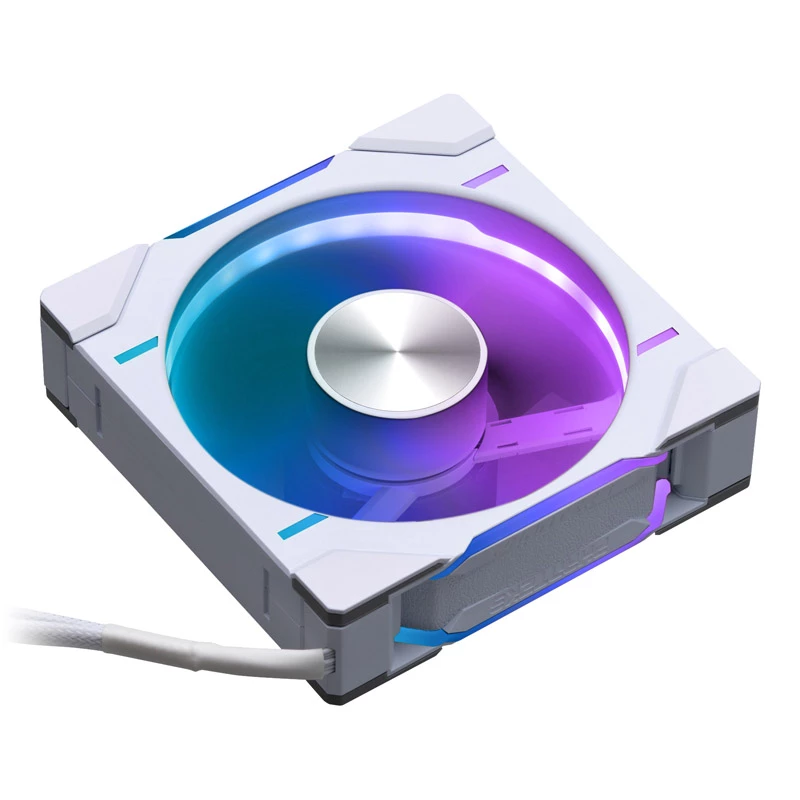

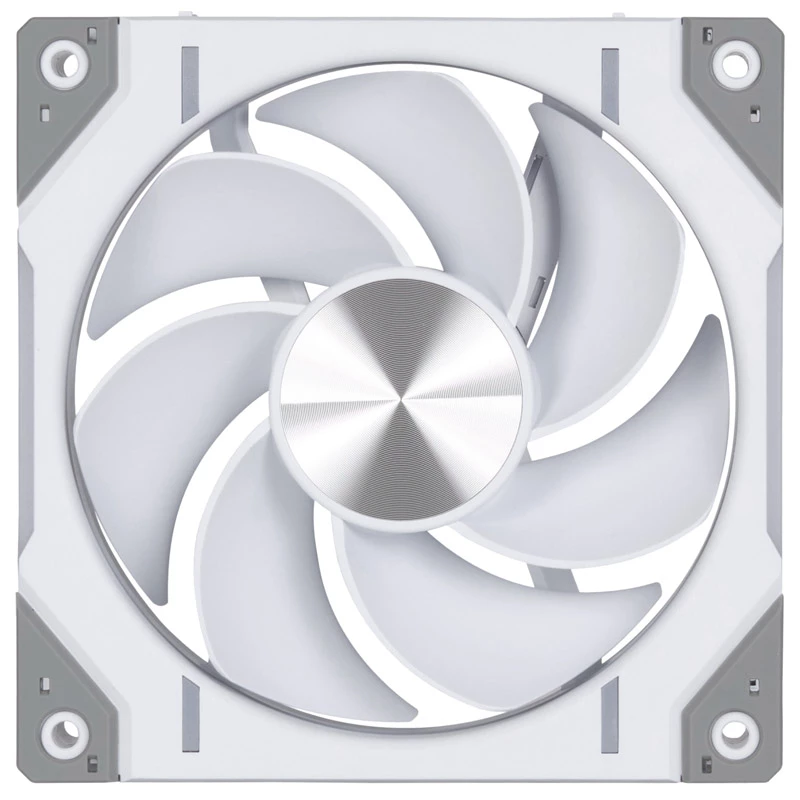

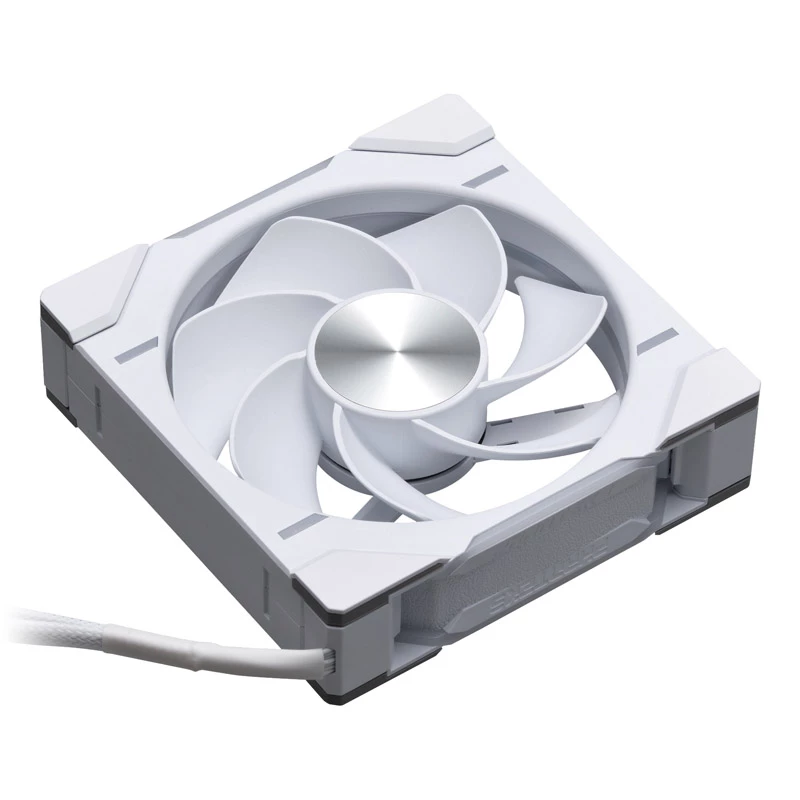

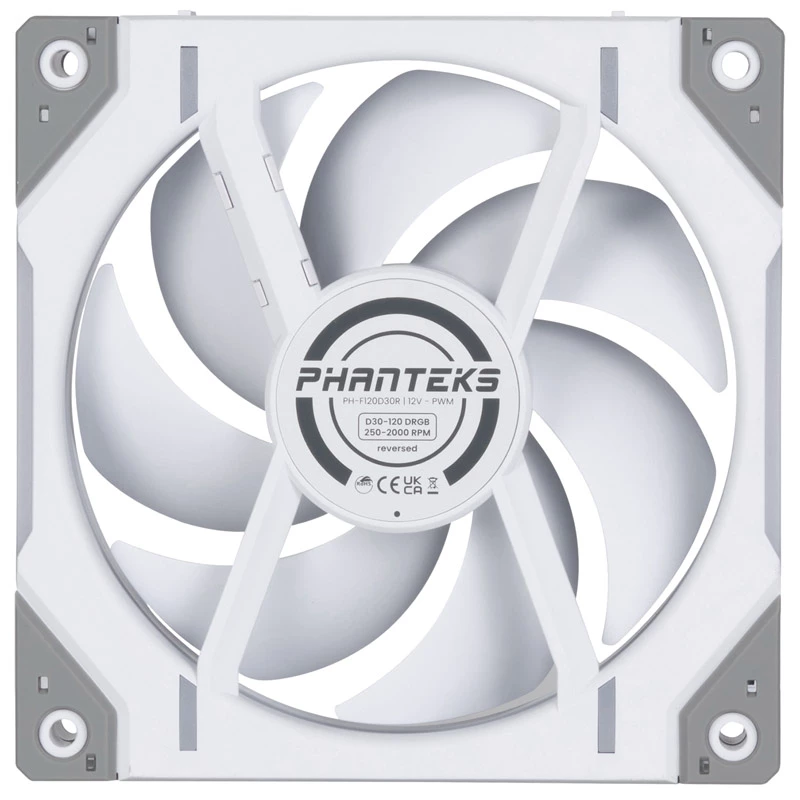

The Phanteks D30-120 is a 120 mm system fan with integrated D‑RGB lighting visible around the frame and on the blades. It is 30 mm thick with aerodynamic blades derived from the T30 design and uses a fluid dynamic bearing for long service life. The fan is available in regular and reversed airflow models, allowing flexible mounting to achieve either front-to-rear or rear-to-front airflow. The D30-120 supports motherboard Digital‑RGB control and can be linked with up to four fans using bridge connectors and screw cover plates for a clean multi‑fan appearance.

Advantages

The 30 mm thickness improves noise-normalized airflow and static pressure, making the fan suitable for radiators and mesh/dust filters. Integrated D‑RGB lighting and reflective blade surfaces create a uniform lighting effect around the fan. Bridge connectors and screw covers reduce visible cables and screws for a neater build. Standard PWM control lets you manage fan speed directly from the motherboard.

Suitable for

• Case cooling in desktop PCs
• Radiator fans for liquid cooling loops
• Cooling behind mesh or dust filters
• Systems where synchronized D‑RGB lighting is desired

Key specifications

• Fan diameter: 120 mm
• Thickness: 30 mm
• Speed range: 250–2000 RPM
• Bearing type: Fluid Dynamic Bearing
• Max static pressure: 2.72 mmH2O
• Operating voltage: 5–13.2 V
• Colour: White
• MPN: PH-F120D30R_DRGB_PWM_WT01
• EAN: 0886523003045

How to use

Mount the fan in the desired orientation depending on the required airflow direction: D30 Regular for front‑to‑rear airflow or D30 Reversed for rear‑to‑front airflow. Use the supplied bridge connectors to link up to four fans and apply the screw cover plates to hide mounting screws. Connect the fan's PWM power cable to a motherboard fan header for speed control and connect the Digital‑RGB cable to a compatible Digital‑RGB header or Phanteks controller to enable lighting control.

Recommendations

For radiator or filtered intake locations, use the D30 model that provides airflow from the cooler side toward the case or radiator to maximize static pressure and cooling efficiency. Enable PWM control in the motherboard BIOS to balance performance and noise. Ensure Digital‑RGB header compatibility before connecting lighting to avoid wiring conflicts.
