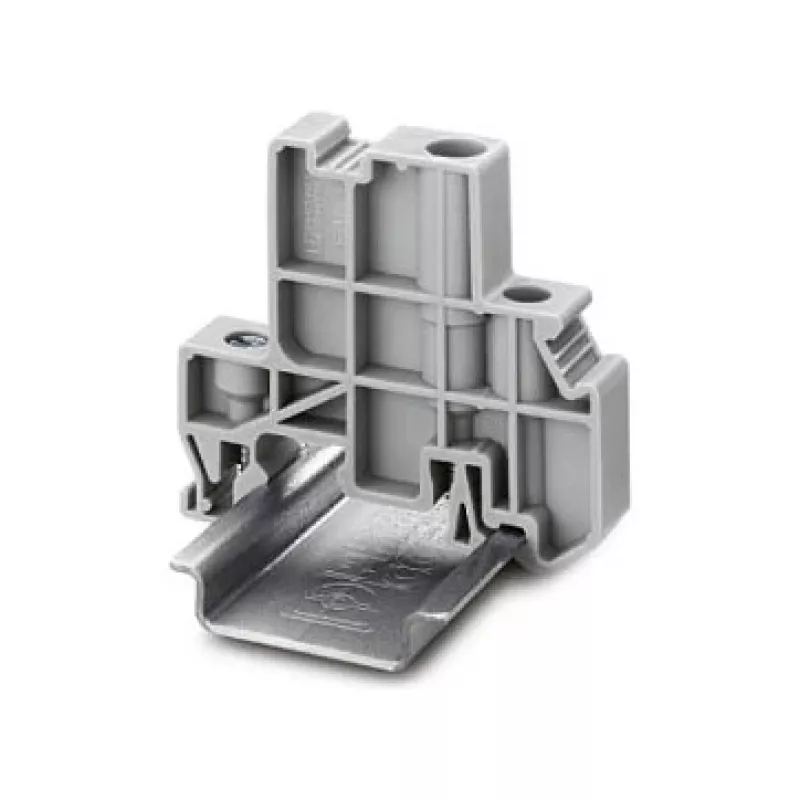

Phoenix 1201413 terminale di chiusura E/UK 1, montaggio su guida DIN, poliammide, grigio, larghezza 9,5 mm

In industrial control panels and building installations, terminal blocks on DIN rails must be securely fixed to prevent movement and maintain electrical isolation. The Phoenix 1201413 End Stop E/UK 1 provides a reliable mechanical stop for CLIPLINE complete terminal blocks on NS 35/7.5 and NS 35/15 DIN rails. Its snap-on mounting requires no tools, and the polyamide construction ensures long-term stability even under vibration.

Key specifications

• Product type: End stop for terminal blocks
• Mounting type: DIN rail mount (snap-on, screwless)
• Compatible rails: NS 35/7.5 and NS 35/15
• Material: Polyamide (PA), gray
• Dimensions: Width 9.5 mm, height 35.5 mm, depth 42.5 mm
• Operating temperature: -60 °C to 105 °C
• Flammability rating: UL 94 V0
• Insulating material group: I
• Approvals: EAC, cULus Recognized, UL Recognized
• Environmental compliance: RoHS compliant
• System compatibility: CLIPLINE complete

Why choose it

This end stop ensures terminal blocks remain firmly fixed on the DIN rail, preventing lateral movement that could compromise connections. The high-quality polyamide offers excellent electrical insulation and mechanical strength, while the wide temperature range suits demanding environments. Its compact width saves space in dense installations.

Ideal use cases

• Securing terminal blocks in control cabinets
• Industrial automation and machinery wiring
• Building installation distribution boards
• Railway and transportation systems
• Any application using CLIPLINE complete terminal blocks

Good to know

The end stop is designed for tool-free installation: simply snap it onto the DIN rail at the end of the terminal block row. It is compatible with standard 35 mm rails and meets stringent safety standards, making it a dependable choice for professional electricians and panel builders.
