Phoenix 3214022 supporto AB-PTI 16/S per morsetti su guida PTI 16/S, grigio, poliammide, V0, RoHS

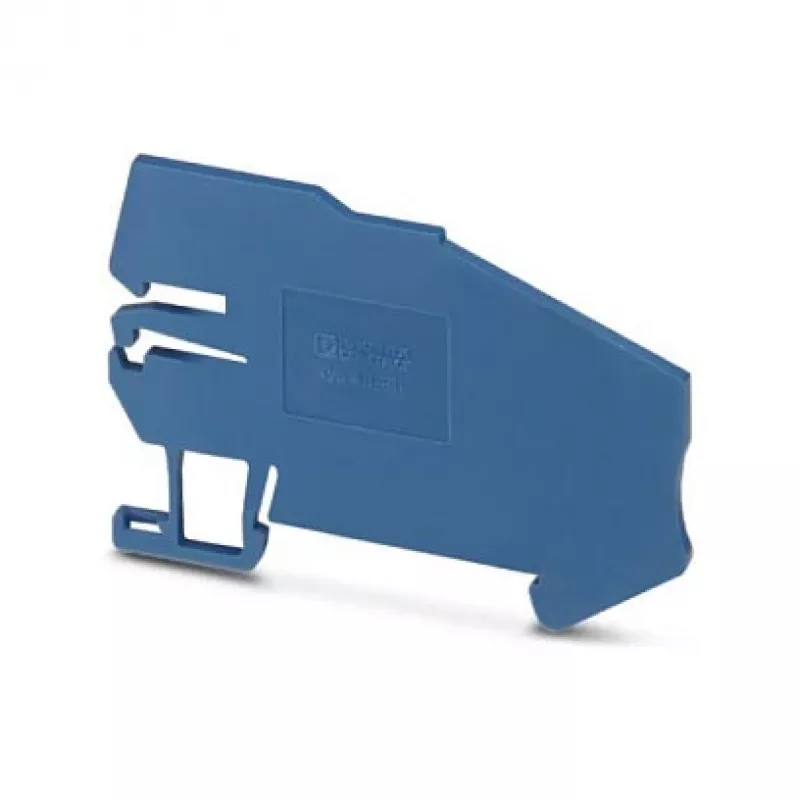

The Phoenix 3214022 Auflagebock AB-PTI 16/S stands out as a purpose-built support bracket that raises and stabilises PTI 16/S terminal blocks on DIN rails. Unlike generic spacers, this accessory is engineered to match the exact footprint of the CLIPLINE complete series, ensuring a seamless fit without additional hardware or modification. Its compact polyamide body delivers reliable mechanical support in industrial electrical installations while maintaining a low profile.

Highlights

• Designed specifically for PTI 16/S terminal blocks
• Raises terminal blocks for improved wiring access and ventilation
• Made of halogen-free polyamide (PA) with UL 94 V0 flammability rating
• Wide operating temperature range from -60 °C to 105 °C
• RoHS and REACH compliant for global environmental standards
• Lightweight at only 1.6 g per piece, yet robust for industrial use

In daily use

Installers appreciate the AB-PTI 16/S for its simple snap-on mounting onto standard DIN rails. Once in place, it provides a stable base that elevates the terminal block, reducing strain on connections and improving cable routing in dense control panels. The grey colour blends with most enclosures, and the insulating material group I (IEC 60664) ensures safe operation even in demanding electrical environments. With a width of just 5.2 mm, it occupies minimal rail space, allowing high-density configurations without sacrificing accessibility.

Full specifications

• Brand: Phoenix Contact
• Model: 3214022
• MPN: 3214022
• EAN: 4046356702201
• Product type: Support bracket
• Series compatibility: PTI 16/S terminal blocks
• Manufacturer series: CLIPLINE complete
• Colour: Grey
• Material: Polyamide (PA)
• Insulating material group: I (IEC 60664)
• Flammability rating: V0 (UL 94)
• Operating temperature range: -60 °C to 105 °C
• Mounting type: Accessory for DIN rail mounted terminal blocks
• Function: Raises and supports terminal blocks
• Width: 5.2 mm
• Length: 29.5 mm
• Height: 10.5 mm
• Weight per piece: 1.6 g
• Number of positions: 1
• Halogen-free: Yes
• Environmental compliance: RoHS, REACH
• Application: Industrial electrical installations

Final note

For reliable elevation and support of PTI 16/S terminal blocks, the Phoenix 3214022 AB-PTI 16/S is the exact-match accessory that ensures mechanical stability and long-term performance in industrial control systems.
