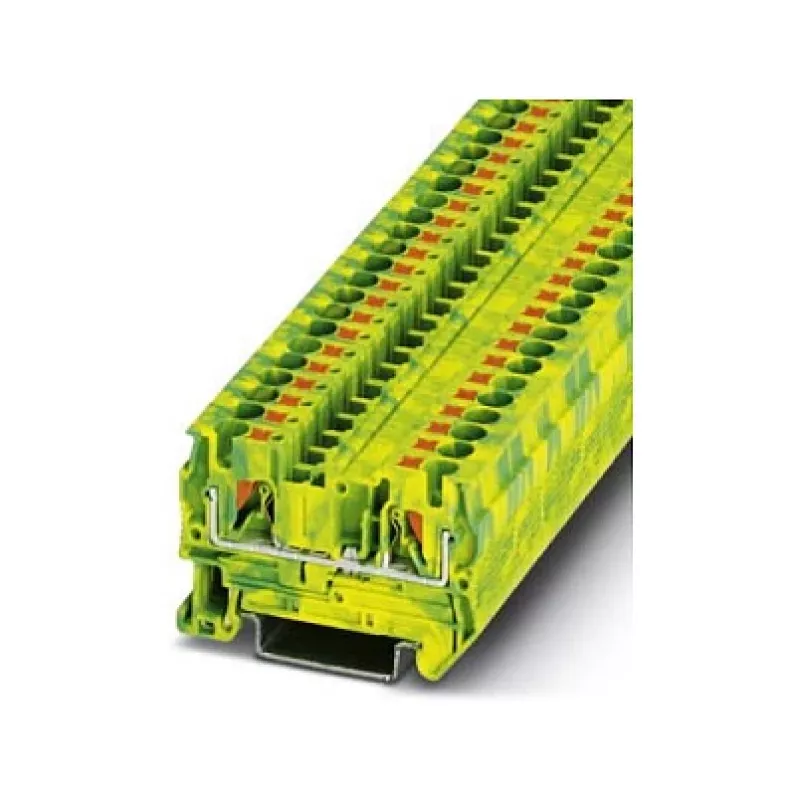

Phoenix Contact PT 4-PE morsetto di protezione, Push-in, 4 mm², verde-giallo

Protective conductor terminal block with push-in connection technology, designed for reliable grounding in industrial control panels and distribution systems. The PT 4-PE provides a secure, tool-free connection for solid and stranded conductors up to 4 mm², ensuring low contact resistance and high mechanical retention. Its green-yellow housing clearly identifies the PE function, while the compact design saves space on the DIN rail.

Advantages

Push-in termination reduces wiring time by up to 50% compared to screw connections. The terminal accepts conductors from 0.2 to 6 mm² (solid) and 0.2 to 4 mm² (stranded), with a stripping length of 8–10 mm. The polyamide housing meets UL 94 V0 flammability standards and operates reliably from -60 °C to 105 °C. Short-circuit current rating of 400 A (1 s) and surge voltage rating of 8 kV ensure safety in demanding applications.

Suitable for

• Grounding and protective earth connections in industrial control cabinets
• Building automation and power distribution systems
• Machinery and equipment requiring reliable PE termination
• Applications with frequent wiring changes or maintenance

Key specifications

• Connection technology: Push-in
• Nominal cross section: 4 mm²
• Number of connections: 2
• Number of positions: 1
• Mounting type: DIN rail NS 35/7.5 or NS 35/15
• Wire size range: 0.2–6 mm² solid (AWG 24–10), 0.2–4 mm² stranded (AWG 24–10)
• Stripping length: 8–10 mm
• Insulating material: Polyamide (PA), UL 94 V0
• Operating temperature: -60 °C to 105 °C
• Short-circuit current: 400 A (1 s, with 4 mm² conductor)
• Rated surge voltage: 8 kV
• Approvals: UL, cUL, VDE, EAC, KEMA-KEUR

Recommendations

For optimal performance, use with Phoenix Contact end brackets and marking accessories. Ensure proper torque for DIN rail mounting and verify conductor insertion depth using the integrated test point. Pair with other PT series terminal blocks for a uniform, space-efficient installation.
