Pompa sommersa Gardena 6100/5 inox

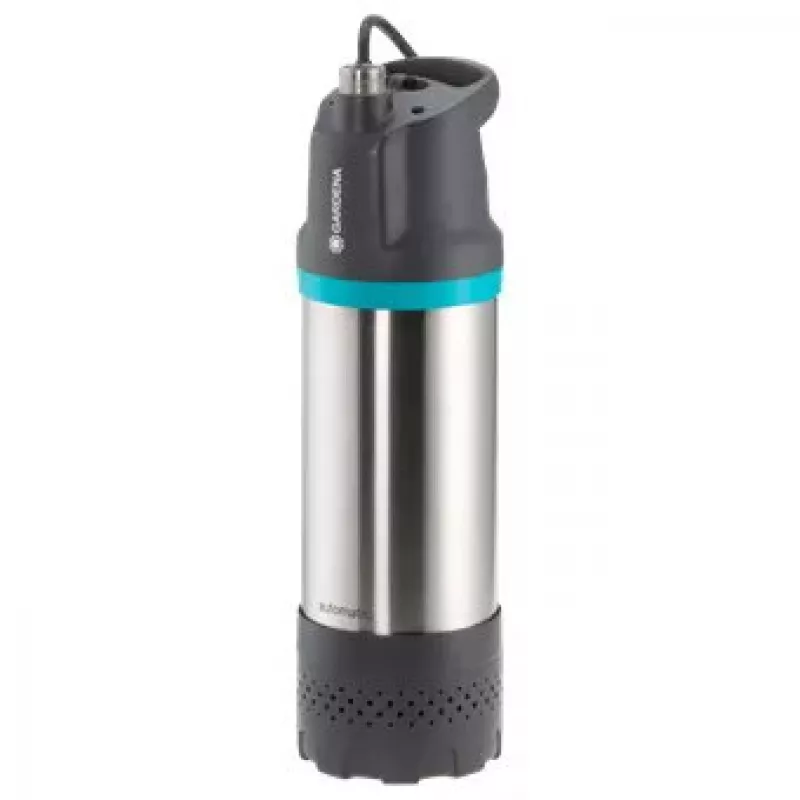

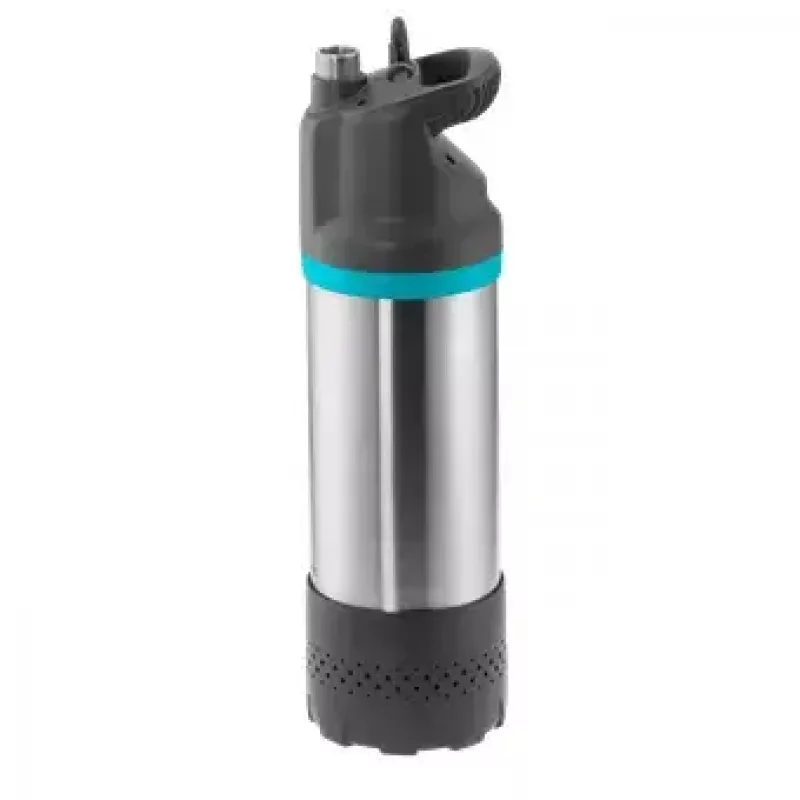

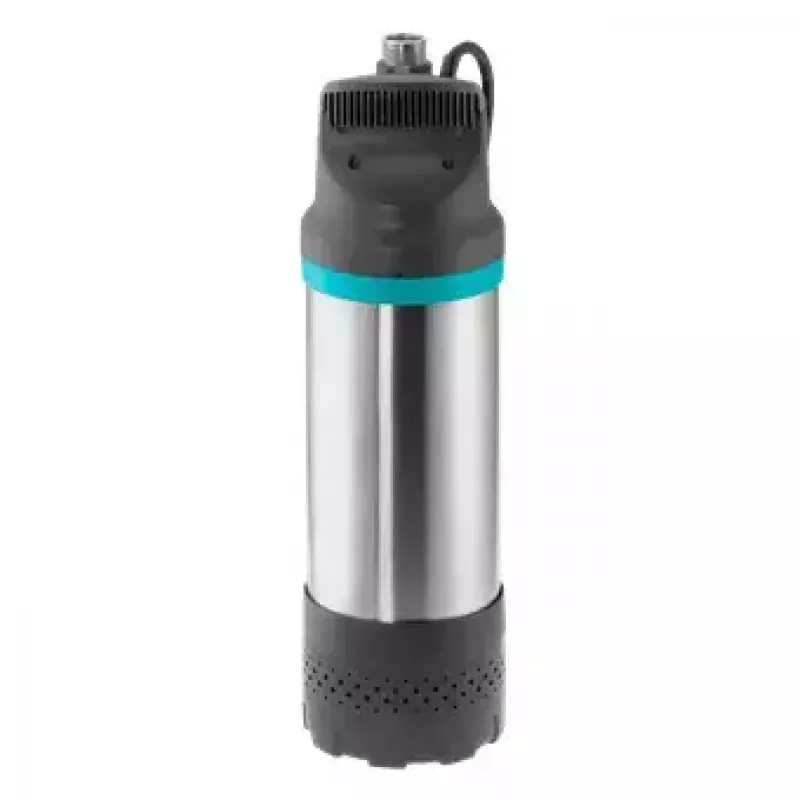

The GARDENA Submersible Pump 6100/5 Inox is a powerful and reliable stainless-steel submersible pressure pump designed for automatic water supply in homes and gardens. With a 1100 W motor, it delivers up to 6100 litres per hour and generates a maximum pressure of 4.7 bar. The robust stainless-steel housing and components ensure long-term durability, while the integrated fine mesh filter and optional floating suction make it suitable for use in wells, cisterns and rainwater tanks. The pump includes an automatic start/stop function, leakage detection and dry-run protection for safe, energy-efficient operation.

Advantages

The pump provides high pumping performance with comparatively low power consumption due to its automatic operation that starts when water is required and stops when it is not. Built-in safety features—dry-running prevention, leakage detection and a non-return valve—protect the unit and the installation. Its compact diameter (149 mm) allows use in narrow wells from 150 mm, and the long cables (20 m power cable, 23 m fastening rope) enable flexible placement down to a maximum immersion depth of 17 m. The removable stainless-steel fine filter is easy to clean and helps prevent clogging.

Suitable for

• Pumping ground, well and rainwater for garden irrigation
• Automatic domestic water supply to appliances (washing machines, taps) and irrigation systems
• Operating multiple sprinklers simultaneously (up to four sprinklers)
• Emptying cisterns, basements or pools where stainless-steel construction is required

Key specifications

• Power: 1100 W
• Maximum delivery rate: up to 6100 l/h
• Maximum pressure: 4.7 bar
• Maximum immersion depth: 17 m
• Diameter: 149 mm (suitable for wells from 150 mm)
• Power supply: 230 V / 50 Hz
• Power cable length: 20 m
• Fastening rope length: 23 m
• Material: stainless steel housing, shaft and connection thread
• MPN: 01773-20; EAN: 4078500047920

How to use

Lower the pump into the water using the fastening rope and connect it to a grounded 230 V power outlet using the 20 m cable. Ensure the pump is placed vertically and that the fine mesh filter is fitted. For cisterns with sediment, remove the filter and attach the separately available floating suction kit. When water is drawn the automatic function starts the pump; it will stop automatically when demand ends. Regularly check the filter and clean it if necessary to maintain performance.

Recommendations

Register the product within three months at www.gardena.com/registration to extend the warranty to five years. Use the pump with suitable hose connections and consider a pressure controller or irrigation computer for fully automatic garden irrigation.
