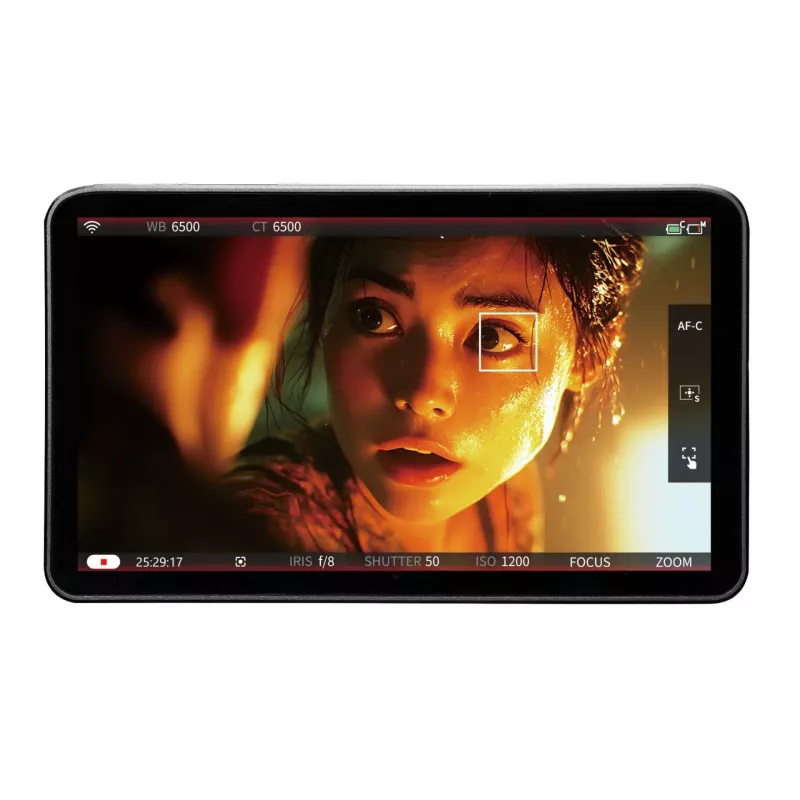

Portkeys LS7P Monitor touchscreen 7" 2200nit con 3G-SDI e HDMI

The Portkeys LS7P is a professional 7-inch on-camera monitor designed for filmmakers and videographers who demand high brightness, accurate color, and advanced monitoring tools. With a stunning 2200 cd/m² brightness, it ensures clear visibility even in direct sunlight, making it ideal for outdoor shoots. The IPS LCD panel delivers 1920x1200 resolution, 1000:1 contrast ratio, and 178° viewing angles, while 10-bit (8+2 FRC) color depth provides smooth gradients and accurate color reproduction.

Advantages

Ultra-bright 2200nit display ensures outdoor usability. Touchscreen interface allows intuitive menu navigation and focus control. Dual NP-F battery plates enable hot-swap power for extended shooting. 3D LUT support via USB-A for custom color grading. Robust aluminum alloy construction withstands rigors of production.

Suitable for

• Professional videographers and cinematographers
• Outdoor and studio camera monitoring
• Focus pullers and camera assistants
• Live event and broadcast production

Key specifications

• Screen Size: 7 inches
• Resolution: 1920x1200
• Brightness: 2200 cd/m²
• Contrast Ratio: 1000:1
• Viewing Angle: 178° (H/V)
• Color Depth: 10-bit (8+2 FRC)
• Touchscreen: Yes
• Video Input: 1x HDMI Type A, 1x 3G-SDI
• Video Output: 1x HDMI Type A, 1x 3G-SDI
• Audio Output: 1x 3.5mm Headphone Jack
• Power Input: DC 7-24V (Barrel), USB-C (5V/2A)
• Battery Plate: Dual NP-F Series (L-series)
• Power Consumption: Approx. 16W
• LUT Support: 3D LUTs via USB-A
• Monitoring Tools: Waveform, Vectorscope, Histogram, Peaking, False Color, Zebra, Anamorphic De-squeeze
• Construction Material: Aluminum Alloy
• Mounting Options: 3x 1/4"-20 Thread

Recommendations

The Portkeys LS7P is a reliable and feature-rich monitor that offers exceptional brightness and professional monitoring tools at a competitive price. Ideal for filmmakers who need a durable, high-performance on-camera monitor.
