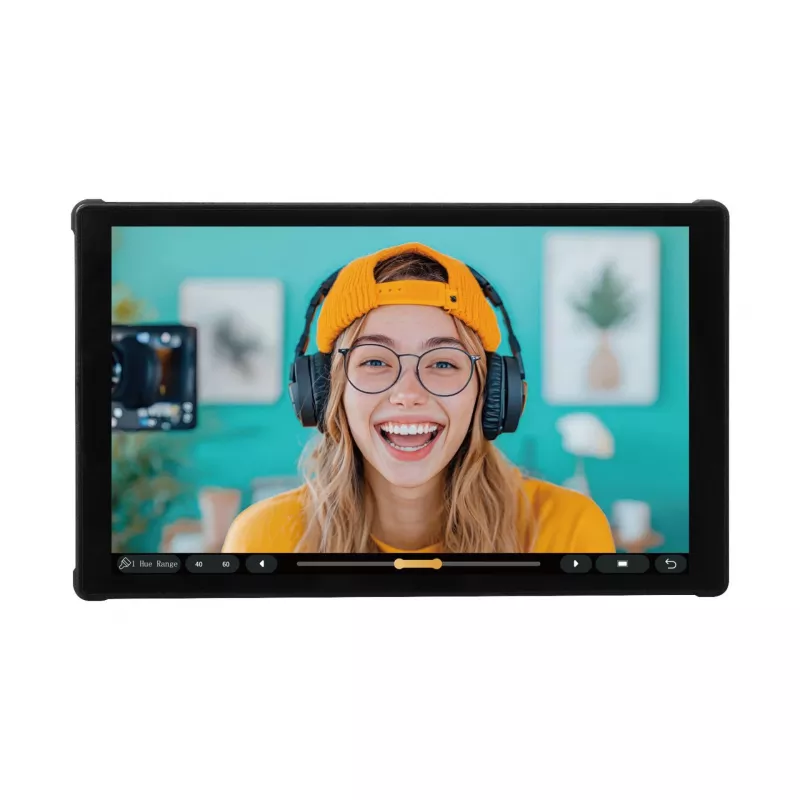

Portkeys PT5 III Monitor IPS LCD 5" con touchscreen, 1920x1080, 500 cd/m²

The Portkeys PT5 III is a professional 5-inch IPS LCD monitor designed for filmmakers and content creators who demand accurate monitoring in a compact form factor. With a Full HD resolution of 1920x1080, 500 cd/m² brightness, and a 1000:1 contrast ratio, this monitor delivers crisp, vibrant images. The touchscreen interface provides intuitive control over advanced monitoring tools, including 3D LUT support, waveform, vectorscope, histogram, false color, peaking, zebras, grids, and anamorphic de-squeeze. It features dual HDMI 2.0 ports for input and output, a 3.5mm headphone jack, and flexible power options via DC 7-24V or USB-C. Compatible with Sony NP-F series batteries, the PT5 III is ideal for on-the-go shooting.

Advantages

Compact and lightweight design with a bright 500 cd/m² IPS display ensures clear visibility even in outdoor conditions. The touchscreen simplifies menu navigation and tool activation. Dual HDMI ports allow loop-through monitoring, and the wide 7-24V DC input range accommodates various power sources. The monitor supports 4K input signals (up to 4K DCI 24Hz or 4K UHD 30Hz) and includes professional monitoring features typically found in larger field monitors.

Suitable for

• DSLR and mirrorless camera operators needing a compact external monitor
• Gimbal and drone pilots requiring a lightweight, battery-powered display
• Studio and field videographers who need accurate color and exposure tools
• Content creators using 4K cameras with HDMI output

Key specifications

• Display: 5-inch IPS LCD, 1920x1080, 500 cd/m², 1000:1 contrast, 8-bit color, 178° viewing angle
• Touchscreen: Yes
• Video Input/Output: 1x HDMI 2.0 Type A input, 1x HDMI 2.0 Type A output
• Audio Output: 1x 3.5mm headphone jack
• Power Input: DC 7-24V, USB-C 5V/2A
• Battery Compatibility: Sony NP-F series
• Max Input Resolution: 4K DCI (4096x2160) @ 24Hz, 4K UHD (3840x2160) @ 30Hz
• Monitoring Features: 3D LUT, waveform, vectorscope, histogram, false color, peaking, zebras, grids, anamorphic de-squeeze
• Construction: ABS plastic
• Mounting: 1/4"-20 thread
• Power Consumption: 6W

Recommendations

For best performance, use a Sony NP-F series battery or a regulated DC power source. The monitor is compatible with most cameras that output HDMI. Ensure your camera's HDMI output is set to a supported resolution.
