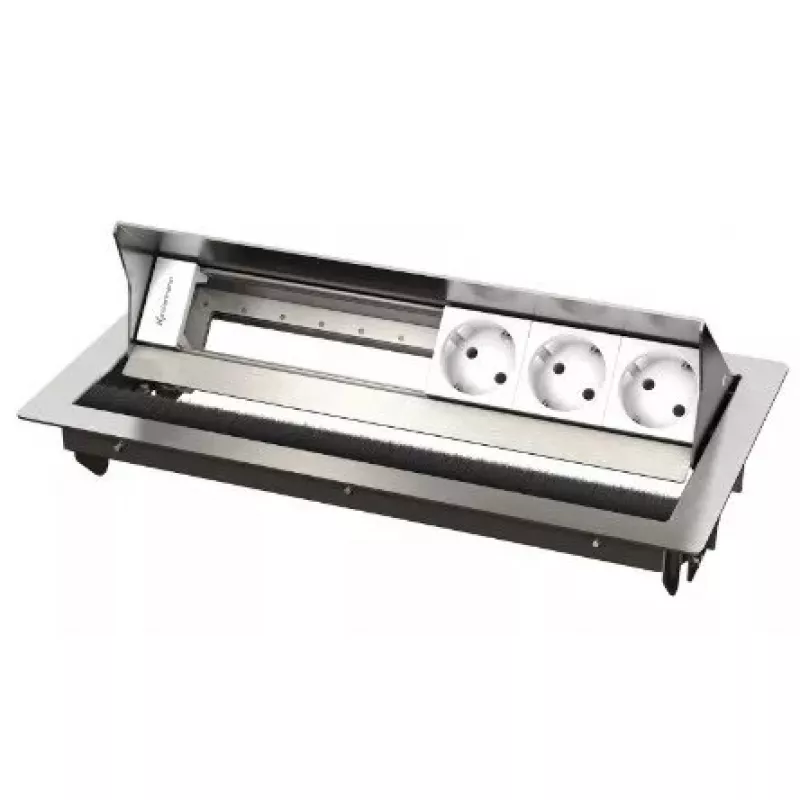

Presa da tavolo tipo F Kindermann 7492000063

The Kindermann 7492000063 outlet box is a stainless steel desktop casing for six insets, pre-mounted with three mains sockets and three empty modules. It is supplied with adapter plates of the Konnect flex 45 series for individual configuration, and its compact dimensions and integrated design are intended for neat desktop cable management and reliable mains connection.

Advantages

Quick installation is enabled by a click mechanism and the unit offers a homogeneous appearance through level-mounted interfaces. The casing is compatible with media controls, USB chargers and similar modules, allows easier mounting from above into desktops and supports level-mounted integration. The housing accepts desktops up to 40 mm thick and features an installation depth of 65 mm with mains connection via a 3-pin GST 18 plug.

Suitable for

Key specifications

How to use

Cut a mounting opening in the desktop according to the unit dimensions and insert the outlet box from above. Secure the casing using the click mechanism for quick mounting and connect the mains supply with the included 3-pin GST 18 plug. Fit required modules or adapter plates from the Konnect flex 45 series into the empty module positions to configure sockets, media controls or USB chargers as needed.

Recommendations

Install the unit in desktops up to 40 mm thick and ensure the 65 mm installation depth is available below the desktop. Plan module configuration before installation and verify compatibility of additional modules (media controls, USB chargers) with the Konnect flex 45 adapter plates.
