Presa di rete RJ-45 Metz Connect 1309300301-E cavo di rete Cat. 6a bianca

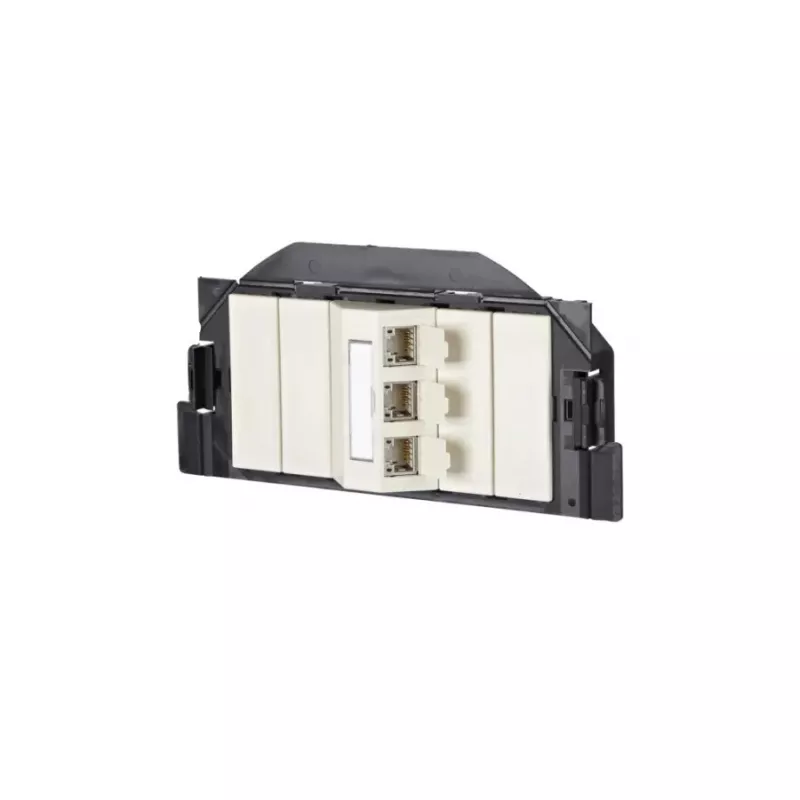

The Metz Connect 1309300301-E is a white RJ-45 socket-outlet designed for mounting in underfloor service outlets. It is compatible with OBO Bettermann (Ackermann) underfloor service outlets and some types of Hager (Electraplan Solutions). The termination unit uses a GB2 design with an E-DAT module and includes a module frame, caps and dummy covers. The device casing is black with pearl white covers and the module plug is oriented 45° upwards. A label window for enclosed identification labels is provided; label sheets (209 x 294 mm) are available as accessory.

Advantages

This socket-outlet is component-tested for Cat.6A to multiple standards (ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09, TIA/EIA-568-C.2 (2009-08) and IEC 60603-7-51 Ed.1 (12/2008)) and certified to GHMT, providing compliance with class EA and link testing up to 500 MHz. It supports 10 Gbit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE+ and UPoE) and HDBaseT. Integrated dust protection covers (including colored options) and clear conductor marking for T568A or T568B simplify installation and maintenance.

Suitable for

• Underfloor service outlet installations in offices and commercial buildings
• Cat 6a structured cabling for 10 Gbit Ethernet
• Power over Ethernet deployments (PoE, PoE+, UPoE)
• HDBaseT video and AV distribution

Key specifications

• Product: Socket-outlet RJ-45 Metz Connect 1309300301-E
• Category: Cat.6A, Class EA
• Standards / Tests: ISO/IEC 11801 Ed.2.2, DIN EN 50173-1, TIA/EIA-568-C.2, IEC 60603-7-51; GHMT certified
• Frequency / Link test: up to 500 MHz
• Supports: 10 Gbit Ethernet (IEEE 802.3an), PoE / PoE+ / UPoE, HDBaseT
• Connection: BTR 8-fold IDC for 2–4 pair data lines AWG 26/1–22/1 and stranded AWG 26/7–22/7
• Conductor assignment: T568A or T568B
• Orientation: module plug 45° upwards
• Colour: black casing, pearl white covers
• Includes: module frame, caps, dummy covers, label window

How to use

Mount the termination unit into the compatible underfloor service outlet (OBO Bettermann / select Hager Electraplan types) and secure the module frame. Terminate network cables using the BTR 8-fold insulation displacement connectors (IDC) following the chosen wiring scheme (T568A or T568B). Ensure stranded or solid conductors are within the supported AWG range and route the module plug at the 45° upward orientation. Fit the caps or dummy covers as required and insert identification labels into the label window.

Recommendations

For reliable Cat 6a performance and 10 Gbit Ethernet links, use certified Cat 6a cabling and perform a professional link test after installation; keep the integrated dust protection covers closed when not in use to protect contacts.
