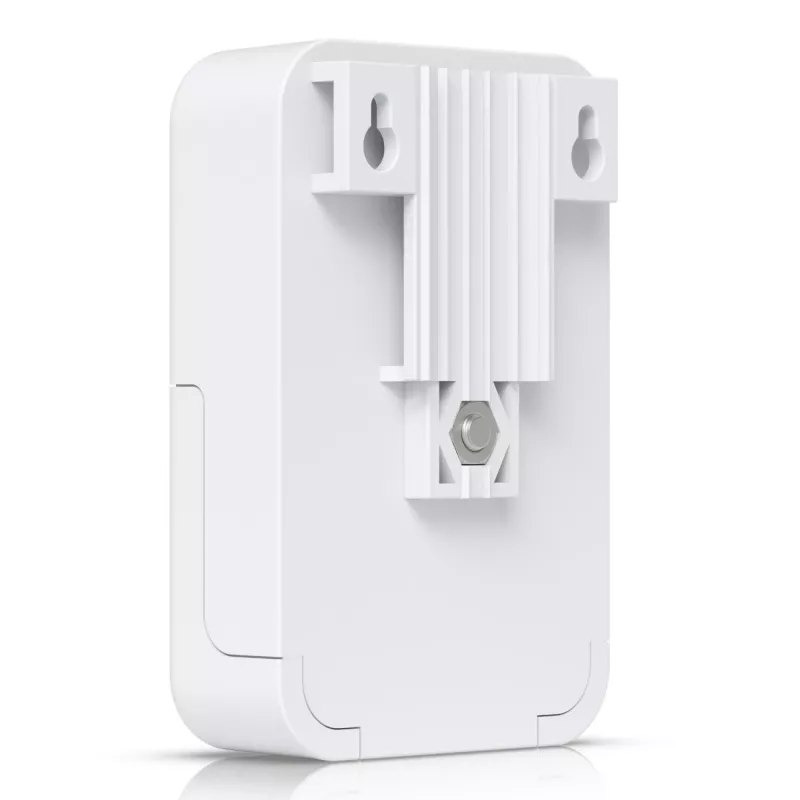

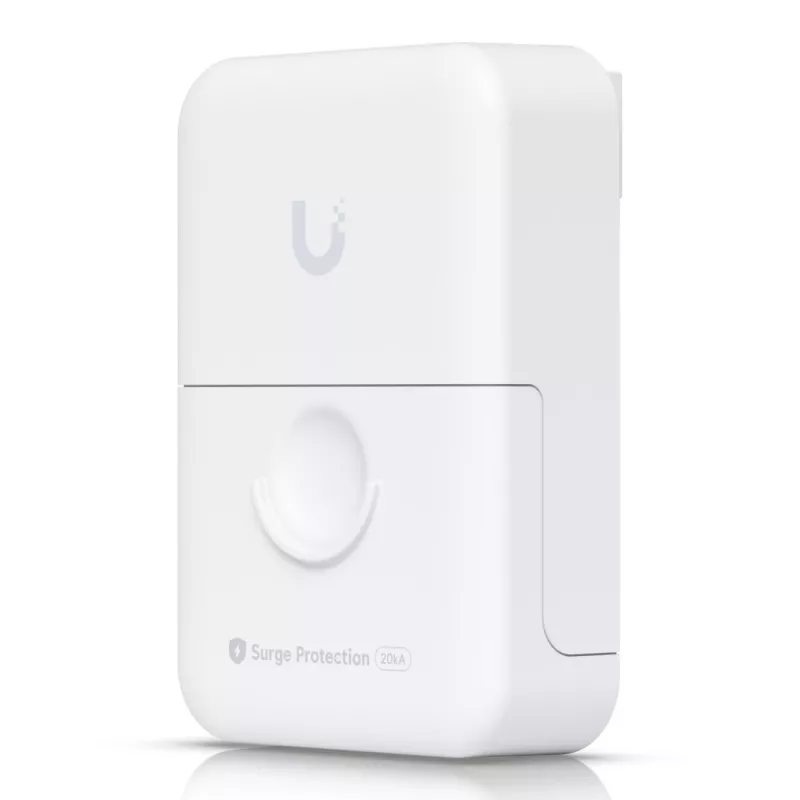

Protezione da sovratensione Ethernet UBIQUITI UACC-ETH-SP-Pro — 10 Gbit/s, 600 V, policarbonato, bianco

Ubiquiti UACC-ETH-SP-Pro is an Ethernet surge protector designed for use in outdoor high-speed networks. It protects network equipment such as switches and routers from voltage spikes while supporting data transfer rates up to 10 Gbit/s. The device features a polycarbonate white housing with compact dimensions and is suitable for commercial and residential installations where line protection is required.

Advantages

The protector provides surge protection for outdoor Ethernet devices with discharge capability up to 20 kA and accepts a maximum voltage on the data side of 600 V. It uses two passive, surge-protected RJ45 connections, is compatible with 10 GbE networks, and offers quick and simple installation in the field. The compact polycarbonate enclosure is lightweight and suited to exposed network points.

Suitable for

• Protecting outdoor Ethernet switches and routers
• Shielding network endpoints in commercial and residential installations
• Use on 10 GbE links and other high-speed Ethernet connections
• Line protection for equipment exposed to electrical transients

Key specifications

• Data rate: up to 10 Gbit/s
• Maximum voltage on data side: 600 V
• Surge discharge capability: up to 20 kA

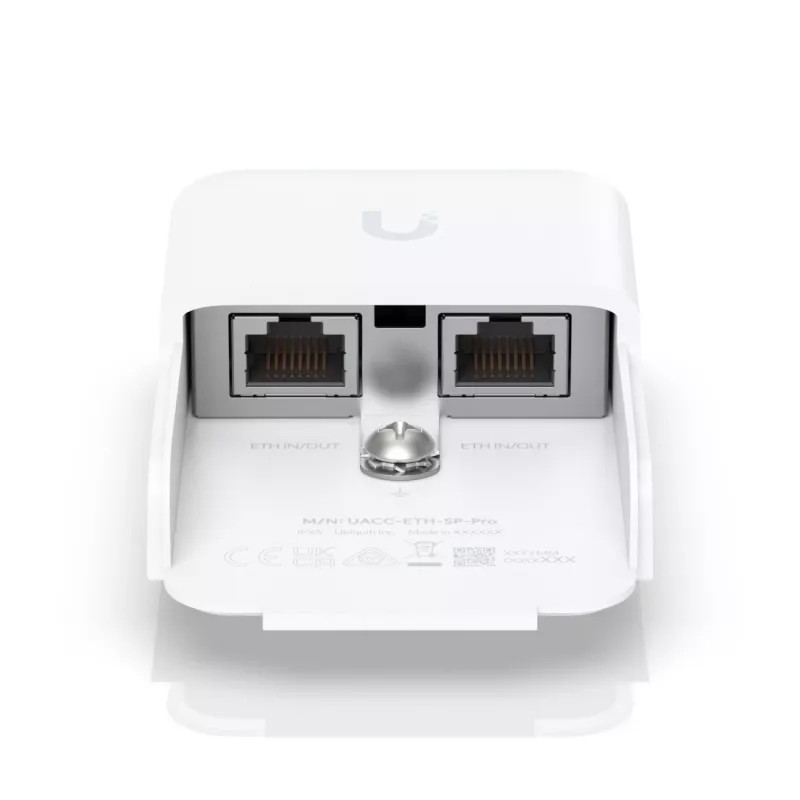

• Connections: two surge-protected RJ45 ports
• Enclosure material: polycarbonate, color: white
• Dimensions: 61 × 32.5 mm
• Weight: 95 g

How to use

Install the surge protector inline with the Ethernet cable between the outdoor network point and the protected device, connecting each RJ45 port according to the network cabling. Ensure proper grounding as required for surge protection systems and place the unit in a location where the enclosure remains dry and mechanically secure. Follow standard Ethernet installation practices and confirm link integrity after installation.

Recommendations

Use the device as part of a comprehensive grounding and surge protection strategy; verify compatibility with your network's shielding and grounding scheme and perform periodic inspections after severe weather or electrical events.
