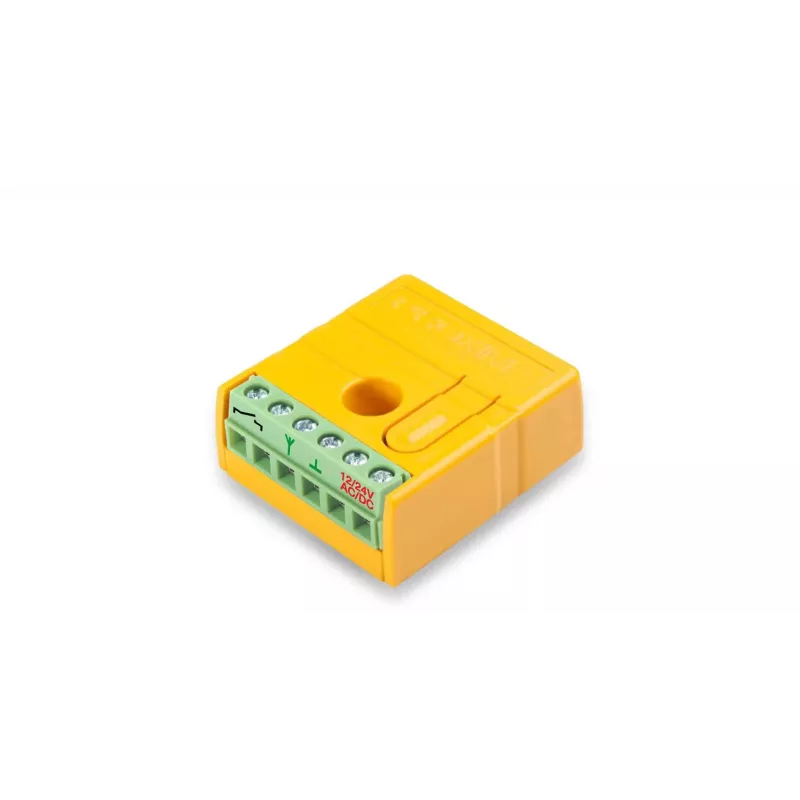

Proxima NW1 AT4 controller/ricevitore radio (CAME ATOMO, TOP RBN/RBS)

The Proxima NW1 AT4 is a single-channel controller/radio receiver powered by 12–24V AC/DC. It works with CAME ATOMO and TOP RBN/RBS remote controls using rolling code technology, and may be compatible with remotes from other manufacturers based on the KeeLoq 433.92MHz system. The receiver allows programming a combination of remote buttons to the channel and is designed for controlling various gate drives and more.

Key features

• Single-channel receiver
• Rolling code operation with CAME ATOMO and TOP RBN/RBS remotes
• May be compatible with other manufacturers' remotes based on KeeLoq 433.92MHz
• Channel button combination programming
• Channel modes: monostable (1–999 seconds), bistable, TDJN (as long as you press)
• Not compatible with CAME SPACE system

Specifications

• Brand: Proxima
• MPN: NW1 AT4
• Power supply: 12–24V AC/DC
• Current consumption: 15mA
• Outputs: 1 channel / 24V-1A NO relay
• Number of remotes: 999* remotes 433.92MHz
• Dimensions: 37 x 41 x 15mm (hole 4/8 mm)
• Weight: 23g
