Proxima PMA fotocellule antincollisione (TX+RX) 15m raggio IR

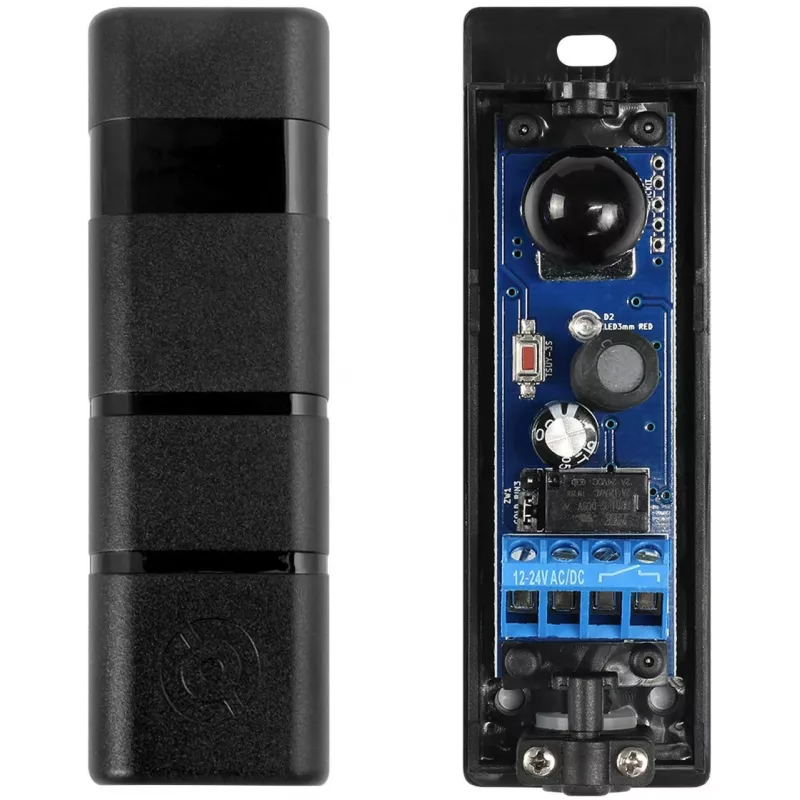

The Proxima PMA Anti-Collision Photocells are a reliable safety solution for gate automation, barriers, and doors. This set includes a transmitter (TX) and receiver (RX) with modulated infrared detection technology, ensuring precise and secure operation. With a maximum detection range of 15 meters and a fast response time of less than 20 ms, these photocells provide effective anti-collision protection. The IP44 rating makes them suitable for outdoor use, while the ABS plastic housing ensures durability. Easy surface mount installation and LED alignment indicator simplify setup.

Advantages

Enhanced safety with anti-collision function; reliable modulated IR technology; easy alignment via LED indicator; durable ABS housing with IP44 protection; versatile power supply (12-24V AC/DC).

Suitable for

• Gate automation systems
• Barriers and access control
• Automatic doors
• Industrial safety applications

Key specifications

• Detection Technology: Modulated Infrared (IR)
• Max. Detection Range: 15 meters
• Power Supply: 12-24V AC/DC
• Current Consumption (TX+RX): ~40 mA
• Output Type: Relay (NO/NC contacts)
• Relay Contact Rating: 1A / 30V DC, 0.5A / 120V AC
• Operating Temperature: -20°C to +60°C
• Ingress Protection: IP44
• Response Time: < 20 ms
• Beam Synchronization: Yes
• Alignment Indicator: Yes (LED)
• Housing Material: ABS Plastic
• Mounting Type: Surface Mount
• Number of Beams: 1 (single beam)
• Set Includes: Transmitter (TX) and Receiver (RX)

Recommendations

For optimal performance, ensure proper alignment during installation. Suitable for use with compatible gate controllers and safety systems. Regularly check for obstructions and clean the lenses.
