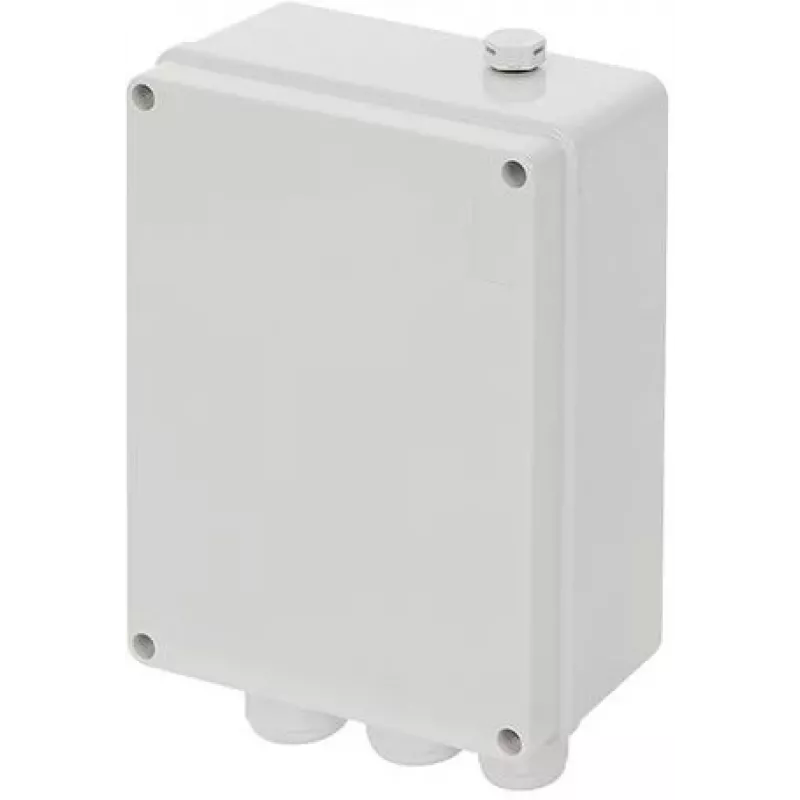

PULSAR SFG64H switch PoE unmanaged 6 porte, 4x PoE 10/100Mbps, 2x uplink, 60W, IP56, montaggio a parete

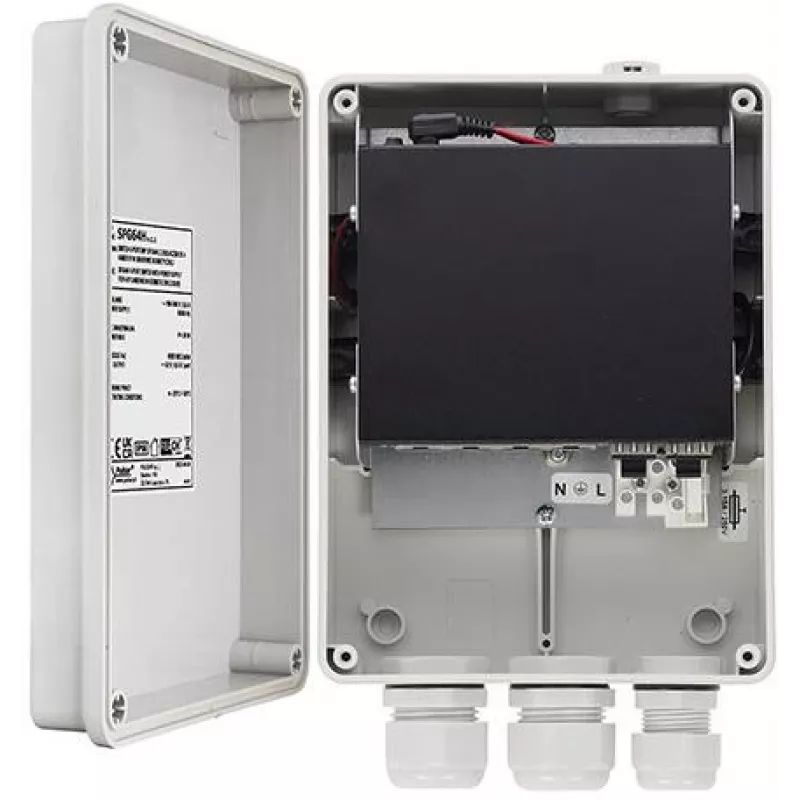

The PULSAR SFG64H is a rugged, unmanaged PoE switch designed for outdoor and industrial environments. With 4 PoE+ ports (30W per port, 60W total budget) and 2 uplink ports, it provides reliable power and data connectivity for IP cameras, access points, and other PoE devices. The IP56-rated powder-coated steel enclosure ensures protection against dust and water jets, making it ideal for wall-mount installations in harsh conditions.

Advantages

Robust IP56 housing for outdoor use; plug-and-play unmanaged operation; high PoE budget of 60W; wide operating temperature range from -25°C to +50°C; comprehensive protection against short circuits, overload, overvoltage, and undervoltage.

Suitable for

• Outdoor surveillance systems
• Industrial Ethernet networks
• Remote PoE device deployment
• Wall-mount installations in demanding environments

Key specifications

• Total Ethernet Ports: 6
• PoE Ports: 4x 10/100Mbps (IEEE 802.3af/at)
• Uplink Ports: 2x 10/100Mbps
• Max PoE Power per Port: 30W
• Total PoE Power Budget: 60W
• Enclosure Rating: IP56
• Enclosure Material: Powder-coated steel
• Input Voltage: 230V AC, 50Hz
• Switching Capacity: 1.2 Gbps
• Forwarding Rate: 0.89 Mpps
• MAC Address Table Size: 1K
• Operating Temperature: -25°C to +50°C
• Humidity: 10% to 90% RH (non-condensing)
• Mounting Type: Wall-mount
• Protection Features: SCP, OLP, OVP, UVP
• Management Type: Unmanaged
• LED Indicators: Power, Link/Act, PoE Status

Recommendations

For optimal performance, use shielded Ethernet cables in high-interference environments. Ensure proper grounding and follow local electrical codes during installation.
