Quadro di distribuzione elettrico Legrand 601981 larghezza 340 mm profondità 141 mm altezza 282 mm

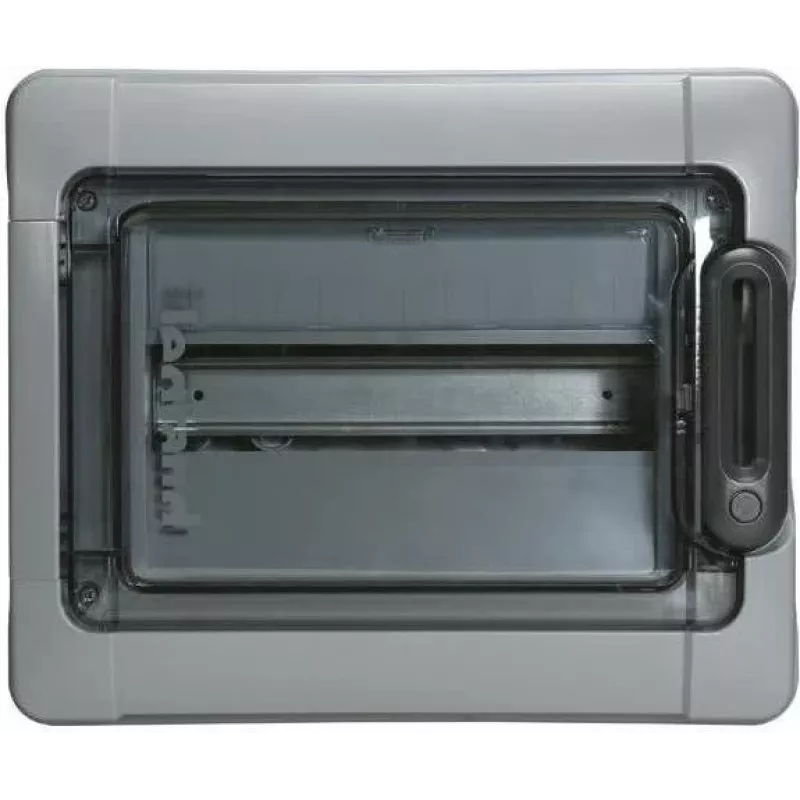

The Legrand 601981 electrical distribution board is designed to provide reliable and compact power distribution for residential and light commercial installations. With a width of 340 mm, depth of 141 mm and height of 282 mm, the unit fits into constrained spaces while allowing organized arrangement of circuit breakers and protective devices. The enclosure ensures safe separation of live components and provides a practical interface for wiring and maintenance.

Advantages

This distribution board combines a space-saving footprint with robust construction suitable for indoor electrical panels. Its dimensions enable installation in utility closets, service rooms or behind access panels where larger enclosures would be impractical. The product supports straightforward wiring and grouping of circuits, helping to keep installations tidy and accessible for inspection and servicing.

Suitable for

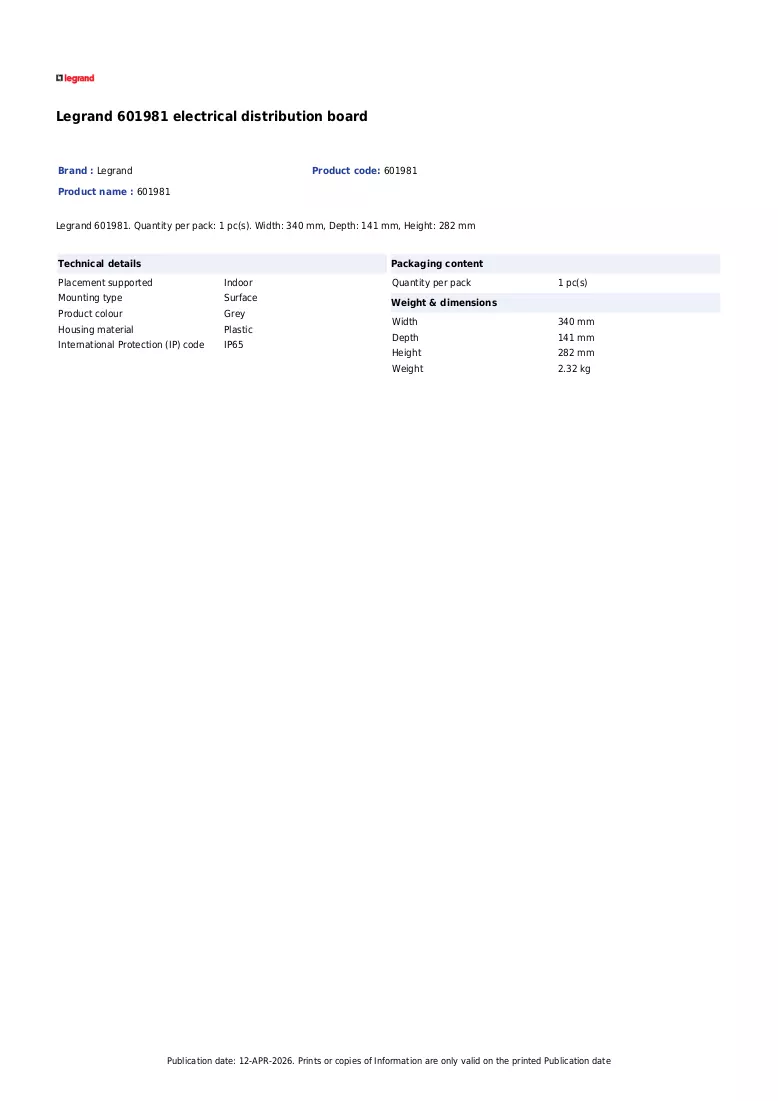

Key specifications

How to use

Install the distribution board on a suitable flat surface using appropriate fasteners and according to local electrical codes. Mount modular DIN rails and install circuit breakers or protective devices as required by the electrical design. Route incoming supply and outgoing circuit wiring through the designated knockouts or cable entries, and secure conductors to terminals following correct torque and polarity. Ensure the enclosure is properly earthed and the front cover is closed after wiring to maintain safe operation.

Recommendations

Commissioning and any modifications should be performed by a qualified electrician. Verify compatibility of installed breakers and protective devices with system voltage and current ratings. Maintain clear access to the panel and periodically inspect terminals for tightness and signs of overheating.
